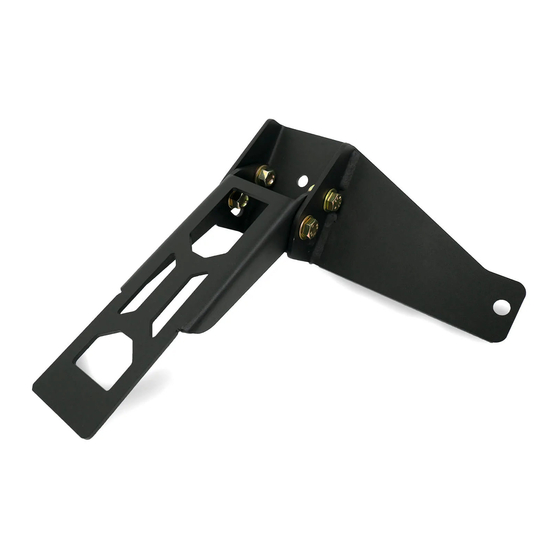

Dead Pedal
2018+ JL/JT
STJL-03
TOOLS
REQUIRED
- 18mm Socket
- 18mm Wrench
- 13mm Socket
- 12" Socket Extension Recommended
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Intermediate
- 1 persons
Little skill level required, you can
easily install it by yourself.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DV8 STJL-03
Summary of Contents for DV8 STJL-03
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (4) M12x25mm Bolts (4) M12 Nuts (4) M12 Split Washers (8) M12 Flat Washers STEP Assemble dead pedal using the...
- Page 3 INSTALLATION MANUAL STEP Under the dash on the driver side, remove the two 13mm nuts located on each side of the brake pedal. STEP Mount the dead pedal to the two screws and reinstall both 13mm nuts and secure tightly. STEP Once you have adjusted the dead peddle to your preference tighten all...
- Page 4 INSTALLATION MANUAL STEP Double check all hardware is secured tightly. 855-680-9595 NEED HELP?
