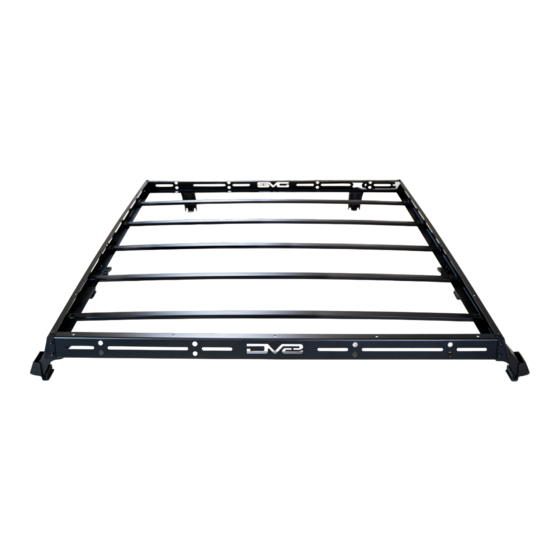

JK 4 DOOR HALF
ROOF RACK
2007-2018 JEEP WRANGLER
TOOLS
REQUIRED
- 4mm Allen head
- 10mm wrenches
- Flat Head Screw Driver
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily assemble it by yourself
however, additional help will be
needed for install
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 JK 4
Summary of Contents for DV8 JK 4
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP 1 Begin by unpacking all items and inspect- ing for missing pieces or damage. If you have any concerns, please contact the com- pany the product was purchased from. HARDWARE INCLUDED (42) M6x14mm Bolts (8) M6x20 Bolts (80) M6 Flat Washers (46) M6 Nuts (58) M6 Split Washer...
- Page 3 INSTALLATION MANUAL STEP 3 Once roof rack is assembled, install side feet onto rack using a 10mm wrench and #4 allen head with M6x14 hardware. NOTE: Do not tighten feet until rack is on Jeep to allow for adjustment. STEP 4 Moving to the vehicle, with a flathead screw driver, pop off the rear window hinge covers.
- Page 4 INSTALLATION MANUAL STEP 6 Assemble the rear rack brackets as shown in the image. These will use the M6x20 hard- ware and will require the 10mm wrench and #4 allen head. Slide bracket between the factory hardtop and the rear window hinge and tighten until secure.
- Page 5 INSTALLATION MANUAL STEP 8 Place the provided rubber trim on each foot and set back into rain gutter. Using the provided foam, place them on feet clamps as shown. STEP 9 Install all the clamps onto each foot, and using a #4 allen and the M6x25 hardware. Leave loose for adjustment.
- Page 6 INSTALLATION MANUAL STEP 11 For the tightening down process, using your #4 allen head, tighten the very front brackets first until the foot is seated into the rain gutter and the rack is secure. NOTE: Do not over tighten since this can damage your hardtop.
- Page 7 INSTALLATION MANUAL STEP 14 Tighten all feet to the rack. By doing this last, it will allow feet and rack to move as needed while securing all feet. Reinstall factory plastic hinge caps. Double check fitment and that all hardware is secure.
