DV8 FBJL-02 Product Installation Manual

2018+ jl/jt premium modular front bumper

Advertisement

Quick Links

FBJL-02
2018+ JL/JT Premium Modular Front Bumper

Advertisement

loading
Need help?

Need help?

Do you have a question about the FBJL-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DV8 FBJL-02

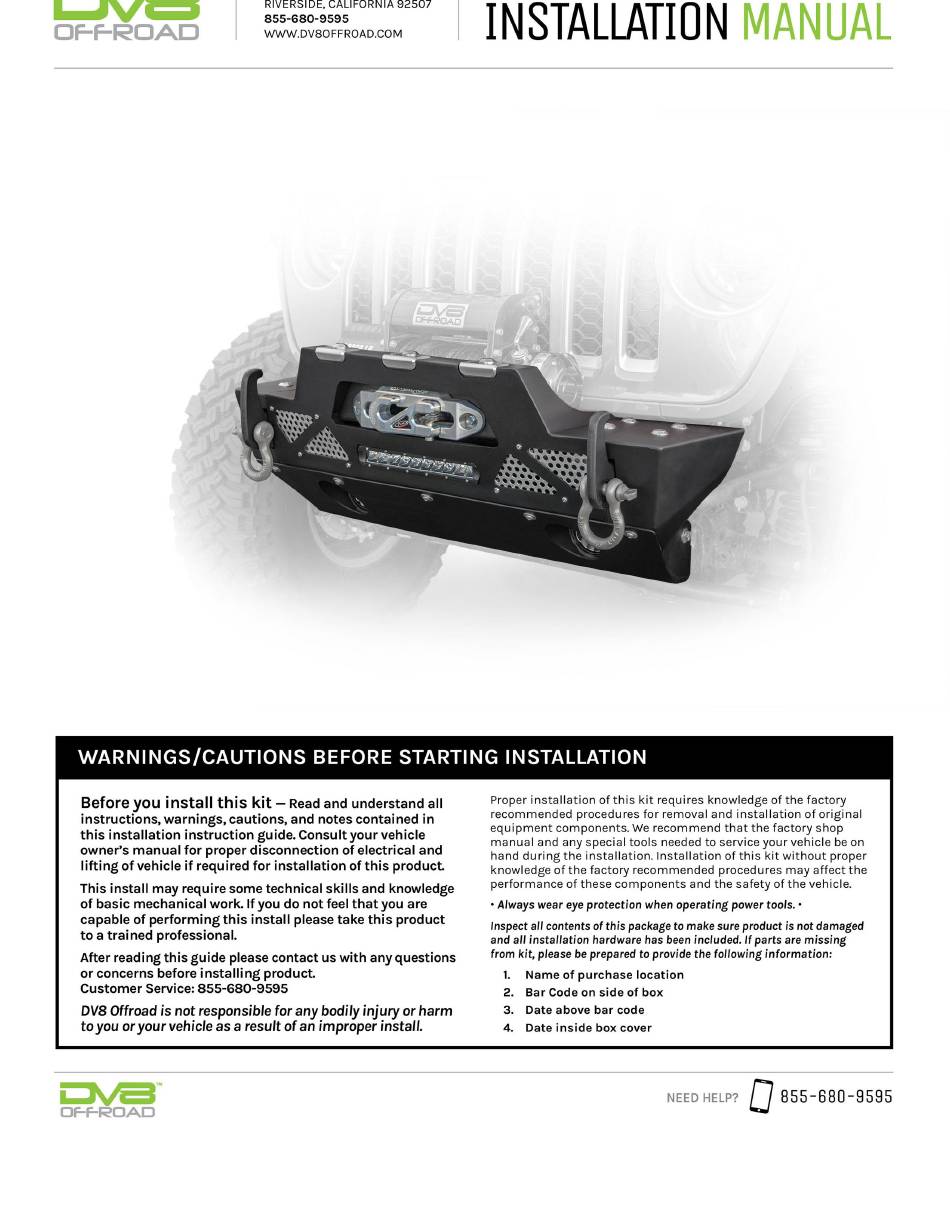

  • Page 1 FBJL-02 2018+ JL/JT Premium Modular Front Bumper...
  • Page 2 1. Begin by unpacking all items and inspecting them for damage or missing items. Any concerns, please contact the company you purchased the bumper from. 2. After inspection, remove your factory bumper. With the front of the frame rails clear, install the winch plate using the provided M12 hardware.
  • Page 3 4. Align the 8 holes on the top of the bumper with the winch plate below. Secure the 4 holes closest to the center with our taper allen head bolts and rock washers provided in the hardware kit. 5. After the center section of the bumper is secure, install the winch. 7-1/4”...
  • Page 4 6. If you are going to install our BS10E50W5W, install the light now with the hardware supplied with the light. 7. Install the wings (included stubby) or (full-width FBJL-02W) with the provided rock washers and hardware. The hole in the front of the stubby wing will remain open at this point. Bottom 8.
  • Page 5 9. Install the Skid plate onto the Jeep using the provided long bolts. These bolts will go through the frame horn on each side of the Jeep. Keep bolts loose.
  • Page 6 10. Once the two lower skid plate bolts are loosely installed, rotate skid plate up, and use the provided bolts to secure the top portion of the skid plate to the main bumper and wing. Once installed, you can secure the lower frame horn bolts. 11.
