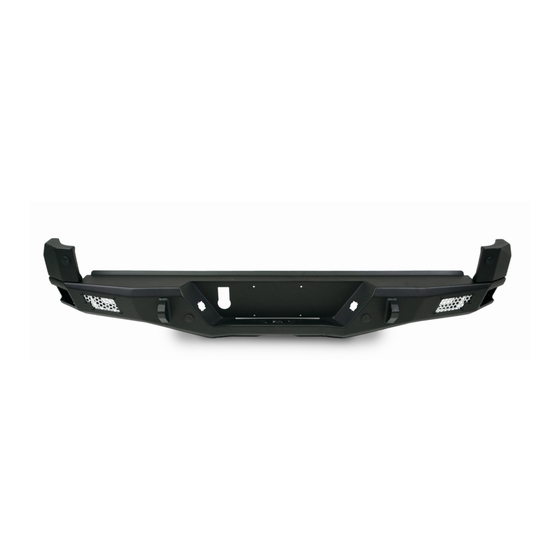

Tacoma Rear Bumper
2016+ Toyota
RBTT1-04
TOOLS
REQUIRED
- Push pin removal tool
- Needle Nose Pliers
- 12,13, 17, 21mm Socket
- 21mm Wrench/Adjustable Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 to 2 People
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2.5 Hours
Time to install this should take
approximately 2.5 Hour.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 RBTT1-04
Summary of Contents for DV8 RBTT1-04
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. STEP Begin by unplugging the harness attached to the factory trailer plug if equipped.
- Page 3 INSTALLATION MANUAL STEP Remove trailer plug by squeezing the two metal clips on each side and push from the backside of the bumper towards the face of the rear bumper. STEP Unplug the harness and sensor plugs located on the bottom side of the bed near the tailgate.
- Page 4 INSTALLATION MANUAL STEP Remove the license plate from the bumper. Using a push pin remover, remove the pin located directly behind the plate. STEP On the bottom of the bumper, remove the push pins holding the black section of the bumper to the painted/ chrome side pieces.
- Page 5 INSTALLATION MANUAL STEP To release the black section, using needle nose pliers, squeeze the push tabs together while lifting on the black section with minimal amount of force. NOTE: An extra set of hands will make this process much easier. 855-680-9595 NEED HELP?
- Page 6 INSTALLATION MANUAL STEP There are some pins located towards the face of the bumper that you will not be able to reach. Once all of the pins that are easily accessed are released, pull up on the black section firmly to remove. STEP Using a 13mm socket, remove the two bolts connected to the top of the...
- Page 7 INSTALLATION MANUAL STEP Using a 17mm socket, remove the five bolts on each frame rail as shown. NOTE: Bumper will be loose, ensure it is secure to avoid damage or harm from falling. STEP Remove the bumper by lifting upwards and pulling towards the rear of the vehicle.
- Page 8 INSTALLATION MANUAL STEP With the bumper removed, lay your new DV8 rear bumper on a smooth surface. Install side caps by aligning the front of the cap with the face of the bumper. Use the provided M8 hardware and a #4 allen head and 13mm socket.
- Page 9 INSTALLATION MANUAL STEP Using the push pin removal tool or snips, remove the harness from the bumper. STEP Remove hitch from OE bumper assembly and clean step with vehicle safe cleaner. 855-680-9595 NEED HELP?
- Page 10 Detach the covers to access the out sensors and remove the same way as the center sensors. NOTE: Take note of the orientation of the sensors when removing. STEP Install sensors into the DV8 bumper with the same orientation as the OE bumper. 855-680-9595 NEED HELP?
- Page 11 INSTALLATION MANUAL STEP Using factory 12mm bolts, install top brackets onto hitch. Note orientation of brackets to the hitch. 855-680-9595 NEED HELP?
- Page 12 INSTALLATION MANUAL STEP Mount the main bracket onto hitch using one M14 bolt for alignment. Using provided M14 hardware and 21mm socket, mount hitch with both main brackets to bumper. NOTE: You will mount the main brackets in the same orientation if you do not have the factory hitch.
- Page 13 INSTALLATION MANUAL STEP Route wiring harness along bumper and secure with zip ties on welded in zip tie tabs. Install trailer plug into bumper from the face pushing towards the hitch of the bumper until clip securely clicks into place. 855-680-9595 NEED HELP?
- Page 14 STEP If you are going to run the optional two 3” led pods, mount them using the hardware provided with the lights. NOTE: We are using two 3” DV8 elite pod lights for our install. 855-680-9595 NEED HELP?
- Page 15 INSTALLATION MANUAL STEP Install DV8 bumper onto the truck. While optional, we recommend removing the taillights to make installation much easier and to prevent any damage to the taillights. STEP To remove the taillights, open tailgate, and using a 10mm socket, remove the three bolts.
- Page 16 INSTALLATION MANUAL STEP With assistance, lift the bumper onto the track and align post into groove on frame. Using factory hardware, install the ten 17mm bolts into the frame. Torque to 65ft lbs. 855-680-9595 NEED HELP?
- Page 17 INSTALLATION MANUAL STEP Reinstall taillights using factory hardware, and plug in sensors, license plate brackets and trailer plug wiring. STEP Double check all hardware is secure and if running optional pods, wire lights as desired. 855-680-9595 NEED HELP?
