About this document
2

Description

The 4 switches buck-boost converter architecture is among the most efficient buck-boost topologies for high
current applications. The TLD5191ES provides digital and analog dimming control and one flag for diagnostic.
The TLD5191IVREG-EVAL is an evaluation platform for the TLD5191ES as LED driver or voltage regulator.
The default configuration is constant current LED driver with 1.5 A maximum output current. The output current
can be increased up to 6 A by changing resistor RSHO. If higher currents are needed, the output filter has to be
bypassed.
VIN
+VBAT
GND
External
DIMMING
5V
RPWMI
Open: PWMI set «high»
Closed: internal dimming
enabled
5V
RSET
Current adjust
5V

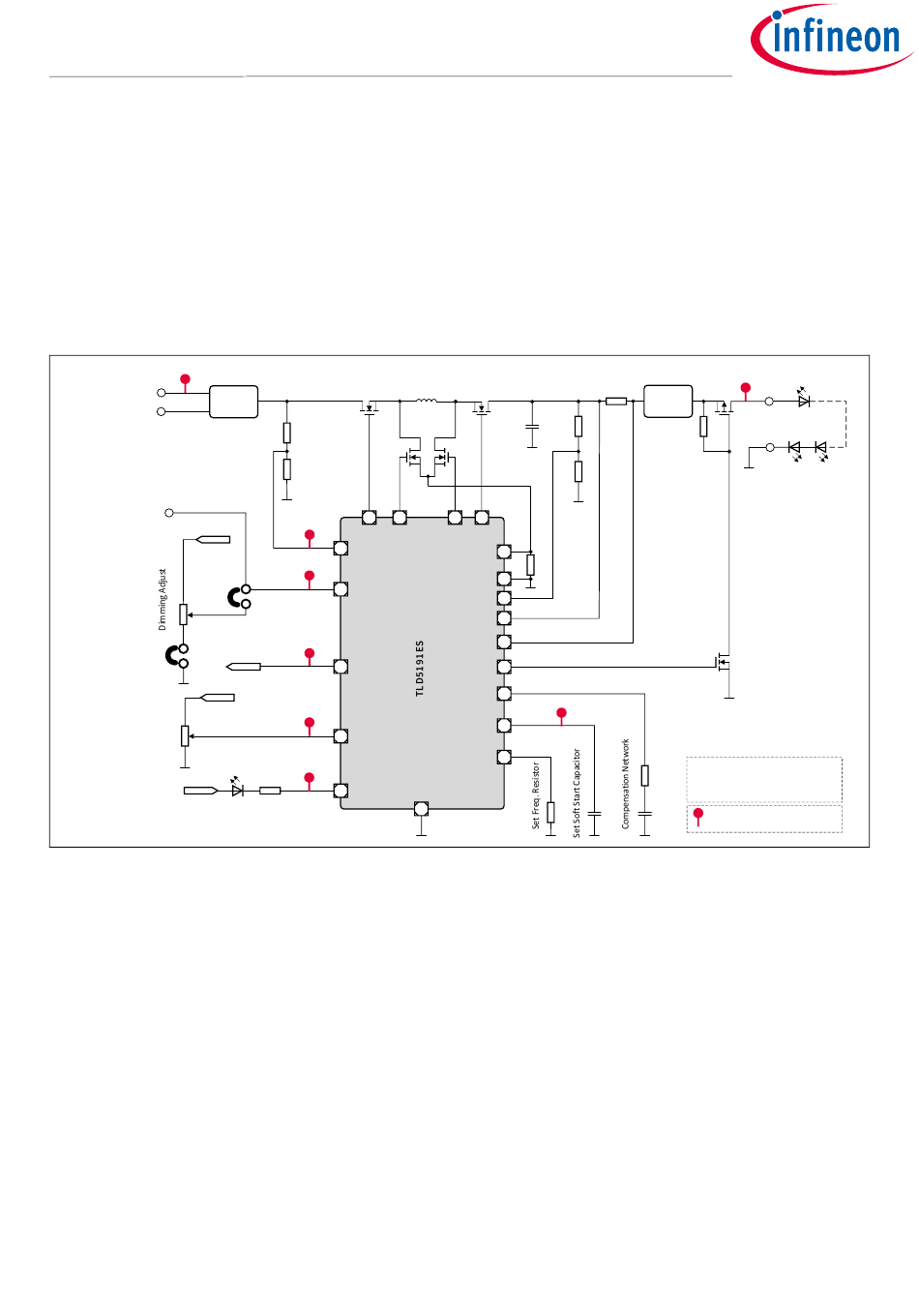

Figure 2 TLD5191IVREG_EVAL board simplified schematic in constant current mode (LED driver)
By reconfiguring few solder jumpers, the board can be used as powerful voltage regulator.
The board can be configured with several trimmers and also contains two status LEDs:
• Trimmer to adjust output voltage when set as voltage regulator
•
Trimmer to adjust output current (via SET pin)
• Trimmer to adjust the PWM duty cycle of embedded PWM engine (via PWMI pin)
• Two LEDs:
One blue LED showing TLD5191ES power on status (IVCC)
o
o One red LED showing TLD5191ES faults status (EF)
