EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The AD7766/AD7767 evaluation kit includes self-installing
software on CD ROM that contains software for controlling
and evaluating the performance of the AD7766/AD7767 when
it is operated with the CED. The software is compatible with
Windows® 2000/XP®. If the setup file does not run
automatically, setup.exe can be run from the CD-ROM.
The evaluation software should be installed BEFORE
connecting the CED to the PCs USB port to ensure that the
CED is correctly recognized when connected to the PC.

SETTING UP THE CED

This section describes how the evaluation board, the CED and
the software should be set up to begin using the complete
system.
Install the AD7766/AD7767 evaluation board software.
Load the AD7766/67 Evaluation Software CD.
The destination directory can be chosen using the default
clicking "Next" as shown in Figure 1.

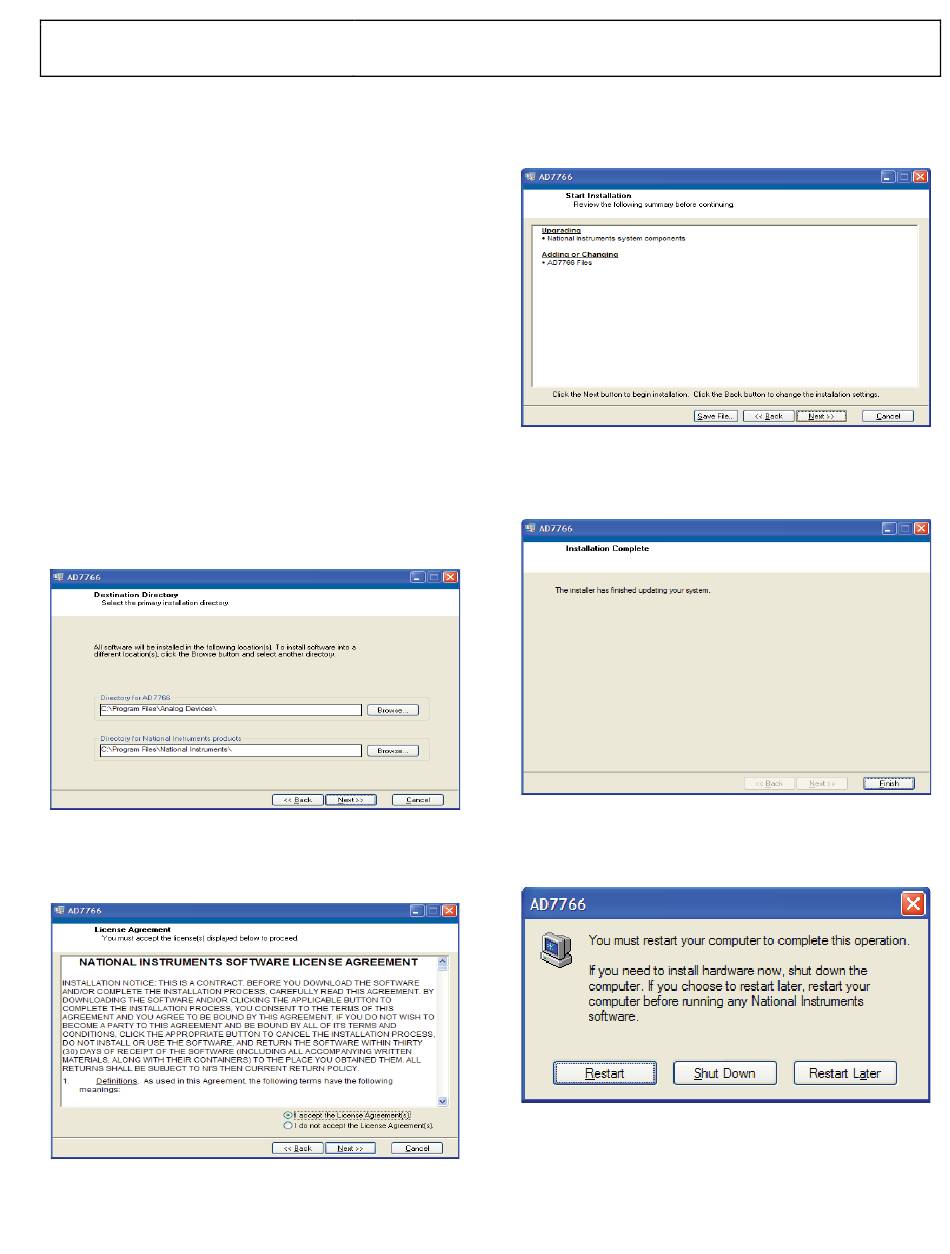

Figure 1 AD7766/AD7767 Evaluation software install 1.
Accept the license agreement by selecting the correct option
and clicking "Next" as shown in Figure 2.
Figure 2.
To start the installation click the "Next" button as shown in
Figure 3. This window details the actions of the
installation.
On completion of the installation the window as shown in
figure is displayed.
On completion of the installation it is advised that the user re­
starts the PC in order for the software to take full effect.
Rev. PrA | Page 7 of 20
EVAL-AD7766/AD7767
Figure 3.AD7766/67 Install actions
Figure 4.Install completed.
Figure 5.
