Hayman Reese 03402RW Installation Instructions Manual

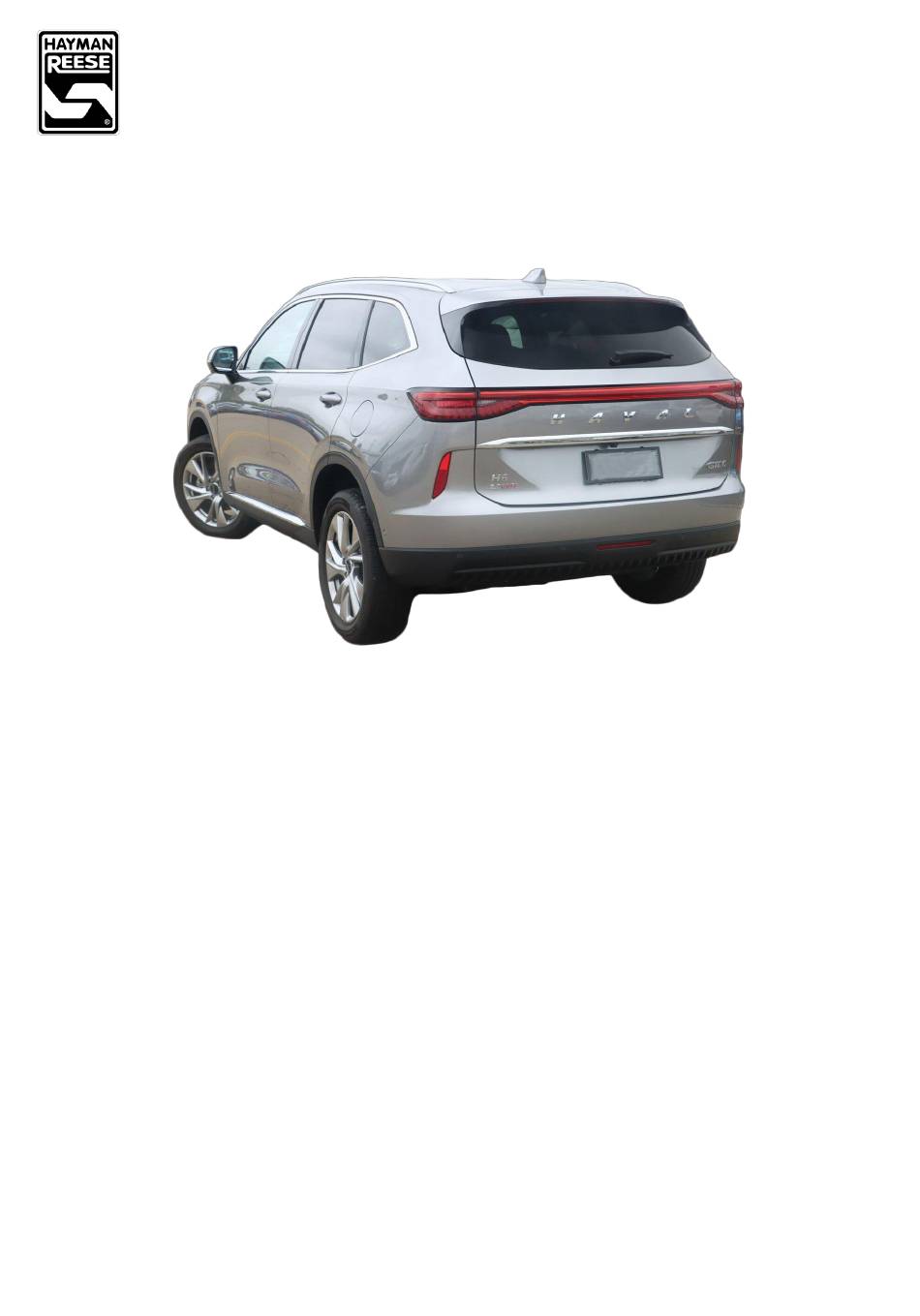

For haval h6 b01 cl4
Hide thumbs

Advertisement

Quick Links

Download this manual
PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03402RW
Maximum Towing Braked:
04826
Maximum Towing Unbraked:
1800 mm
Maximum Static Ball Load:
21325
102695-WL
120 Mins.
Hayman Reese SmartCODE Solution Required:
60 Mins.
RPA Disable/Other:
180 Mins.
Note:
Yes
Page
INSTALLATION INSTRUCTIONS
PART NUMBER
•
04937 for RPA Disable
1
TOWBAR
03402RW
HAVAL H6 B01 CL4
2000
kg
750
kg
200
kg
NO
YES
Issue Date:
08-12-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03402RW and is the answer not in the manual?

Questions and answers

Related Manuals for Hayman Reese 03402RW

Summary of Contents for Hayman Reese 03402RW

  • Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21325 Wiring Part Number: 102695-WL FITTING DETAILS: Towbar Installation Time: 120 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 60 Mins. RPA Disable/Other: Total Installation Time: 180 Mins. Note: • 04937 for RPA Disable...

  • Page 2: Installation Instructions

    1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing.
  • Page 3 SIDE ARM SUPPORT ASSY RH "D" SHACKLE 10mm M12 COARSE PITCH WELD NUT ASSY SMART PIN GOLD TRAILER BALL MOUNT HAYMAN REESE LOGO STICKER BOLT HEX HD M12x60x1.75P HITCH BOX COLLAR COVER BOLT HEX HD M12x50x1.75P COMPLIANCE LABEL WASHER PLAIN 1/2"...
  • Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 1. Release the rear lift gate to expose the boot cabin. Remove the 2 x Tail light fastener covers. Remove the 2x Screws from taillight and 2 x Screws from the bumper.
  • Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 4. Remove 3x screws connecting wheel arch liner to the rear bumper. Repeat for other side. 5. Unclip Peel back the side guard mouldings to expose and remove the 1 x Screw.
  • Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 7. Unclip the rear bumper. Repeat for the other side 8. Carefully Remove rear bumper and disconnect wiring loom from LHS of vehicle. Store safely to avoid damage. 9. Detach the wiring loom from the impact beam and remove the impact beam by removing the 8 x M10 HEX NUTS.
  • Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 10. Drill out hole location (2) to 13mm on both sides. Use 10mm chassis hole as guide. Loosely attach the Side Arms by inserting the Weld nut assembly into the chassis rail and fastening the Side Arm support &...
  • Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 13. Fit the plug bracket to the dropper and secure with 2x M4 screws, 4x washers and 2x nuts. 14. Using masking tape, mark and cut out an area as shown to clear the hitch box.
  • Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 IMPORTANT Due to possible vehicle variations, always confirm any noted vehicle colour wires with a multi-meter to ensure the correct function is identified before soldering or scotch locking. For vehicle wires denoted with two colours (example;...
  • Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 20. Fold down rear passenger seats. 21. Remove Luggage Compartment Floor exposing the vehicle spare tyre. 22. Remove polystyrene insert, wingnut, plate to remove the spare Tyre. 23. Remove the plastic nuts to remove the polystyrene insert and tools.
  • Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 27. For Haval H6, house the 2 terminals (3) into the RHS tail light connecter (4) on the harness according to the table below. Cavity Number Function Trailer Patch Grey...
  • Page 12 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 34. In the rear Cabin Area, connect the white M6 ground wire ring terminal to the vehicle earthing point (1) on the rear arch. 35. Route the orange power wire towards the vehicle interior Fuse box.
  • Page 13 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03402RW HAVAL H6 B01 CL4 39. With the rear bumper removed, secure tail harness to towbar. 40. Route tail harness up through chassis and previously drilled 30mm hole. 41. For RPA Disable route Grey and Grey/Black Wire back through grommet neck to outside of vehicle.

  • Page 14: Customer Information

    TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following.
  • Page 15 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
