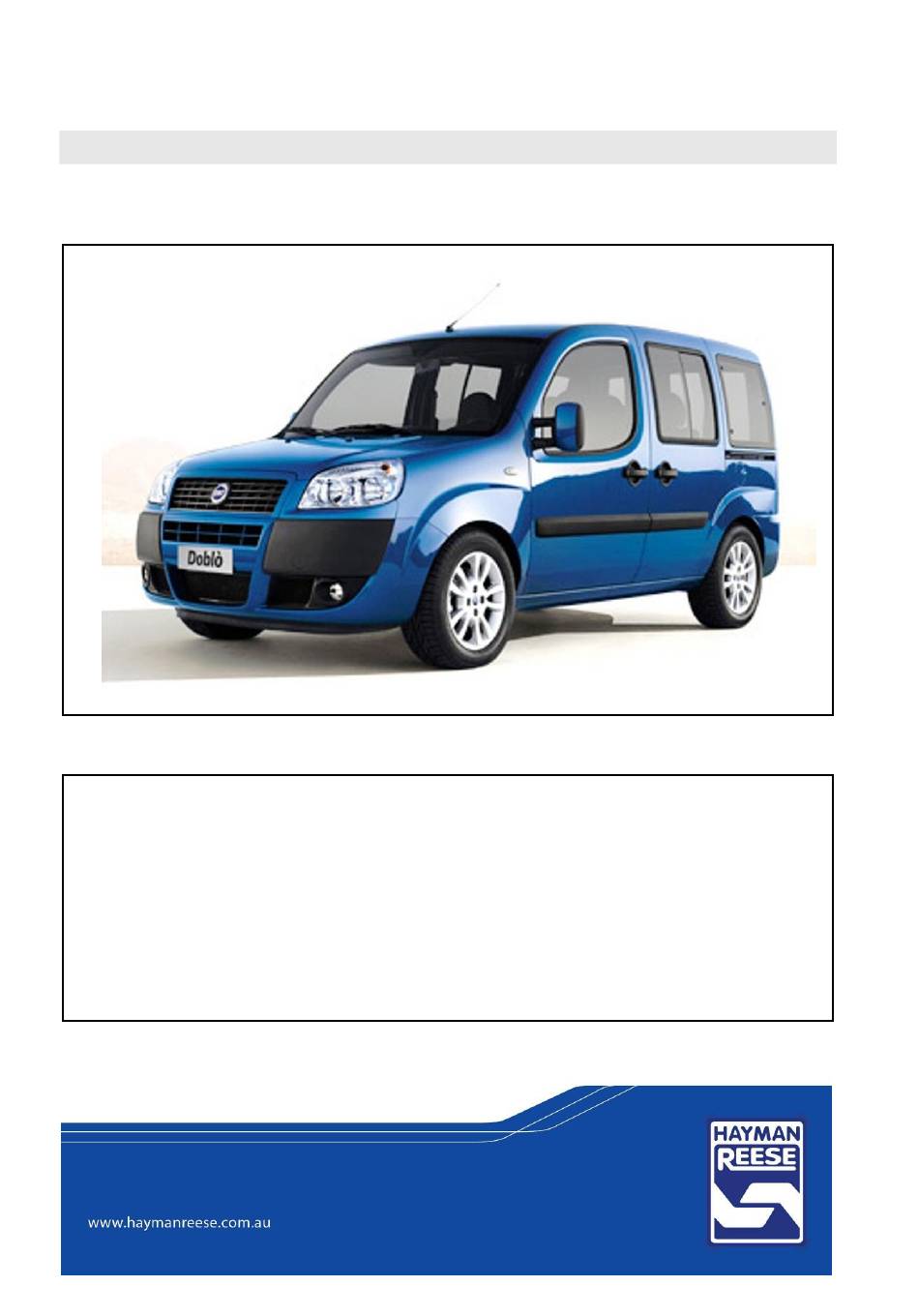

INSTALLATION INSTRUCTIONS
PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT
PLACE THESE INSTRUCTIONS IN THE VEHICLE'S GLOVEBOX AFTER INSTALLATION IS COMPLETED
Towbar Installation Instructions
FIAT DOBLO 263 CL4
Part Number
Tail Harness Length Required: 1800 mm
Hayman Reese (Cequent)
PO Box 4050, Dandenong South VIC 3164
Phone 1800 812 017 Email info@haymanreese.com.au
Rev: A
HAYMAN REESE
PART No: 03161RW
FIAT DOBLO 263
03161RW
Installation Time: Approx 100 Mins
Towbar capacity
Max Towing Braked
Max Towing Unbraked
Max Static Ball Load
Page 1
1500kg
500kg
150kg
Issue Date: 04-10-2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03161RW
Summary of Contents for Hayman Reese 03161RW
- Page 1 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED Installation Time: Approx 100 Mins Towbar Installation Instructions Towbar capacity...
- Page 2 The high tensile fasteners supplied with this product were used to achieve the specified rating. If replacement is required ensure that fasteners of the same rating & quality are used. Contact an authorised Hayman Reese dealer if further information is required.
- Page 3 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED ITEM DESCRIPTION ITEM DESCRIPTION WELDED ASSEMBLY PLUG BRACKET SIDE ARM ASSEMBLY RHS NUT NYLOC M4-0.7 Z/P...
- Page 4 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 1. Remove 4 x Screws from top of rear bumper.
- Page 5 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 4. Remove 1 x Screw at top of rear bumper, at tail light assembly cavity.
- Page 6 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 7. Remove 2 x Screws from inside rear wheel arch.
- Page 7 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 10. Carefully unclip and remove rear bumper by peeling outwards,...
- Page 8 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 14. Remove rubber grommet from underside of chassis rail. Repeat for opposite side of vehicle.
- Page 9 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 16. Offer Towbar to side arm brackets and loosely secure using 8 x M12 hex head Screws (4 per side), complete with 1 x M12 Flat washer per Screw.
- Page 10 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 20. On the LHS rear quarter exterior, remove the vent (1) by the wheel arch and remove the grommet (2) from inside.
- Page 11 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 23. Inside the cargo hold, retrieve the vehicle tail light harness (1) into the trim cavity and then connect the trailer patch harness RHS mating connector (2).
- Page 12 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 27. At the rear exterior of the vehicle, mount the tail harness socket (1) to the towbar mounting bracket using M4 fasteners.
- Page 13 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 31. Route the power harness (1) along the LHS chassis rail, towards the rear of the vehicle.
- Page 14 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 39. Create bumper cut 90mm wide x 150mm long, starting at corner of bumper lip.
- Page 15 HAYMAN REESE PART No: 03161RW FIAT DOBLO 263 INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLE’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 40. Mark out and drill 2x ø5mm holes 69mm apart on bumper skin to support plug bracket.
