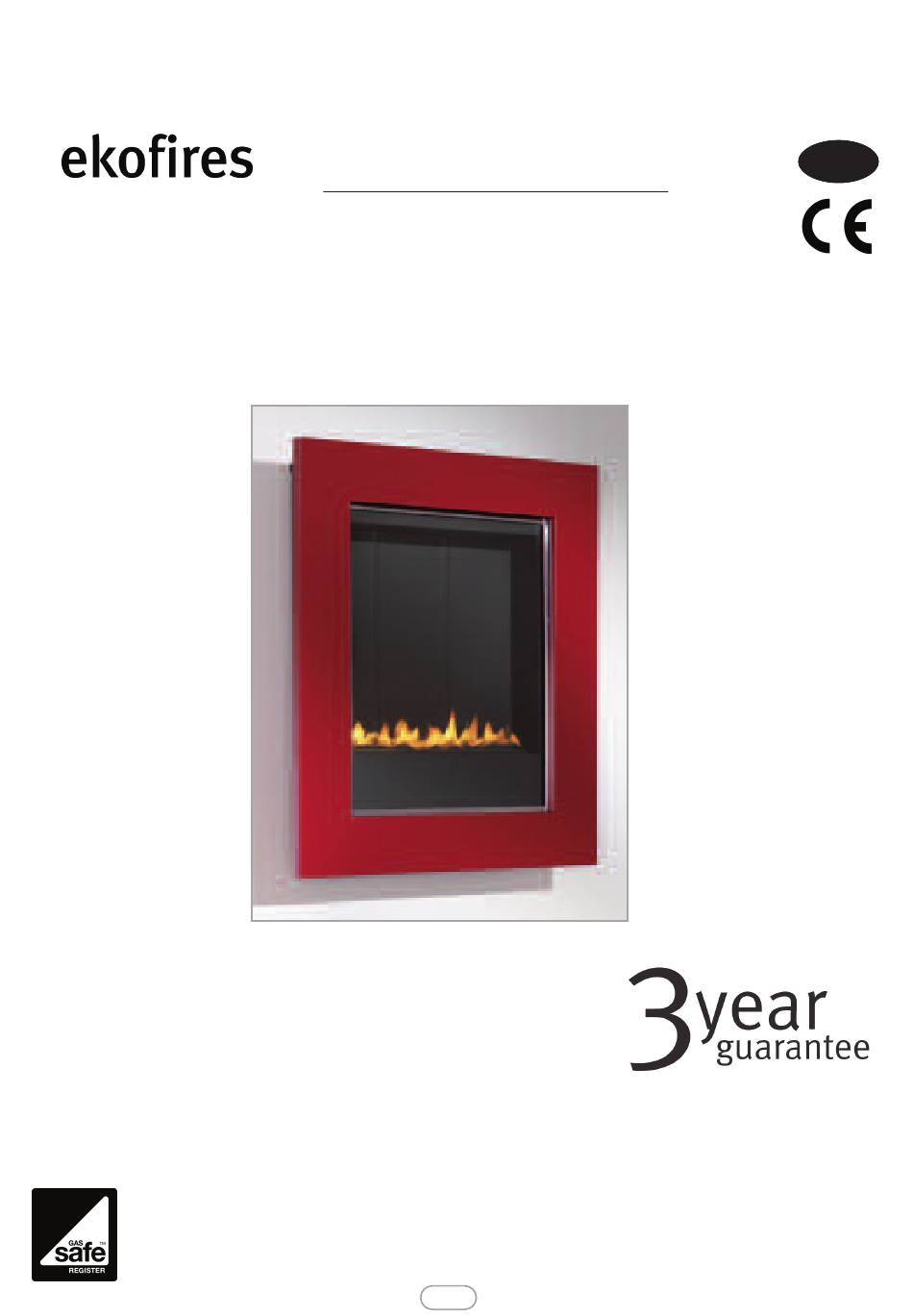

INSTALLATION & USER INSTRUCTIONS
WALL MOUNTED HIGH EFFICIENCY GAS FIRE
Christchurch, Dorset BH23 2BT
Tel: 01202 588 638
Fax: 01202 499 639
www.ekofires.co.uk
e-mail: sales@ekofires.co.uk
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including copy-
right in the text, images and layout of this booklet is owned by Focal
Point Fires plc. You are not permitted to copy or adapt any of the con-
tent without the prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
5010, 5020, 5030, 5050 & 5060 GAS FIRES

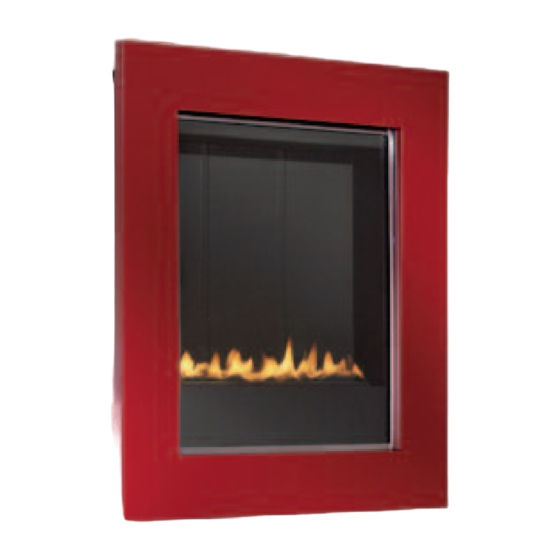

MODEL SHOWN: EKO 5010
1
All instructions must be handed to the user for
safekeeping.The products covered by this booklet
are protected under patent GB2275331C.
Revision D - 07/16
GB IE
©
2016 Focal Point Fires plc.
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekofires 5010
Summary of Contents for Ekofires 5010
- Page 1 INSTALLATION & USER INSTRUCTIONS WALL MOUNTED HIGH EFFICIENCY GAS FIRE GB IE MODELS COVERED BY THESE INSTRUCTIONS Christchurch, Dorset BH23 2BT 5010, 5020, 5030, 5050 & 5060 GAS FIRES Tel: 01202 588 638 Fax: 01202 499 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk...
-
Page 2: Table Of Contents
I N S T A L L A T I O N I N S T R U C T I O N S GB IE Section Contents Page No. Section Contents Page No. Important Notes Testing and Commissioning Appliance Data Operating the Appliance Installation Requirements Operating pressure... -
Page 3: Appliance Data
2.0 APPLIANCE DATA GB IE Operating Pressure Country of Max Energy Input (kW) Min Energy Input (kW) Model Cat Gas Type (±2.0 mbar) Destination G25 G30 G31 Gross Gross I 2H P23 Natural Gas Models GB - IE Natural I 3P P23 LPG models GB - IE Propane... -
Page 4: Ventilation
4.0 SITE REQUIREMENTS GB IE (CONTINUED) The minimum clearance to the ceiling above the appliance is 800mm (31.5”) measured from the top of the appliance glass panel. Combustible materials should not be positioned directly in front of the appliance within a distance of one metre. Under no circumstances should any electrical equipment e.g. -
Page 5: Gas Supply Routes
GB IE 6.0 GAS SUPPLY ROUTES There are four possible entry points for the gas supply pipework to enter the appliance firebox. These entry points are ‘knock out’ type holes. Non-concealed gas connections may be made using the entry points at either end of the firebox or the one in the bottom of the firebox. -
Page 6: Testing And Commissioning
7.0 FIXING THE APPLIANCE GB IE (CONTINUED) lower wall plugs through the corresponding fixing holes in the lower part of the back panel. Do not tighten fully. Before tightening the wall mounting screws fully, at this stage it is recommended to check the horizontal alignment of the appliance with a spirit level, as small adjust- ments can still be made if necessary. -
Page 7: Fitting The Decorative Frame
8.3 FITTING THE DECORATIVE FRAME GB IE All models : Ensure all/any protective film is removed as the facia may be damaged if the fire 1. Insert the is lit with the facia in position whilst still covered in film. screws into the threaded P23 &... -
Page 8: Briefing The Customer
9.0 BRIEFING THE CUSTOMER GB IE All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire. After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the need for regular servicing. -
Page 9: Pilot Assembly
10.2 PILOT ASSEMBLY GB IE Remove the burner unit as detailed in section 10.1, then remove the lint arrestor and pilot unit by using a screwdriver to remove the retaining screws. Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. -
Page 10: Troubleshooting Guide
11.0 TROUBLESHOOTING GUIDE Fire sparks but pilot does not light • No gas to fire, check isolators are open and gas supply is on. • Pipework blockage, clean out. • Air not fully purged, re purge supply or wait longer. •... -
Page 11: Outlet Openings
U S E R I N S T R U C T I O N S GB IE Section Content Page No Important Notes Clearances to Combustibles Fireguards Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing List of Replacement Parts 10.0 Installation Details 11.0... -
Page 12: Clearances To Combustibles
2.0 CLEARANCES TO COMBUSTIBLES - GB IE (CONTINUED) Clearances to combustible materials (continued) Under no circumstances should any electrical equipment e.g. plasma/LCD screen TV sets etc. be positioned on the wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any type of combustible fire surround. No combustible shelves should be positioned on the wall above the appliance. -
Page 13: Combustion Monitoring System
5.0 OPERATING THE APPLIANCE GB IE The control knob is located on the lower right hand side of the outer case. It is marked as shown in figure 5. ‘OFF’ position • All models : The pilot is visible behind the left hand side of the burner.Push in and turn the control knob to the SPARK position, and hold there for a few seconds. -
Page 14: Service History
11.0 SERVICE HISTORY GB IE Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer 12.0 GUARANTEE - TERMS AND CONDITIONS The 3 year guarantee only covers products purchased on or after 1st February 2009. For all gas fires purchased the 3 year guarantee commences from the date of purchase, provided that the following 3 terms and conditions are adhered to: Registration is not required. - Page 15 EKO Fires P23 Flueless Gas Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 16 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; P23 Flueless Gas Fire Gas Category/Pressure = I (20) Energy Efficiency Class of the model; A Direct heat output; 1.8 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 17 Table 1 Information requirements for gaseous/liquid fuel local space heaters P23 Flueless Gas Fire Model identifier(s): [yes/no] Indirect heating functionality: (kW) Direct heat output: N.A. Indirect heat output: Fuel Space heating emissions(*) Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input Gaseous Natural Gas < 130 t.b.c. Item Symbol Value Unit Item Symbol ...
- Page 18 LPG P23 Flueless Gas EKO Fires Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 19 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; P23 Flueless Gas Fire Gas Category/Pressure = I (37) Energy Efficiency Class of the model; A Direct heat output; 1.6 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 20 Table 1 Information requirements for gaseous/liquid fuel local space heaters P23 Flueless Gas Fire ‐ LPG Model identifier(s): [yes/no] Indirect heating functionality: (kW) Direct heat output: N.A. Indirect heat output: Fuel Space heating emissions(*) Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input Gaseous Propane < 130 t.b.c. Item Symbol Value Unit Item Symbol ...
- Page 21 EKO Fires L23 Flueless Gas Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 22 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; L23 Flueless Gas Fire Gas Category/Pressure = I (20) Energy Efficiency Class of the model; A Direct heat output; 1.8 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 23 Table 1 Information requirements for gaseous/liquid fuel local space heaters L23 Flueless Gas Fire Model identifier(s): [yes/no] Indirect heating functionality: 1.8 (kW) Direct heat output: N.A. Indirect heat output: Fuel Space heating emissions(*) Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input Gaseous Natural Gas < 130 t.b.c. Item Symbol Value Unit Item Symbol ...
- Page 24 LPG L23 Flueless Gas EKO Fires Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 25 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; L23 Flueless Gas Fire Gas Category/Pressure = I (37) Energy Efficiency Class of the model; A Direct heat output; 1.6 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 26 Table 1 Information requirements for gaseous/liquid fuel local space heaters L23 Flueless Gas Fire ‐ LPG Model identifier(s): [yes/no] Indirect heating functionality: 1.6 (kW) Direct heat output: N.A. Indirect heat output: Fuel Space heating emissions(*) Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input Gaseous Propane < 130 t.b.c. Item Symbol Value Unit Item Symbol ...
