INSTALLATION & USER INSTRUCTIONS
WALL MOUNTED LED ELECTRIC FIRE
Christchurch, Dorset BH23 2BT
Tel: 01202 588 638
Fax: 01202 499 639
www.ekofires.co.uk
e-mail: sales@ekofires.co.uk
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS

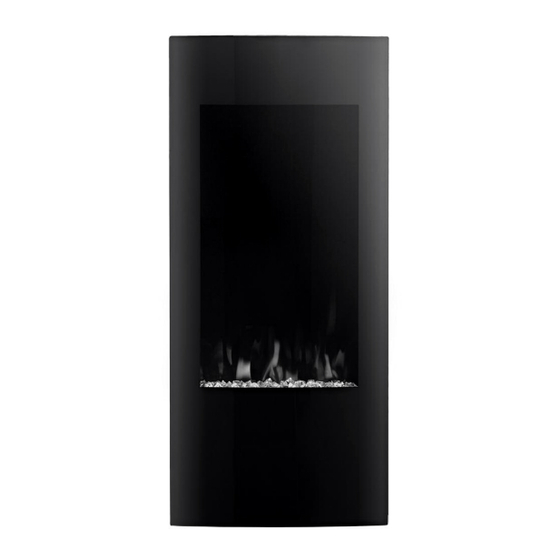

1011 GRAND LED ELECTRIC
EF11-16
MODEL SHOWN: EKO 1011 GRAND
1
All instructions must be handed to the user for
safekeeping.
Revision A - 04/16
GB IE
©
2016 Focal Point Fires plc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekofires 1011 GRAND LED ELECTRIC
Summary of Contents for Ekofires 1011 GRAND LED ELECTRIC
- Page 1 INSTALLATION & USER INSTRUCTIONS WALL MOUNTED LED ELECTRIC FIRE GB IE MODELS COVERED BY THESE INSTRUCTIONS 1011 GRAND LED ELECTRIC Christchurch, Dorset BH23 2BT EF11-16 Tel: 01202 588 638 Fax: 01202 499 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk MODEL SHOWN: EKO 1011 GRAND...
-
Page 2: Table Of Contents
I N S TA L L AT I O N & U S E R I N S T R U C T I O N S GB IE Section Contents Page No. Section Contents Page No. Preliminary Notes Removing the Front Glass Appliance Data Installing the Crystal Embers Electrical Installation Requirements... -
Page 3: Appliance Data
1.0 PRELIMINARY NOTES - CONTINUED GB IE • Never immerse the product in water or any other liquids. • DO NOT use the appliance outdoors. • Before cleaning the appliance, ensure it is unplugged from the power and that it is com- pletely cool. -
Page 4: Clearances To Combustible Materials
6.0 CLEARANCES TO COMBUSTIBLE MATERIALS GB IE • The minimum distance from the top of the appliance to a ceiling is 127mm • The minimum distance from the bottom of the appliance to the floor is 500mm • The minimum distance to the sides of the appliance is 152mm •... - Page 5 8.0 INSTALATION - CONTINUED GB IE Have two people hold the appliance against the wall to determine the final location. Mark out 5 drill hole locations, refer to Figure 3. Using a 6mm drill bit, drill the 5 holes marked on the wall and fit with the sup- plied wall plugs, have at least one screw in a wall stud.
-
Page 6: Removing The Front Glass
8.1 REMOVING THE GLASS FRONT GB IE Remove the 2 bottom securing screws off the appliance. Pull the bottom of the glass front away from the appliance and lift up to disengage the top. Tilt the glass front away from the unit. Slightly pull down on the glass to release from the top catch. - Page 7 9.0 OPERATING THE APPLIANCE GB IE POWER ON/OFF Turns the appliance ON/OFF. FLAME & EMBER LIGHT CONTROL Controls flame ON/OFF and the ember light colours; Orange - Blue - Purple - Cycle - Off (LOOP) Press button for 5 seconds to lock or unlock the heater. HEATER CONTROL Turns the heater ON/OFF.
-
Page 8: Cleaning And Maintenance
11.0 CLEANING AND MAINTENANCE GB IE ALWAYS DISCONNECT THE APPLIANCE AT THE SUPPLY OUTLET SOCKET BEFORE UNDERTAKING ANY CLEANING. Except for periodic cleaning of dust, there are no specific requirements for care, other than regular cleaning of the general appliance. A wipe with a dry cloth is normally sufficient. - Page 9 3G Service Department to the address below. Alternatively, you can email or fax. EKO Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Email: service@ekofires.co.uk Fax. 01202 499326. Details required: 1.
