INSTALLATION & USER INSTRUCTIONS
Christchurch, Dorset BH23 2BT
Tel: 01202 588 638
Fax: 01202 499 639
www.ekofires.co.uk
e-mail: sales@ekofires.co.uk
PLEASE NOTE: EKO 5510, 5520, 5530 GAS FIRES MAY BE SUPPLIED WITH DIFFERENT FRET &
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
INSET FLUELESS GAS FIRE
MODELS COVERED BY THESE INSTRUCTIONS
5510, 5520 & 5530 GAS FIRE

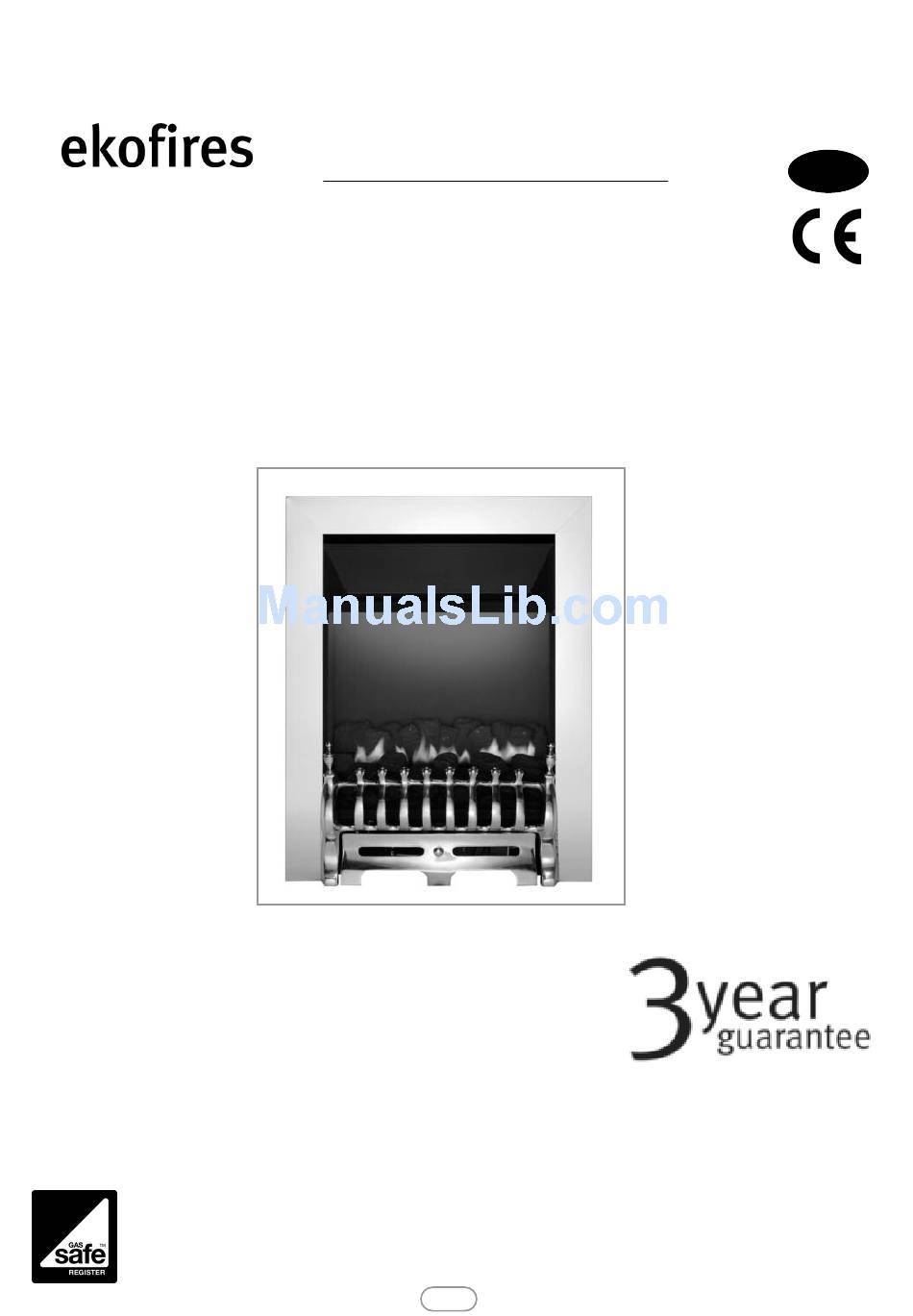

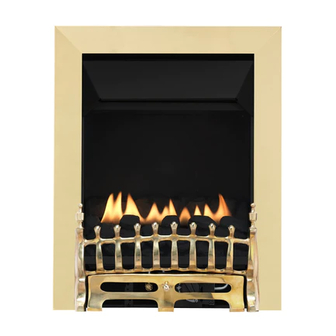

MODEL SHOWN: EKO 5510
FRAMES THAN SHOWN
The products covered by this booklet are protected under
patent GB2275331C.
Revision G - 12/16
1
GB IE
©
2016 Focal Point Fires plc.
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekofires 5510
Summary of Contents for Ekofires 5510
- Page 1 MODEL SHOWN: EKO 5510 PLEASE NOTE: EKO 5510, 5520, 5530 GAS FIRES MAY BE SUPPLIED WITH DIFFERENT FRET & FRAMES THAN SHOWN IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE...
-
Page 2: Table Of Contents
Page No. Important Notes 7.1 Cable Fixing Appliance Data 7.2 Checking the Burner & Spark Gap Installation Requirements Fitting the Fuel Bed (5510 & 5520 models) 3.1 Room Sizing 7.4 Fitting Decorative Hood/Frame Site Requirements Testing and Commissioning 4.1 Ventilation... -
Page 3: Appliance Data
2.0 APPLIANCE DATA GB IE Operating/Inlet Pressure Max Energy Input (kW) Min Energy Input (kW) Destination (±2.0 mbar) Model Country Gross Gross I 2H PI27 - Natural Gas GB - IE 1.15 I 3P PI27 - Propane GB - IE 1.15 Please see Data Badge affixed to appliance for current data. -
Page 4: Site Requirements
4.0 SITE REQUIREMENTS GB IE - CONTINUED Dimension: 5510 & 5520 models 5530 models ‘a’ minimum ‘b’ ‘a’ maximum ‘b’ minimum ‘b’ maximum ‘c’ minimum ‘c’ maximum None None ‘a’ ‘d’ minimum ‘e’ minimum ‘c’ ‘f ’ minimum ‘g’ minimum ‘g’... -
Page 5: Ventilation
Set of manufacturer’s instructions Contemporary Facia (5530 models) Traditional One-Piece Frame (5510 & 5520 models) Cast Firefront (5510 & 5520 models) Coal Set (Front & Rear) (5510 & 5520 models) Rubber grommet Cable fixing kit Screw pack including wall plugs... -
Page 6: Appliance Installation
6.0 APPLIANCE INSTALLATION GB IE Note: Ensure that the gas supply is isolated before commencing installation of the appliance. The fireplace opening and environment must be in compliance with specifications laid down in the appropriate sections of these instructions. 6.1 PREPARING THE APPLIANCE Remove the appliance from its carton as described previously and stand on a dustsheet. - Page 7 6.4 INSTALLATION METHOD 2 GB IE (recessing into a non-combustible wall) This method allows for installation of the appliance with the rear of the firebox recessed into the inner leaf of a cavity wall.This should enable a standard fire surround and back panel/hearth set to be fitted to the wall with the fire presented naturally in a flush fitted manner.The structural integrity of the wall must be maintained.
-
Page 8: Installation Method
6.5 INSTALLATION METHOD 3 GB IE (timber framed buildings) Where removal of any part of a timber frame is undertaken the structural integrity of the wall must be retained. The advice of your local building control officer should be sought. If the property is under any NHBC warranty it is also advised that their advice on this kind of modification is sought. -
Page 9: Installation Method
11, and any flush fitting shelf design may be calculated from the measurements given. 5510 & 5520 models : If the appliance is to be wall mounted then the entire base of the appliance and the firefront must be supported by a non-combustible shelf. -
Page 10: Checking The Burner & Spark Gap
5510 & 5520 models only : The burner should be visually inspected to ensure it is free from any foreign matter. If it is necessary to clean or dust off the burner then (if fitted) the glass door should be removed by removal of the four retaining screws. -
Page 11: Testing And Commissioning
17. 5510 & 5520 models : Remove all protective film from the frame. The frame is retained by four magnets on the front face of the firebox. -
Page 12: Briefing The Customer
11. Turn on the gas supply and leak test. Check pilot and burner for good ignition. 12. 5510 & 5520 models : Refit the ceramics as per these installation instructions. 13. Refit the glass door assembly, ensuring correct orientation and a good seal. -
Page 13: Pilot Assembly
9.3 PILOT ASSEMBLY GB IE Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two spanners to make cleaning easier. -
Page 14: Troubleshooting Guide
10.0 TROUBLESHOOTING GUIDE GB IE • No gas to fire, check isolators are open and gas supply is on. Fire sparks but pilot does not light • Pipework blockage, clean out. • Air not fully purged, re purge supply or wait longer. •... -
Page 15: Important Notes
U S E R I N S T R U C T I O N S GB IE Section Contents Page No Important Notes Fire Front Clearances Ventilation and Room Size Operating Instructions Combustion Monitoring System Fitting the Fuel Bed Fire Guards Cleaning 10.0... -
Page 16: Clearances
3.0 CLEARANCES GB IE Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made materials impervious to flame. If in doubt refer to the material manufacturer for further information before proceeding with installation. The wall/back panel for the opening must always be non-combustible. -
Page 17: Operating Instructions
DO NOT allow the appliance to be used until the appliance and installation is passed as safe. If the pilot continues to be extin- guished you must call your installer to check the operation of the complete appliance. 7.0 FITTING THE FUEL BED (5510 & 5520 models) The appliance features a coal style fuel effect. -
Page 18: Fire Guards
8.0 FIRE GUARDS GB IE The fireguards specified in BS 8423 are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flam- mable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. -
Page 19: List Of Replacement Parts
Hood (5510 & 5520 models) F820191 Decorative facia assembly (5530 models) Please enquire Decorative fascia assembly (5510 models) Please enquire Decorative frame (5510 & 5520 models) Please enquire Decorative fret (5510 & 5520 models) F730085 Gas valve F730023 Pilot assembly (Natural Gas) -
Page 20: Guarantee - Terms And Conditions
Eko Fires ltd, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Alternatively email: service@ekofires.co.uk or fax. 01202 499326. Details required: 1. Name, full address including post code and contact telephone number. - Page 21 PI27 Flueless Gas EKO Fires Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 22 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; PI27 Flueless Gas Fire Gas Category/Pressure = I (20) Energy Efficiency Class of the model; A Direct heat output; 2.1 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 23 Table 1 Information requirements for gaseous/liquid fuel local space heaters PI27 Flueless Gas Fire Model identifier(s): [yes/no] Indirect heating functionality: (kW) Direct heat output: N.A. Indirect heat output: Fuel Space heating emissions(*) Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input Gaseous Natural Gas < 130 t.b.c. Item Symbol Value Unit Item Symbol ...
- Page 24 LPG PI27 Flueless Gas EKO Fires Fire ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
- Page 25 Product Fiche Supplier's name or trademark; EKO Fires Model identifier; PI27 Flueless Gas Fire Gas Category/Pressure = I (37) Energy Efficiency Class of the model; A Direct heat output; 1.8 kW Indirect heat output; N.A. Energy Efficiency Index; 91 Useful Energy Efficiency at nominal heat output; 100% Useful Energy Efficiency at minimum load; 100% Specific precautions that shall be taken when the local space heater is assembled, installed or maintained; This appliance must be installed, commissioned and maintained by a competent person. Prior to installation the competent person must ensure that the local distribution conditions (identification of the type of gas and pressure) and adjustment of the appliance are compatible. This appliance must be installed in accordance with the rules in force, and used only in a sufficiently ventilated space of adequate volume. Consult the instructions before installation and use of this appliance. The competent person must refer to and comply with the specific instructions listed in the Installation Manual before starting to install and commission the appliance. ...
- Page 26 Table 1 Information requirements for gaseous/liquid fuel local space heaters PI27 Flueless Gas Fire - LPG Model identifier(s): [yes/no] Indirect heating functionality: 1.8 (kW) Direct heat output: N.A. Indirect heat output: Space heating emissions(*) Fuel Select fuel type [gaseous/liquid] [specify] [mg/kWh (GCV) input...
