Installation of AC Adapter
The plug-in AC Adapter, when used, must be installed in a protected metal housing. It is important
to use only the adapter (sometimes referred to as a transformer) that is supplied with the
communicator. Wiring from the adapter to the communicator must run through metal conduit. The
adapter itself is plugged into a conventional 120-volt/60 Hz outlet connected to a dedicated circuit
for the security system.

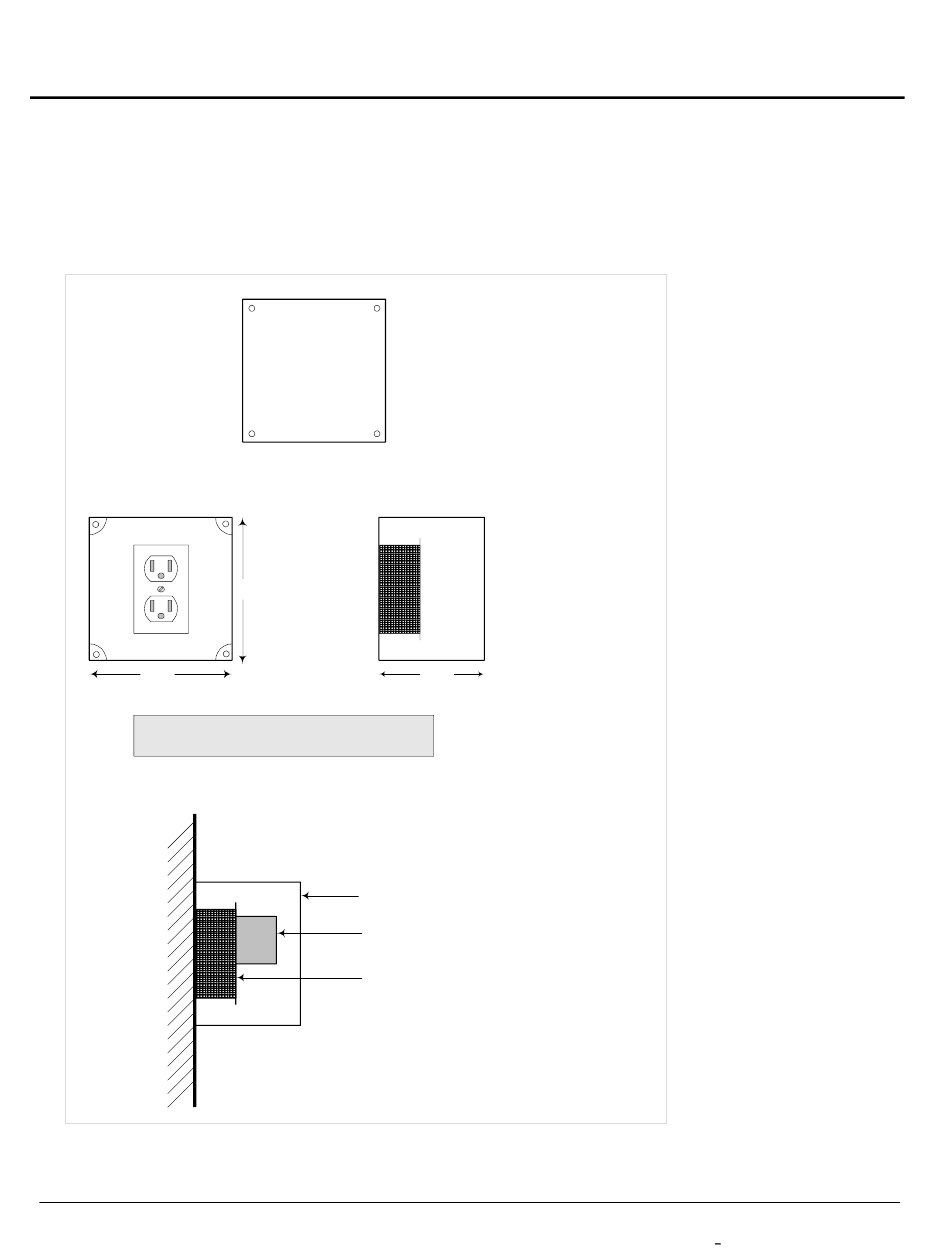

The diagram below should be consulted as a reference.
8 IN.
FRONT VIEW
LISTED PULL BOX WITH LISTED
OUTLET BOX AND RECEPTACLE
WALL
TG-7 Dual Path Series Installation & Operating Guide
COVER
8 IN.
SIDE VIEW
LISTED PULL BOX
LISTED TRANSFORMER
LISTED OUTLET BOX AND RECEPTACLE
6 IN.
ULTPDE.VSD
