Appendix 1

Wiring Diagrams

The following wiring diagrams show the configurations in which the communicator can be used.
These diagrams apply to both fire and burglary systems in both U.S. and Canada (unless noted).

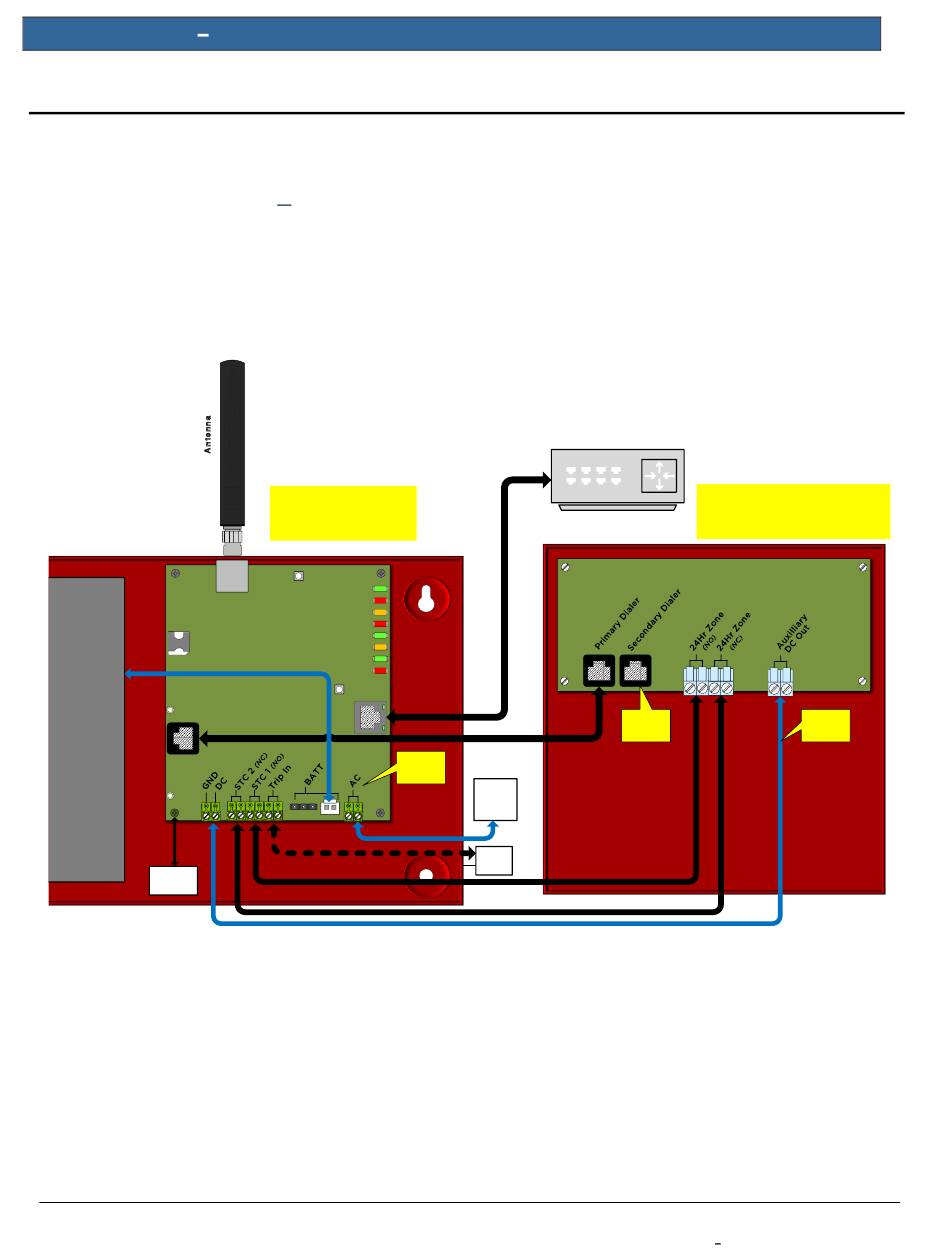

Dual Path Wiring Applicable to Cellular or LAN Primary:
Physical installation is the same for either Dual Path mode of operation. The configuration chosen
during registration is what determines which is the primary and which is the secondary path. In this
configuration, the LAN connection will be monitored by the communicator.
This configuration provides for Active communication for Canadian fire systems and P2 line security
for Canadian burglary systems.
Battery
EARTH
GROUND
TG-7 Dual Path Series Installation & Operating Guide

Connection Guide

NOTE 1: Use either AC Power
(from Adapter) with Battery
or use DC Power (from Panel).
LED1
LED2
LED3
LED4
LED5
LED6
LED7
LED8
ROUTER, SWITCH,
or OTHER LAN PORT
NOTE 1
AC
Plug-in
Adapter
TRIP
INPUT
23
NOTE 2: Secondary dialer on FACP must
be disabled, or connections spliced.
See Appendix 3 for instructions.
R
FACP
NOTE 2
56052601 Rev B © 2022 Telguard
NOTE 1
