Telguard TG-1 Express Quick Install Manual

TG-1 Express Quick Install Guide

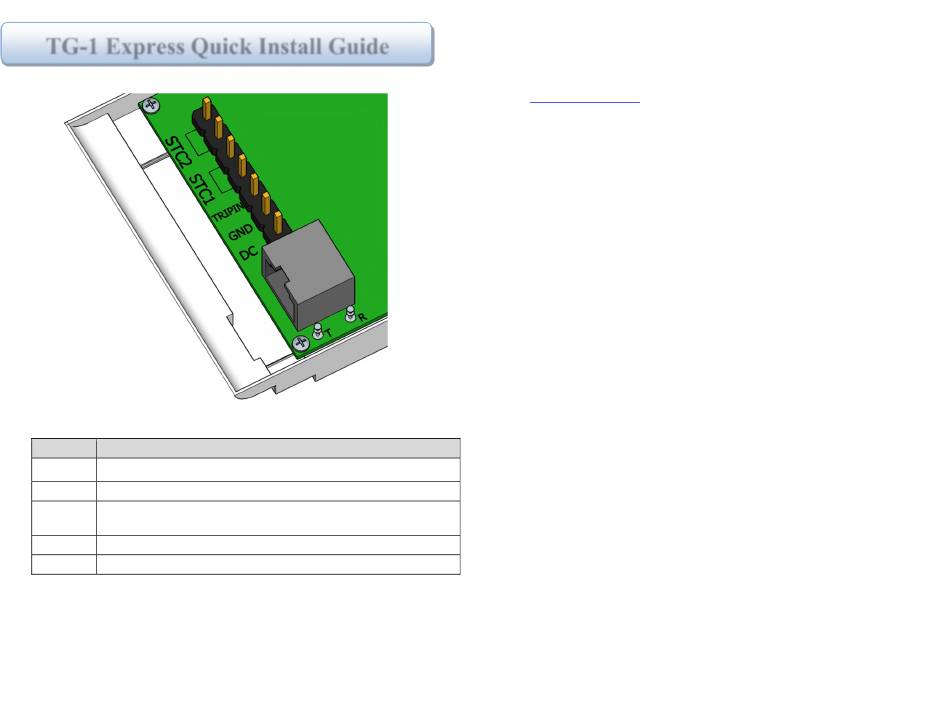

Pin Description
STC2 Connect to 24-Hour N.C. Zone on panel for supervision.
STC1 Connect to 24-Hour N.O. Zone on panel for supervision
TRIPIN Connect to external relay/sensor or to the panel for Home
Control Flex.
DC Connect to panel auxiliary power.
GND Connect to panel auxiliary ground.
56049302
Register for Telguard Service
1
The registration form may be completed online through our 24/7 dealer
portal www.telguard.com.
Connect Dialer and Power to the TG-1 Express
2
Connect the alarm panel's dialer to the RJ-45 jack on the TG-1 Express.
If using the Single Line Interface Cable (SLIC) for power, connect the
supplied RJ-45 cable's orange wire to the alarm panel's ground and its blue
wire to the panel's auxiliary power. If using the terminal block, connect pins
6 and 7 (labeled GND and DC) to the panel's ground and power,
respectively.
3 Connect the Antenna and Place the Unit
Connect the antenna to the antenna port, and press the RSSI button on
the side of the unit to put the LEDs into RSSI display mode. When you have
found a location that provides 2 bars or more (LEDs 4 and 5 solid) and more
than 1 cellular tower (LED 1 solid), install the mounting screws and attach
the TG-1 Express to the mounting screws. Press the RSSI button again to
return the LEDs to normal display mode.
Activate the TG-1 Express
4
The last step is to trigger an alarm from the panel to activate the TG-1
Express. Note that the first alarm will activate the TG-1 Express with the
Telguard Communication Center, and will not be sent to the central station.
