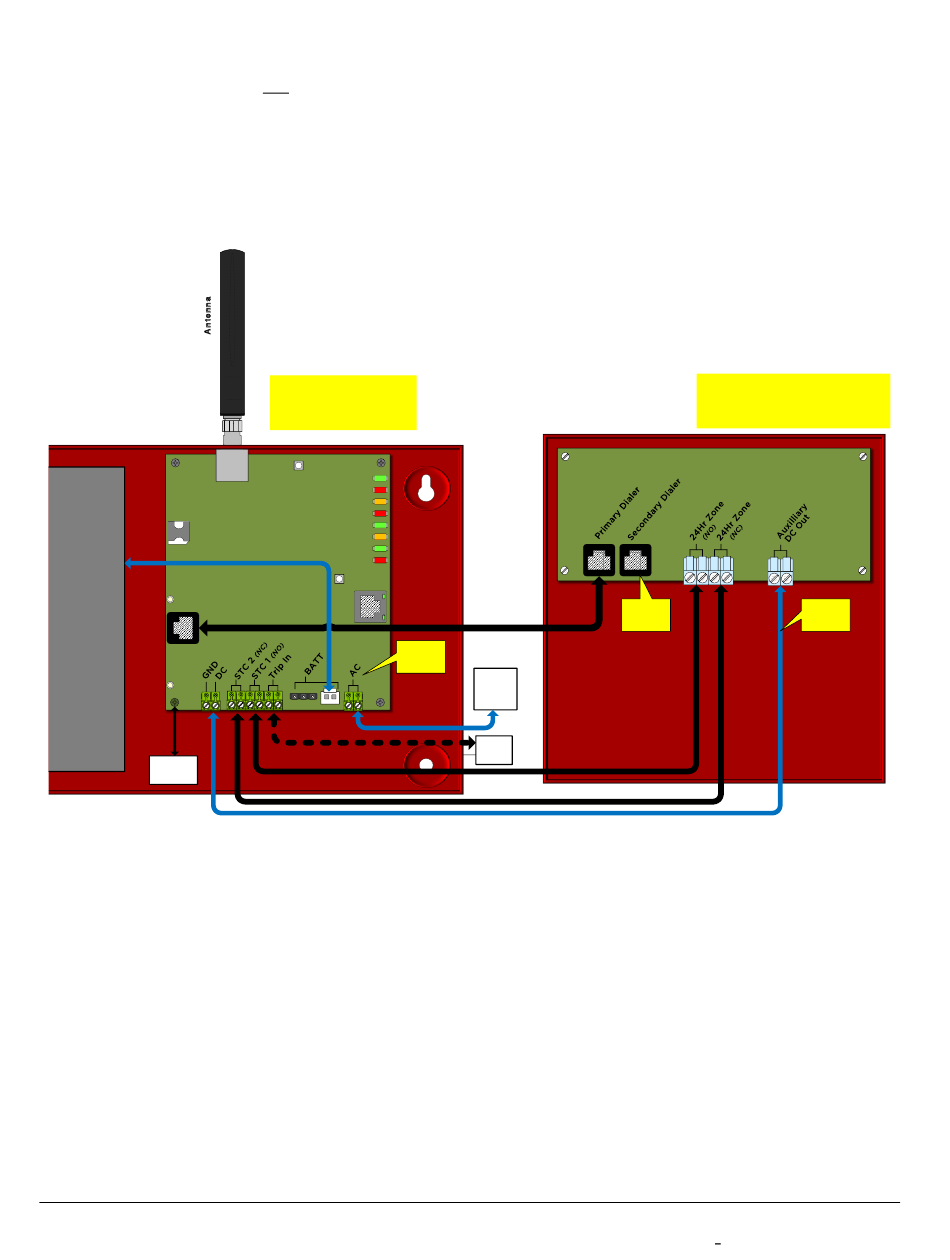

Cellular-Only Wiring (When Communicator is Only Path Used):
This configuration is used when the communicator is set to cellular only mode and is working in a
system that does not involve a Telco connection or a secondary path. In this case, the alarm panel
is connected directly to the communicator, and there is no other form of communication that is
active. For commercial fire installations, a specific level of link supervision may be required
(frequencies of 180 seconds, 5 minutes, or 60 minutes).
In this configuration, the LAN connection is not being used or monitored by the communicator. This
configuration provides for Active communication for Canadian fire systems and P2 line security for
Canadian burglary systems.
Battery
EARTH
GROUND
TG-7 Dual Path Series Installation & Operating Guide
NOTE 1: Use either AC Power
(from Adapter) with Battery
or use DC Power (from Panel).
LED1
LED2
LED3
LED4
LED5
LED6
LED7
LED8
NOTE 1
NOTE 2
AC
Plug-in
Adapter
TRIP
INPUT
24 56052601
NOTE 2: Secondary dialer on FACP must
be disabled, or connections spliced.
See Appendix 3 for instructions.
