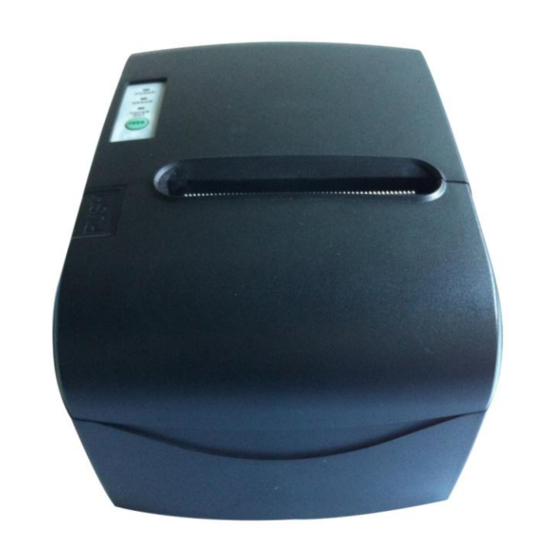

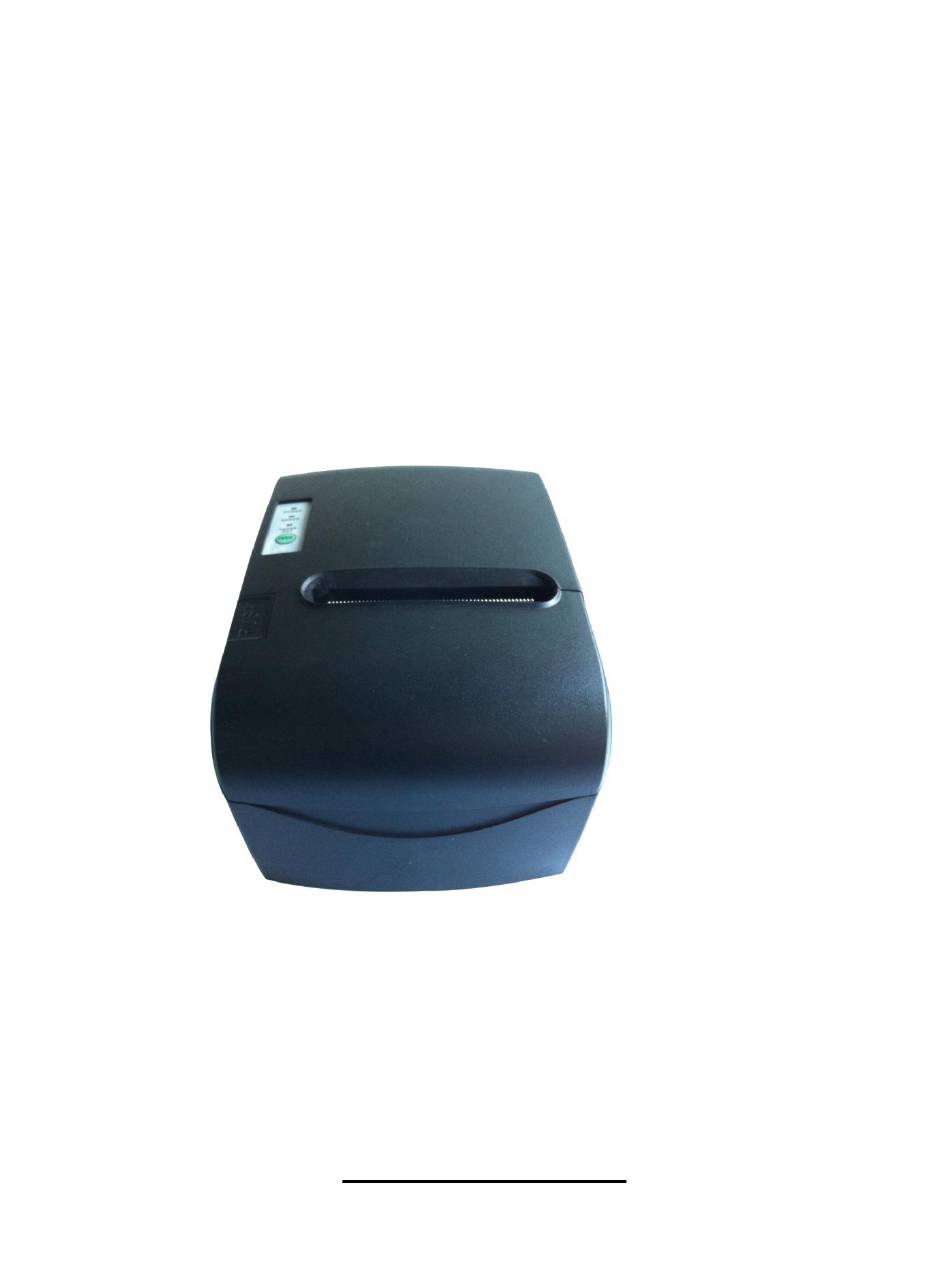

- Page 1 SPRT ® POS Thermal printer user manual （SP-POS88Ⅵ） （Ver 1.02） Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
Contents Brief Introduction............................1 Chapter 1 Feature and Performance...................... 1 1.1 Print Performance........................1 1.2 Print Paper..........................2 1.3 Print Font............................2 1.4 Interface............................2 1.5 Print Control Commands......................3 1.6 Power Supply..........................3 1.7 Operation Environment.......................3 1.8 Outline Dimension........................3 1.9 Model classification........................4 Chapter 2 Operation instruction....................... -
Page 3: Brief Introduction
Brief Introduction SP-POS88VI printer is a new type line thermal printer, which features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. SP-POS88VI printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
1.2 Print Paper Thermal paper roll model：TF50KS－E（Japan paper co.ltd） ● AF50KS-E(JUJO THERMAL) ●Thermal paper roll: Width－－－ 79.5xф80mm（max） Outer Diameter －－－ 80mm（max.） Inner Diameter－－－ 13mm（min.） Thickness －－－ 0.06mm～0.08mm 1.3 Print Font ● ANK Character Set : 12×24 dots，1.5（W）×3.00（H）mm ●GB2312-80(Chinese): 24×24 dots，3.00（W）×3.00（H）mm 1.4 Interface RS－232C Serial Interface ●... -
Page 5: Print Control Commands
Cash Drawer Control ● ： DC24V，1A，6-pin RJ-11 socket. 1.5 Print Control Commands Character print commands: support double-width, double height print of ANK ● characters, user-defined characters and Chinese characters, the character line spacing is adjustable. Graphics print commands: support the print of bit-map graphics and download ●... -
Page 6: Model Classification
1.9 Model classification Model Interface SP-POS88ⅥSF RS－232C Serial Interface SP-POS88ⅥS SP-POS88ⅥPF Parallel Interface SP-POS88ⅥP SP-POS88ⅥEF Ethernet Interface SP-POS88ⅥE SP-POS88ⅥUF USB Interface SP-POS88ⅥU SP-POS88VIWF WIFI Interface,USB Interface, Ethernet Interface RS－232C Serial Interface, USB Interface, SP-POS88VIMF Ethernet Interface SP-POS88VIBTF USB Interface, Blutooth2.0 SP-POS88VIBT4F USB Interface, Blutooth4.0... -
Page 7: Chapter 2 Operation Instruction
Chapter 2 Operation instruction 2.1 Printer Appearance Paper Cover Power Indicator（green Status Indicator (red) Paper-end Indicator (red) Paper Feed Decap button Paper-out slot Cutter cover... -
Page 8: Paper Installation
Power Switch Cash driver interface Interface socket Power socket 2.2 Paper Installation 2.2.1 Paper Loading POS88Ⅵ adopts 79.5mm width thermal paper roll. Steps of Loading Thermal Paper Are as below: Hold down the upper cover button on the left side, open the movable upper cover and put the paper roll into it, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 9: Interface
The printer will recover automatically from Cutting Error. 2.3 Interface 2.3.1 Serial Interface The serial interface of SP-POS88VI printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB25 socket (female). The pin order of the serial port is as Fig.2-2 shows: Fig.2-2 Pin Order of Serial Port... - Page 10 The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-POS88VI can be connected to standard RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-4.
-
Page 11: Parallel Interface
Host Printer receives data from host Printer The same as CTS Printer When this is “MARK” status, it means the printer is “busy” and can’t receive the data. When this is “SPACE” status, it means the printer is “ready” to receive the data. - Page 12 Answer pulse, LOW level signal indicates that data have already been received and the printer gets ready to receive the next data. BUSY HIGH level signal indicates that the printer is BUSY and can not receive data. HIGH level signal indicates that paper is end.
-
Page 13: Cash Drawer Interface
2.3.3 Cash Drawer Interface The cash drawer interface of POS-POS88VI adopts RJ-11 6-pin socket, as Fig.2-7 shows: Fig.2-7 Cash Drawer Interface The pin assignment is as below： Pin No. Signal Direction Chassis Ground —— Cash drawer driver signal 1 Cash drawer on/off status signal +24VDC ——... -
Page 14: Power Connection
Cash drawer driver signal 2 Signal ground —— 2.3.7 Power Connection SP-POS88Ⅵ uses the external power supply adopter as 24V±10％、2A, power socket is A-1009-3P model, as Fig. 2-10 shows: Pin No. Signal +24VDC Ground The pin assignment is as above： 2.4 Indicator, buzzer and button There is one button, one buzzer and three indicators on POS88VI printer. - Page 15 The red ERROR light is error status indicator. It is off when the printer works normally; while it flashes, the printer has abnormal alarm. If ERROR indicator flashes and the buzzer sounds, it means the printer has error. According to different flashing types, the different errors of printer are indicated: 1.
-
Page 16: Turn On The Printer
Automatic LED continues flashing ： the recoverable temperature of printing head is error over high and the cover is wrong 2.5 Turn on the printer When the printer is off and paper case cover is closed, press the POWER button to turn on the printer. -
Page 17: Printer Parameter Settings
2.8 Printer parameter Settings This function is for the setup of parameters. Steps for setting parameters: When printer power is off, open paper case cover firstly, then press the 【FEED】 button and turn on the printer. After status indicator and paper out indicator flash twice alternatively, press 【FEED】 button twice, then close pape case cover. -
Page 18: Appendix A: Parameter Setting
Appendix A: Parameter setting This appendix is the method to set default parameters of printer by buttons. Setup instruction: use the button of 【 paper case cover】 to choose the setting items, change the item by press the button【paper case cover】, and print out the current value. - Page 19 Buzzer ： FEED FEED FEED Error ON ALL ON Cut ON FEED Re-printing lack of paper： FEED FEED Black label mode ： FEED FEED...
