FUNCTIONS
STEP MODE
Step mode is two adjustable modes that enable you to quickly repeat a preset value
of the saw cut. When you want to use Step mode, the machine remembers where the
sawhead was positioned when the last cut was made. This means that the sawhead
will be lowered to the position of the last cut plus the selected value. The movements
are kerf-compensated, i.e. if you use a preset value of 25 mm, the sawn board will be
25 mm. The sawhead has then actually moved 25 mm + 1.9 mm = a kerf-compensated
25 mm board.
SETTING STEP MODE

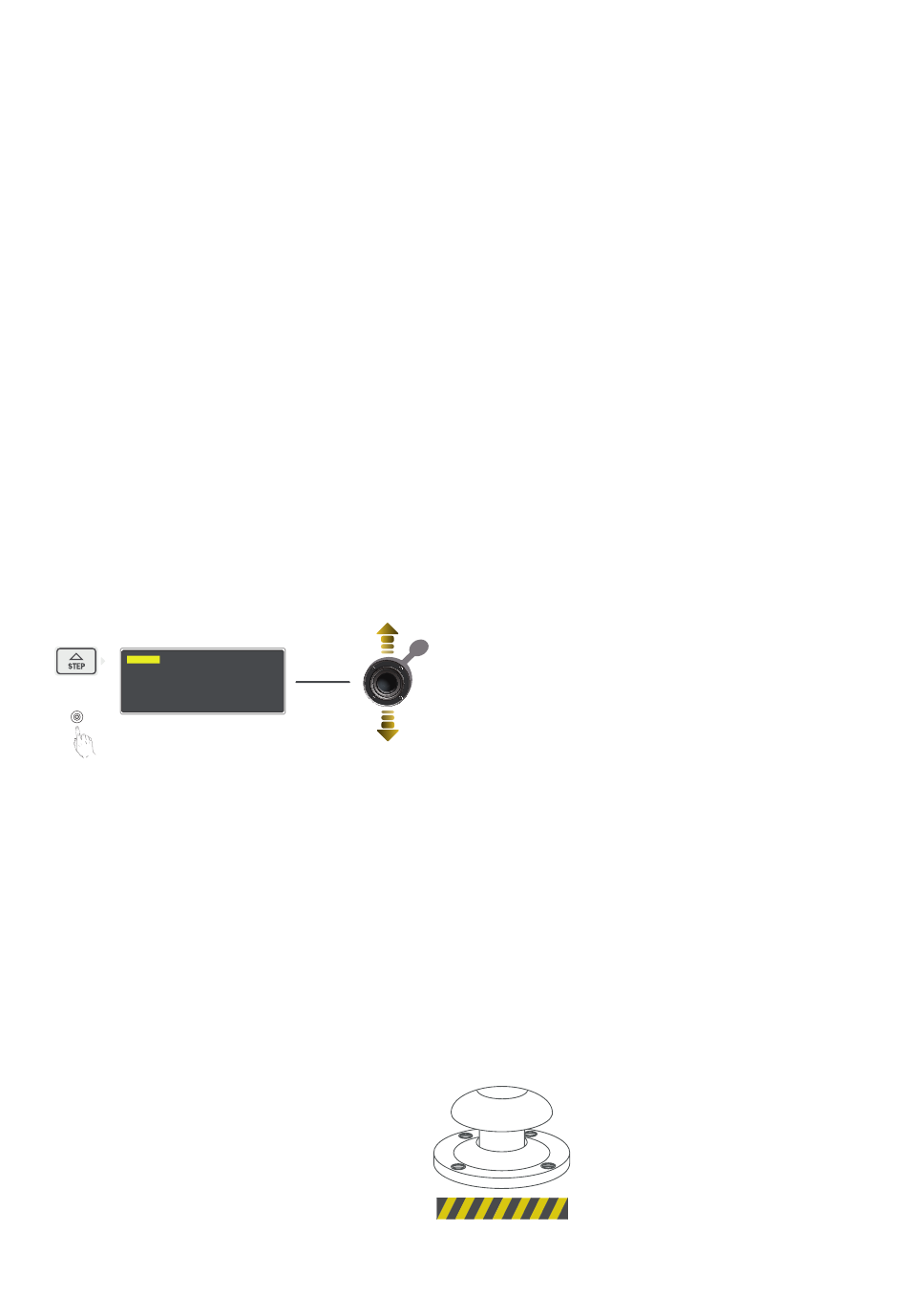

Set the Step mode by pressing down one of the step keys. This has
to be done with the Smart Set in its standby mode. Keep the sawing
dimension key pressed down and then enter the desired value using
the control lever. The value will be shown on the display next to the
key to which the relevant command is connected.
25.50
STEP MODE
HOLD
USING STEP MODE
The Step mode is activated by pressing one of the preset step keys. The value will then
be shown on the display and the display's colours are inverted. To activate the command,
you push the control lever forward. The sawhead is now lowered down to the position
of the previous cut plus the selected value and the display's colours are restored when
the sawhead reaches its position. The idea is thus that you can make a cut, raise the
sawhead to be able to bring it back over the sawn board, and then use the step function
to move the sawhead and cut a new board with exactly the same measurements as the
last one.
TURNING OFF SMART SET
Upon completion of work, the machine is
turned off by pressing the emergency stop
on the top of the control unit.
