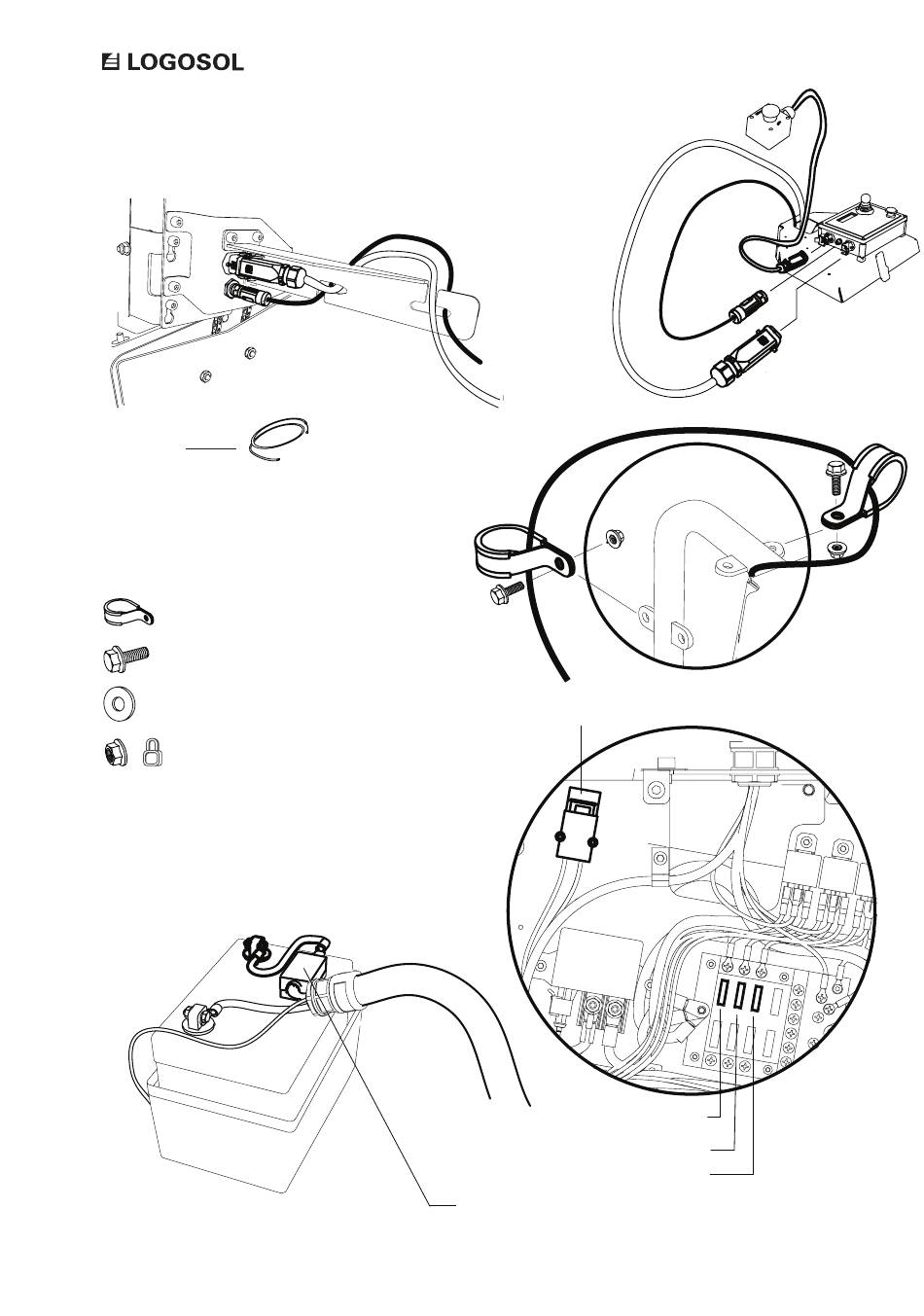

CONNECTION EMERGENCY STOP AND CONTROL BOX
05-00004 05-00004
When installing a rail extension on the log bed,
extension cable 05-00004 is required, 1 cable
extension per 2 extensions.
INSTALLING CONTROL CABLE
2 x
2 x – M6x20
2 x – M6
2 x – M6
FUSES
The machine has a number of fuses, some at the
top of the battery and four fuses on the upper part
of the component panel. Ampere and function are
shown in the illustration.
26
Feed to Smart Set
Midi/ATO 10A
Control Box
Midi/ATO 30A
Start circuit solenoid
Midi/ATO 10A
Hold circuit solenoid
Midi/ATO 10A
Stop signal motor
Midi ISO 8820-5:25 32V 120A
Main fuse
