FUNCTIONS

Control unit

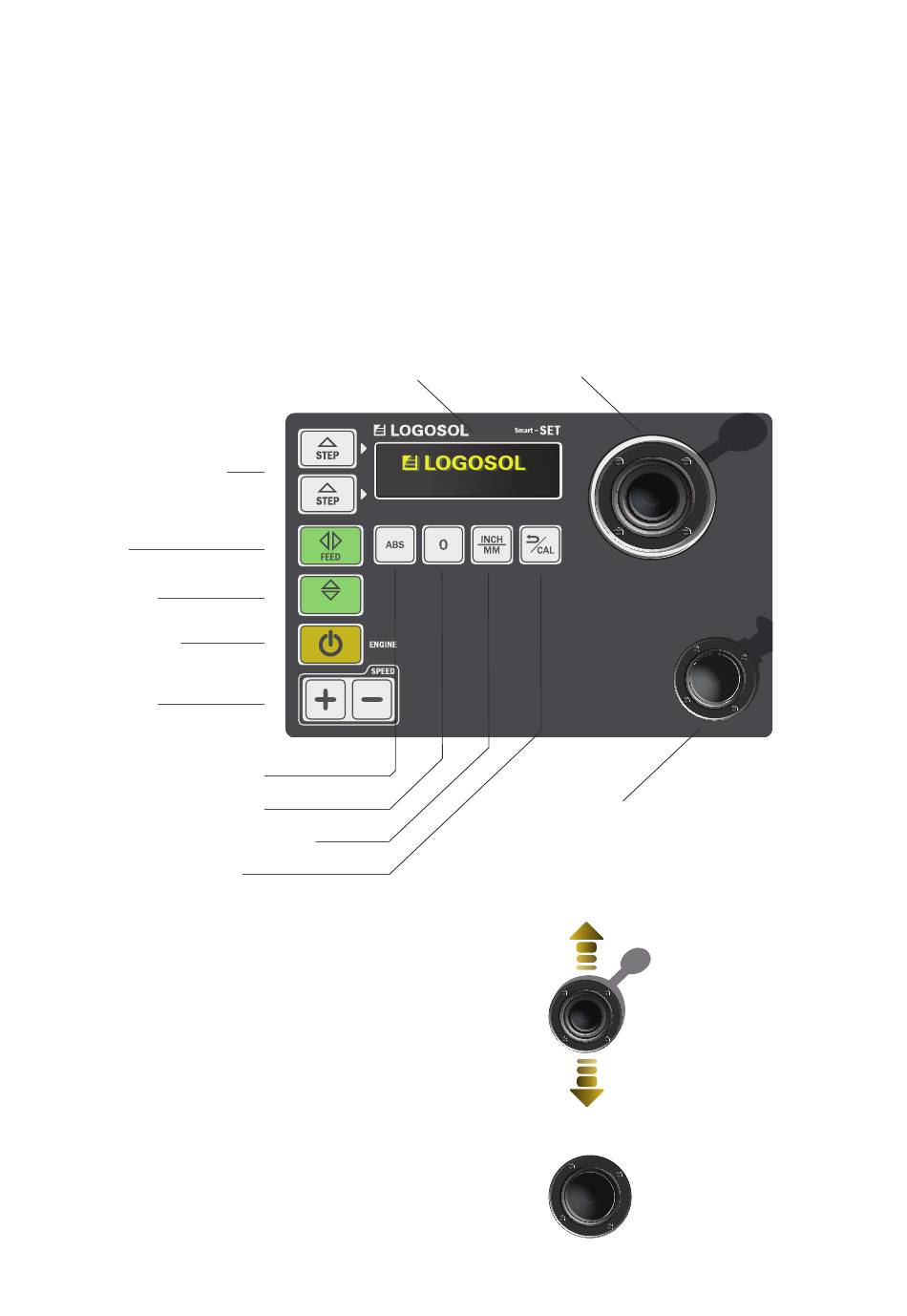

The Logosol Smart Set control unit includes a display, a number of programs and settings buttons, as well
as an enabling switch button and a control lever. To use the different functions, select the desired function
on the control panel. To subsequently execute the command, the enabling switch button must be pressed
in at the same time as the operation is performed with the operating lever. If the enabling switch button
is released, the machine stops.
Sawing dimensions
Feed
Up/down
Start engine
Feed rate
Absolute measurements
Relative measurements
Measurement unit inch/mm
Calibration, cancel
Control lever
The control lever of the Smart Set control unit
is progressive, i.e. it performs operations at an
increasing rate depending on how far from the
centre it is pushed.
Enabling switch button
The enabling switch button is a safety function.
It is superior to the control unit and has to
be kept pressed down if the machine is to
be activated.
Display
Control lever
/
UP DOWN
Enabling switch button
The control lever is only used
in the directions forward/back.
