FUNCTIONS
Calibration
At each start-up, the machine asks for the measurement between the sawblade and the log
bed. If the value shown on the display does not agree with the value on the machine scale,
the calibration value has been changed and the machine has to be recalibrated. This operation
is performed in the calibration mode.
WARNING! In calibration mode, the software that controls the end positions of the
sawhead is not active, it is thus possible to run the sawhead so that it mechanically
crashes, which can lead to damage to the mechanics and the sawhead falling down.

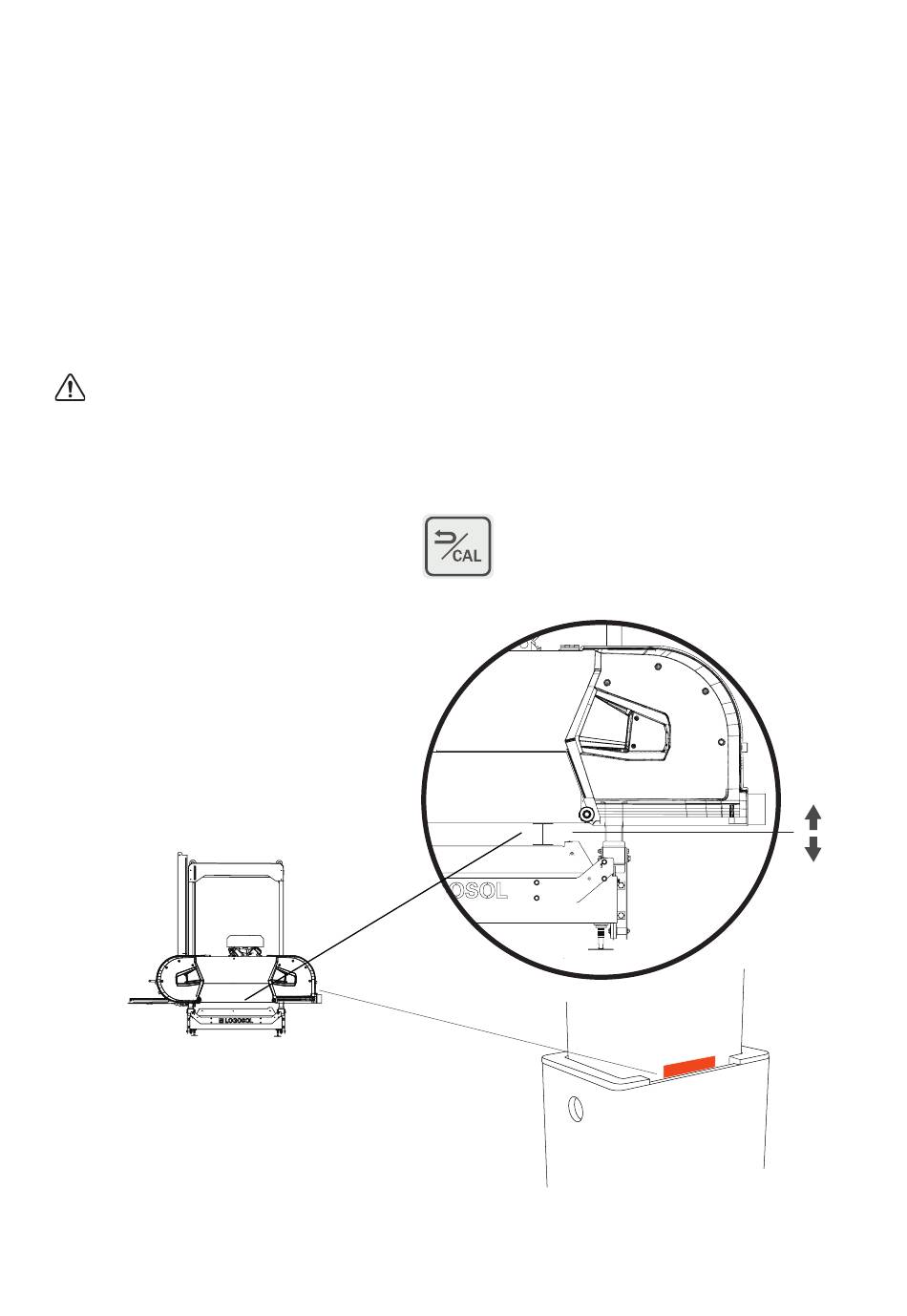

If, during operation, you suspect that the value
on the display does not agree with the actual
position of the sawblade, you can use the
Cal key to put the machine in the calibration
mode. Restart Smart Set and press the Cal
button after the start process. You then move
the sawblade with the control lever until it comes
to the calibration value 100 mm from the log
bed. Be careful when measuring the position
of the saw blade. The precision when positioning
the saw blade will directly reflect the accuracy
of the dimensions of the sawn timber.
One tip is to put a mark for the calibration
position on the bogie leg after your first
calibration. This facilitates rough adjustments
when it is time for the next calibration.
