EVALUATION BOARD HARDWARE

The EVAL-ADMV4630Z comes with an on-board ADMV4630 chip.
When evaluating the ADMV4630
an RF signal generator. The EVAL-ADMV4630Z runs on a 5 V dc
supply. Connect the 5 V dc supply to the VCC_5V test point and the
ground to the GND1 test point.
analog.com
device, connect the IF input to

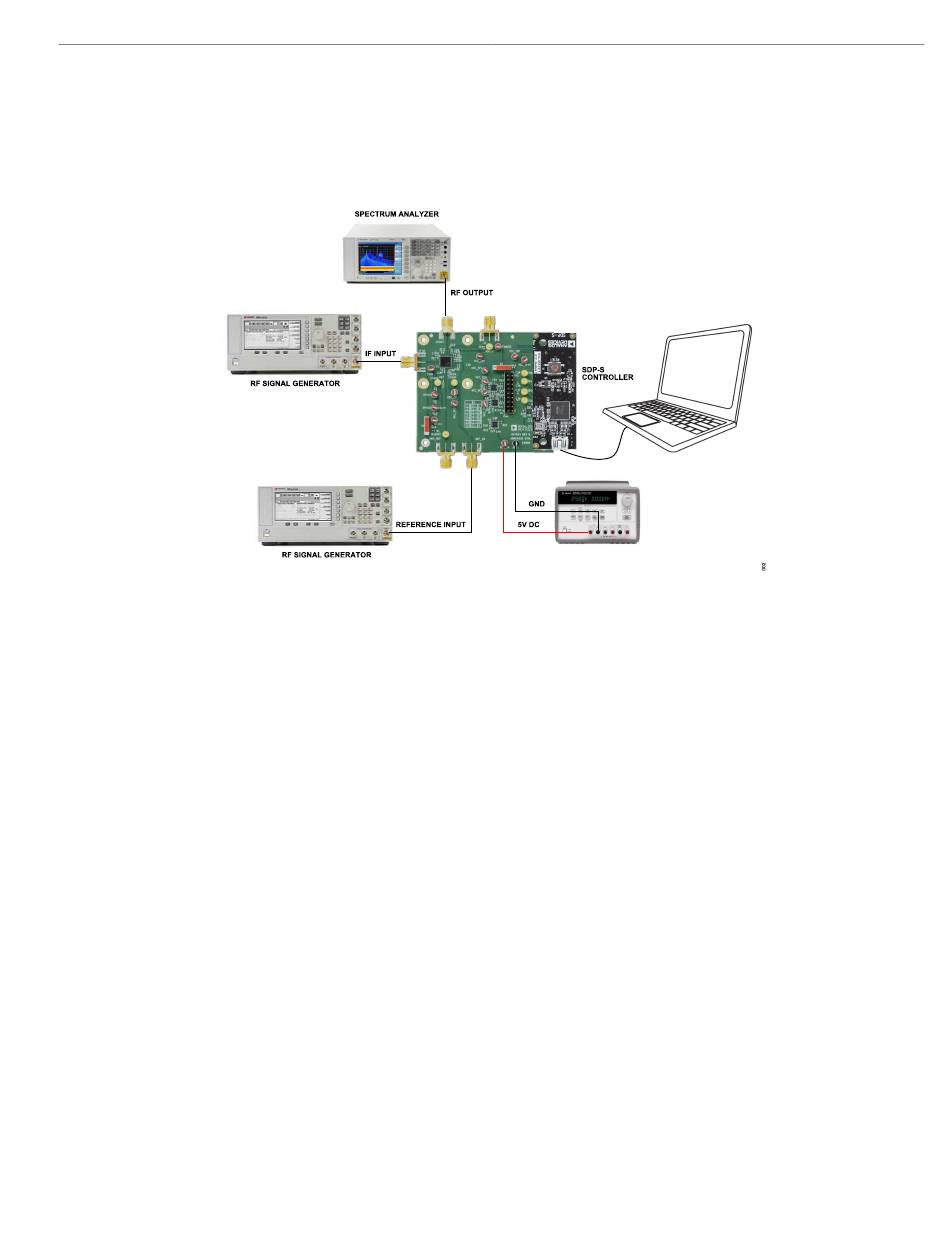

Figure 2. Lab Bench Setup
EVAL-ADMV4630
Figure 2 shows the block diagram of the EVAL-ADMV4630Z lab
bench setup.
