OnCell G2100 Series User's Manual

Answering a CSD Connection

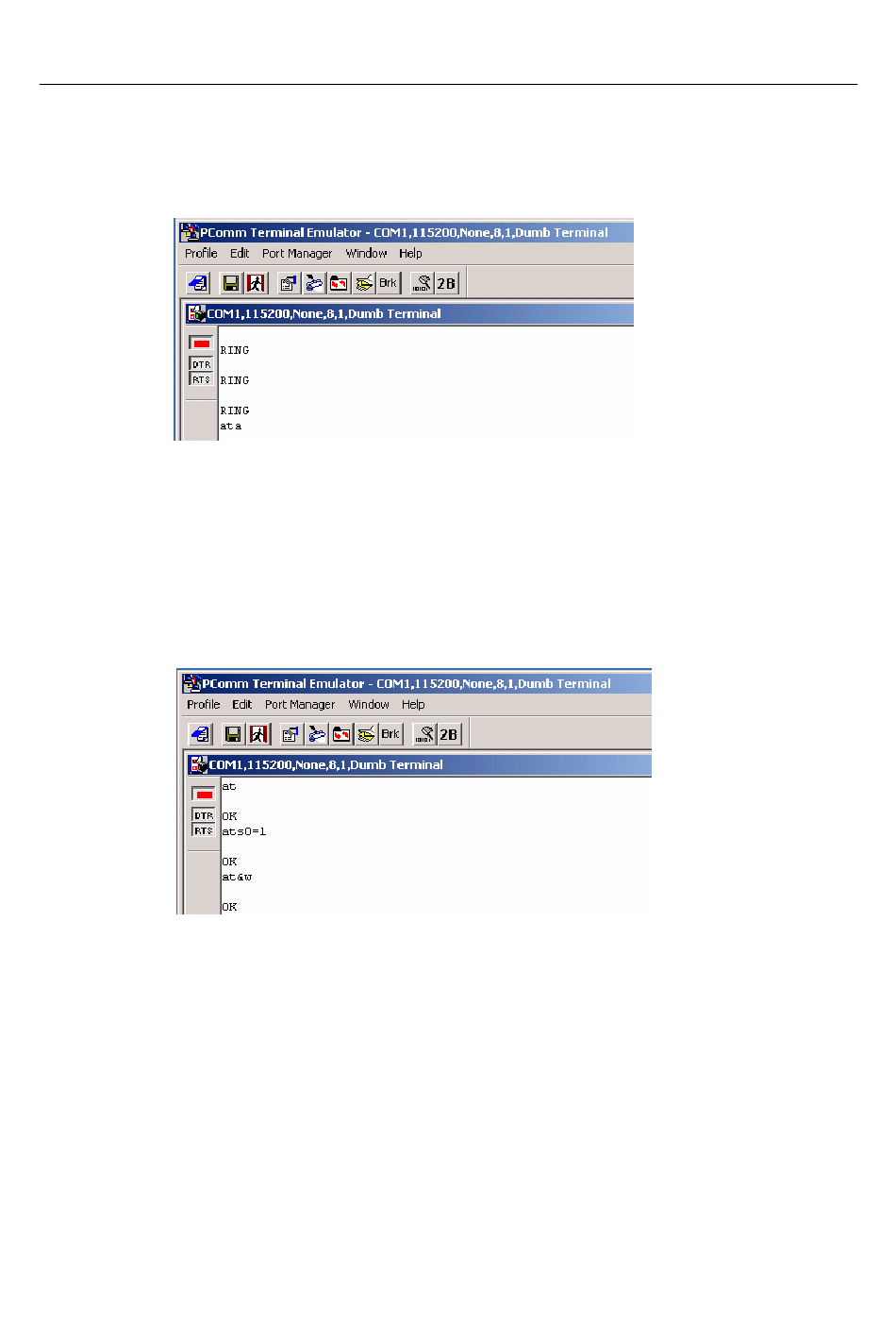

PComm Terminal Emulator can be used to answer a CSD call manually:
1. When the terminal displays "RING", type ATA and press Enter.
2. Check the GSM indicator on the front panel. If the LED is on and an amber color, the CSD
connection has been established successfully. The modem will automatically switch to data
mode. At this point, you can proceed with data communication.
PComm Terminal Emulator can be used to configure the modem to answer CSD calls
automatically:
1. In the terminal window, type ATS0=x and press Enter. For x, substitute the number of rings
that the modem should receive before answering the call. For example, to answer after the first
ring, type ATS0=1.
2. Type AT&W and press Enter.
To disconnect the modem, type +++. The modem will respond with OK, which means that you
have already switched back to command mode. Type ATH and press Enter to disconnect.
5-4
GSM/CSD Connection
