OnCell G3101/G3201 Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 2.1, August 2016
Technical Support Contact Information
www.moxa.com/support
2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802031010012
*1802031010012*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies OnCell G3101 Series
Summary of Contents for Moxa Technologies OnCell G3101 Series

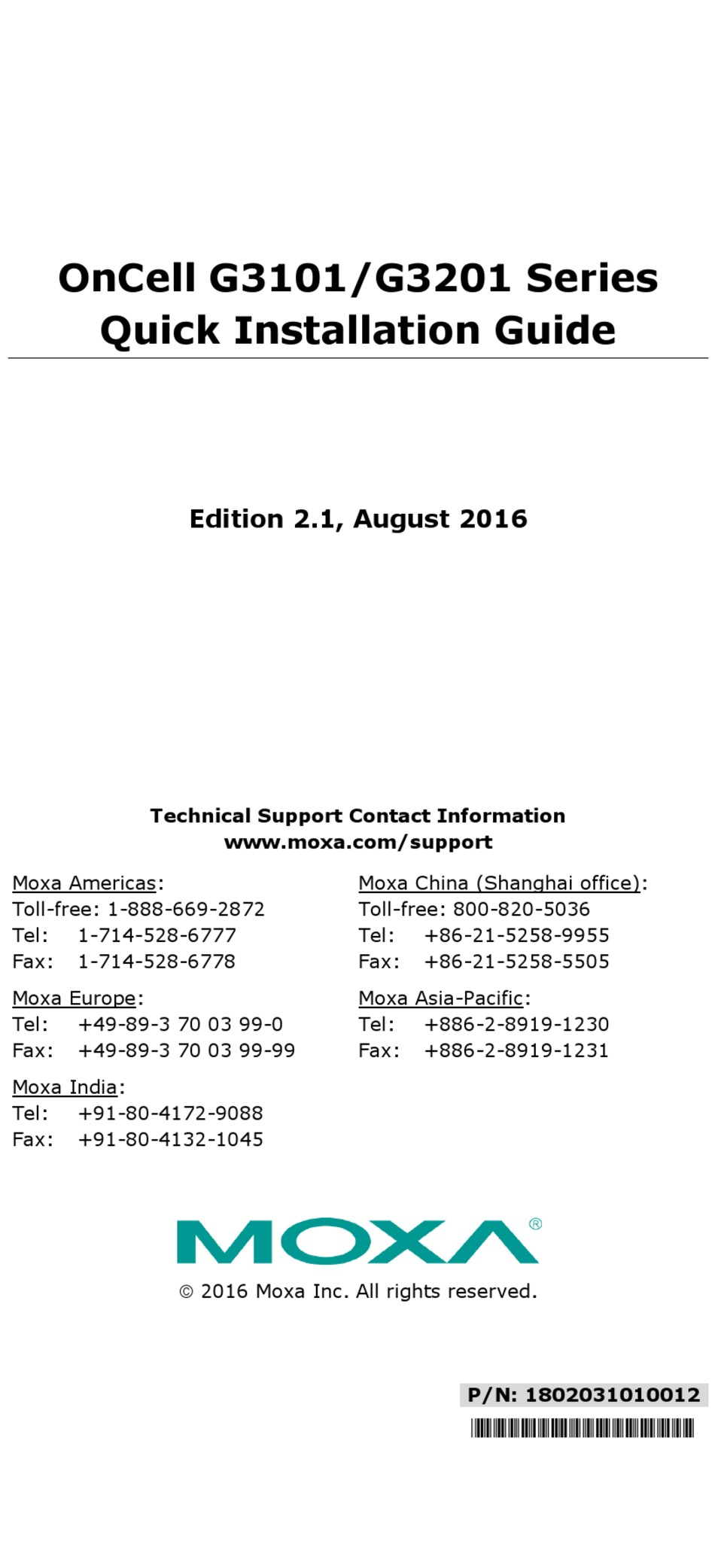

- Page 1 OnCell G3101/G3201 Series Quick Installation Guide Edition 2.1, August 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...
- Page 2 Overview There are currently four models in the OnCell G3101/G3201 series of IP-modems: the OnCell G3111, OnCell G3151, OnCell G3211, and OnCell G3251. The main difference between the models is the serial interface type and number of ports. The OnCell G3101/G3201 industrial RS-232, RS-232/422/485 GSM/GPRS IP modems are some of the most affordable, and versatile products available in the cellular networking market today.
- Page 3 Hardware Introduction Top View Front Views Rear Views Bottom Views Reset Button Press and hold the Reset button for 5 second to load factory defaults: Use a pointed object, such as a straightened paper clip or toothpick, to press the reset button. This will cause the Ready LED to blink on and off. The factory defaults will be loaded once the Ready LED stops blinking (after about 5 seconds).
- Page 4 LED Indicators The LED indicators on the front panel of the OnCell G3101/G3201 are described in the following table. Type Color LED Function Green Activation of DC Power. Power is off, or power error condition exists. Green The serial port is transmitting data. Amber The serial port is receiving data.
- Page 5 DIN-Rail Mounting The OnCell G3101 and G3201 series have built-in “ears” for attaching the IP modem to a wall or the inside of a cabinet. We suggest using two screws per ear to attach the IP modem to a wall or the inside of a cabinet.
- Page 6 Specifications Cellular Interface Standards GSM/GPRS Band Options Quad-band 850/900 and 1800/1900 MHz GPRS Multi-slot Class Class 10 GPRS Terminal Device Class B Class GPRS Coding Schemes CS1 to CS4 Tx Power 1 watt GSM 1800/1900, 2 watts EGSM 850/900 SIM Control LAN Interface Number of Ports 1 (For configuration only)
- Page 7 Environmental Limits Operating Temperature -30 to 55°C (-22 to 131°F) Operating Humidity 5 to 95% RH Storage Temperature -40 to 75°C (-40 to 167°F) Regulatory Approvals CE Class A , FCC Class A, UL Warranty Warranty Period 5 years - 7 -...
