Signal Strength Monitor

The following instructions illustrate how to configure the serial communication parameters using
Configurator.
1. Connect the RS-232 port of the OnCell G2100 Series modem to a host PC. On the OnCell
G2150I, make sure the RS-232 port is connected and DIP switch 1 is set to ON.
ATTENTION
The RS-232 connector uses the standard pinouts. A direct male DB9 to female DB9 cable, such as
Moxa's CBL-F9M9-150 (100 cm) or CBL-F9M9-20 (20 cm), can be used to connect to a PC's
serial port. If you use a USB-to-serial product to configure the OnCell G2100 Series modem, we
strongly recommend using Moxa's UPort 1110. Other USB-to-serial products may cause
unexpected errors when configuring the OnCell G2100 Series modem.

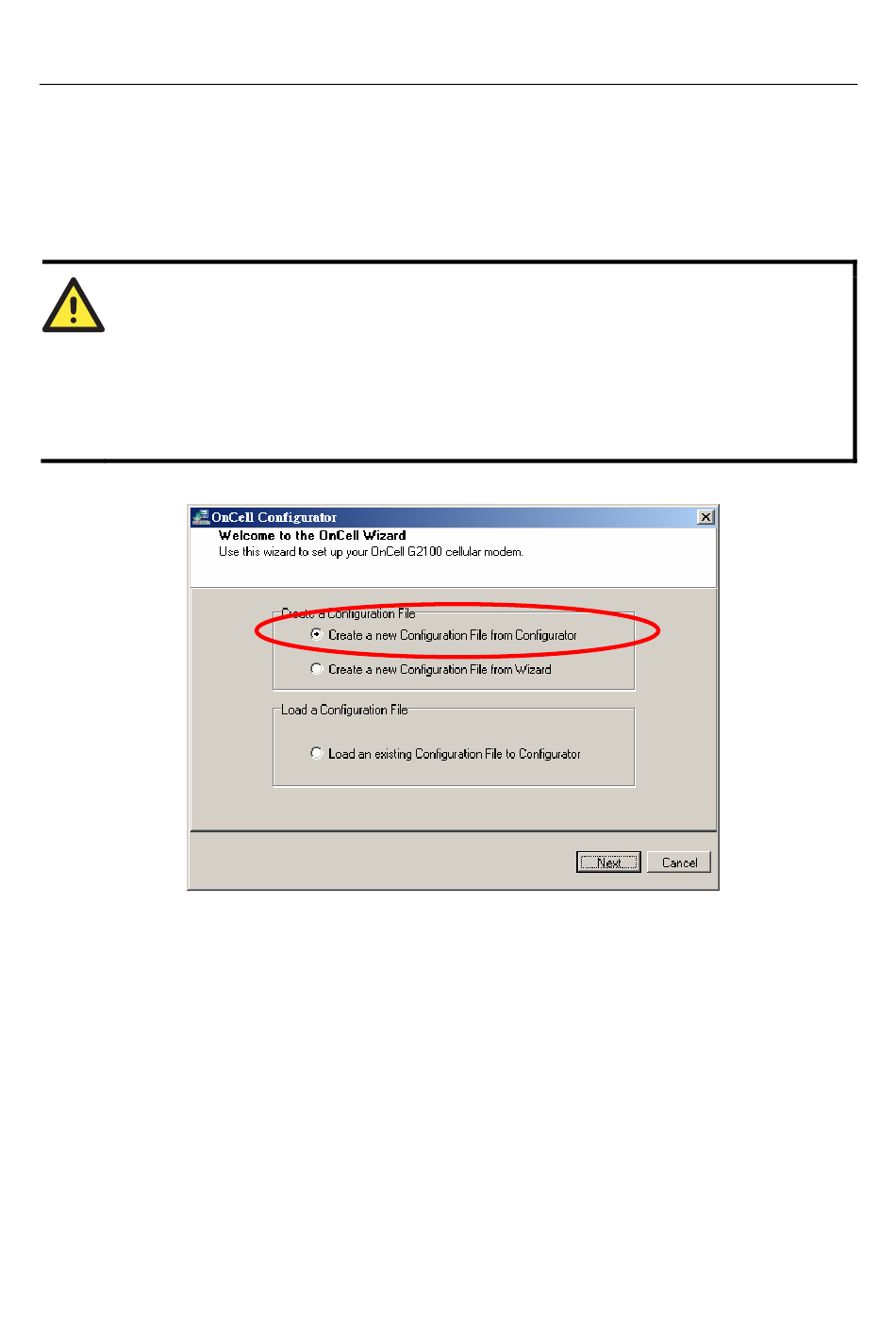

2. Start OnCell Configurator and select the Create a new Configuration File from
Configurator option.
3-30
OnCell Configurator
