OnCell G2100 SeriesI User's Manual

Configuring the PIN Setting

The following instructions explain how to configure the PIN code using Configurator.
1. Connect the RS-232 port of the OnCell G2100 Series modem to a host PC. On the OnCell
G2150I, make sure the RS-232 port is connected and DIP switch 1 is set to ON.

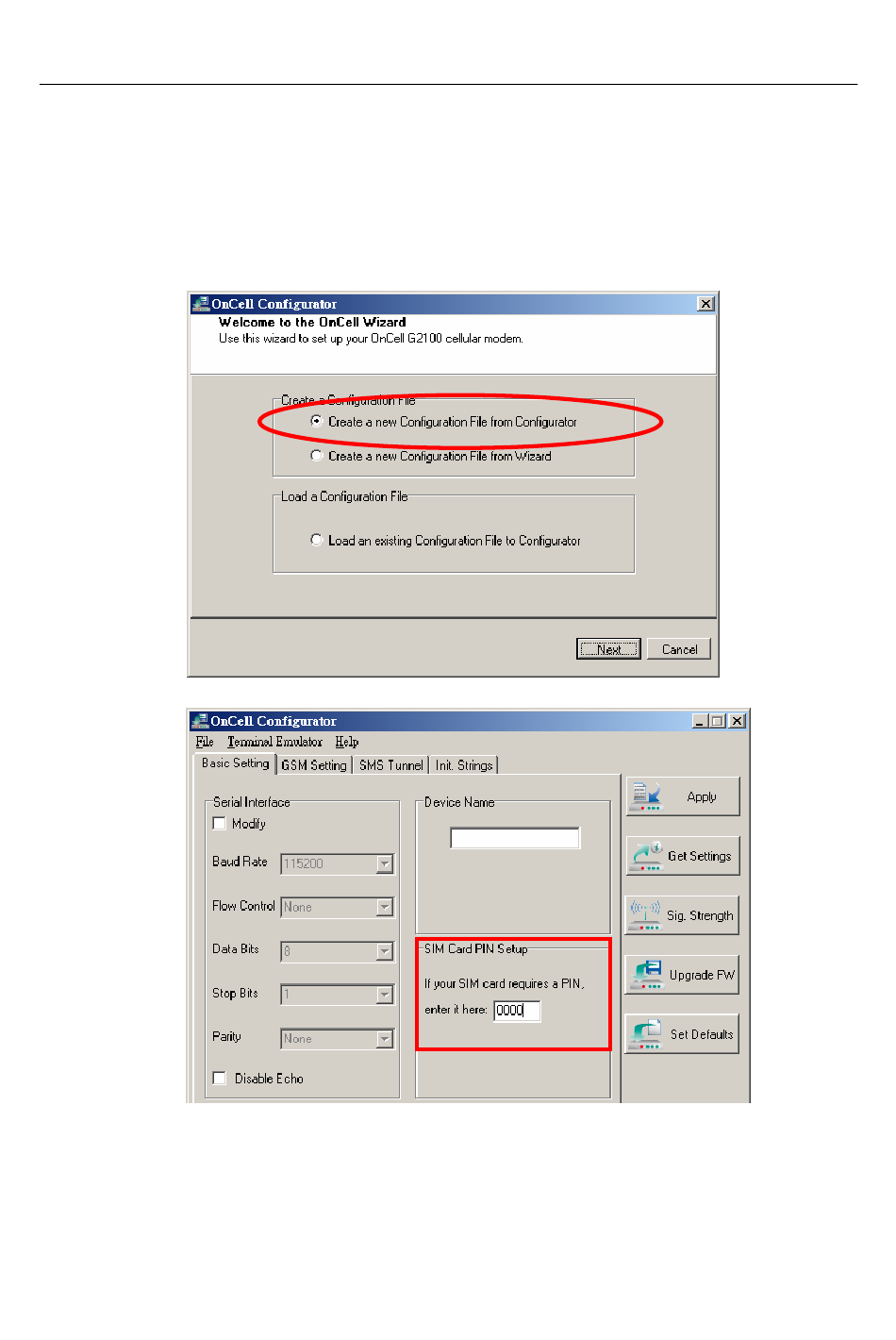

2. Start OnCell Configurator and select the Create a new Configuration File from
Configurator option.
3. On the Basic Setting tab, and enter the correct PIN in the text input box.
3-13
OnCell Configurator
