OnCell G2100 Series User's Manual
2. Type ATD <phone number> and press Enter. For example, type ATD 0289191230 if the
phone number is 0289191230.
3. Check the GSM indicator on the front panel of the modem. If the LED is on and an amber color,
the CSD connection has been established successfully. You can switch to data mode to
proceed with data communication.
4. To close the CSD connection, type +++. The modem will respond with OK to indicate that
you have already switched back to the command mode.
5. Type ATH and press Enter to disconnect.
ATTENTION
+++ is the escape sequence, and ATH is the hang-up command.
For international calls, the local international prefix does not required, but the + character is. You
would type ATD+886289191230.

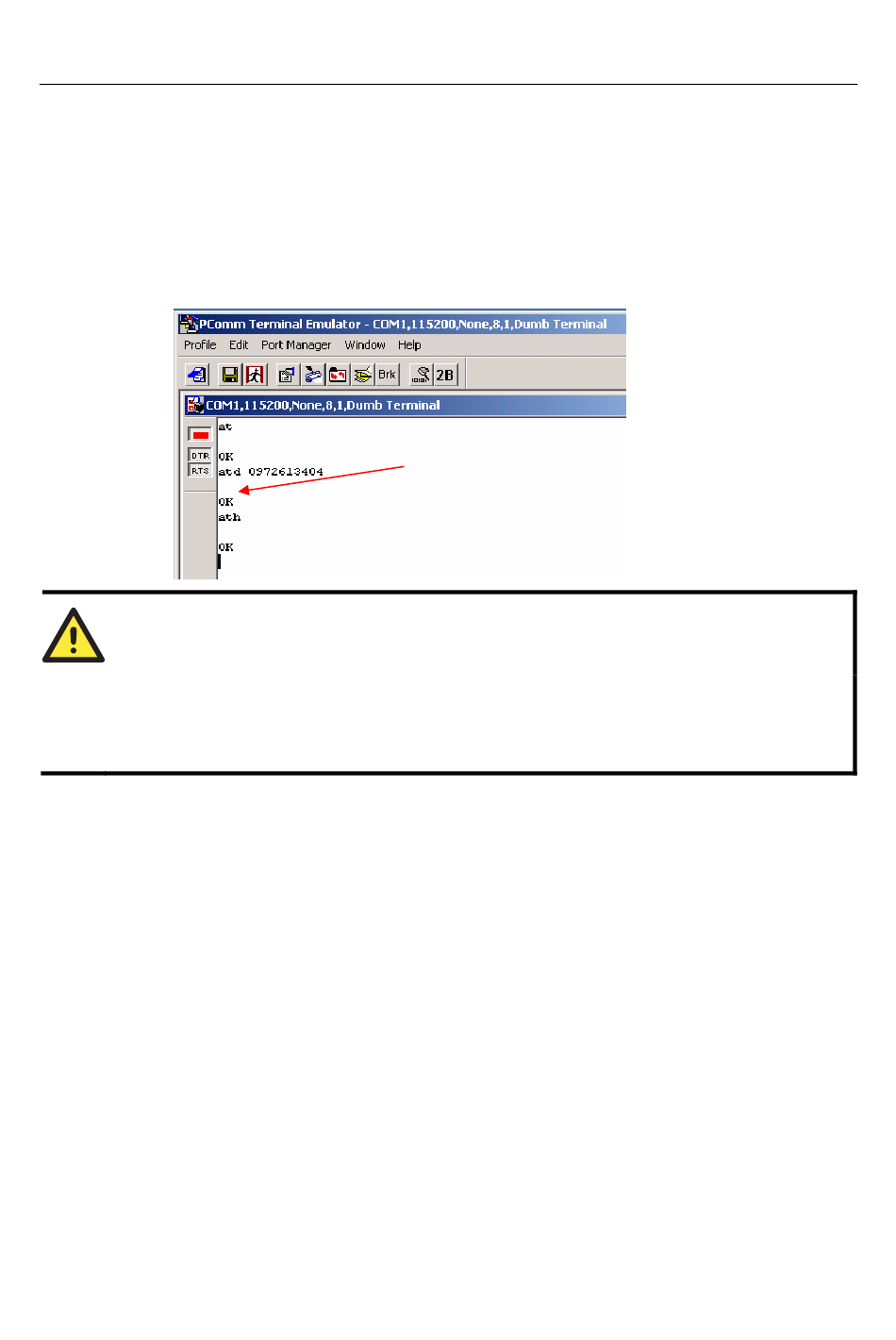

+++ is entered here.
5-3
GSM/CSD Connection
