Moxa Technologies oncell G2100 Series User Manual page 36

OnCell G2100 SeriesI User's Manual

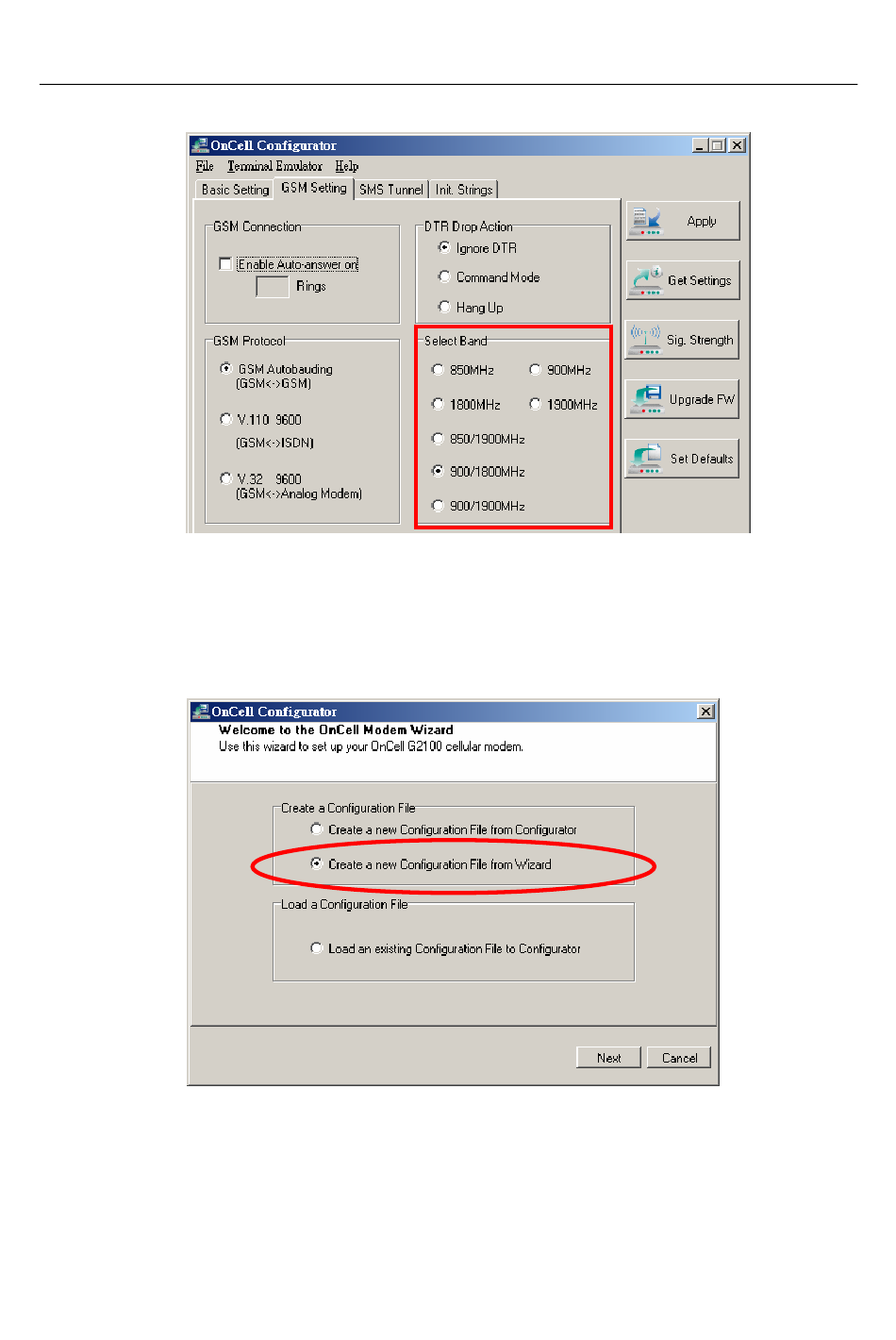

3. On the GSM Setting tab, select the correct radio band for your application.
The following instructions illustrate how to configure the radio band using the Wizard.
1. Connect the RS-232 port of the OnCell G2100 Series modem to a host PC. On the OnCell
G2150I, make sure the RS-232 port is connected and DIP switch 1 is set to ON.
2. Start OnCell Configurator and select the Create a new Configuration File from Wizard
option.
3-16
OnCell Configurator
