OnCell G2100 Series User's Manual

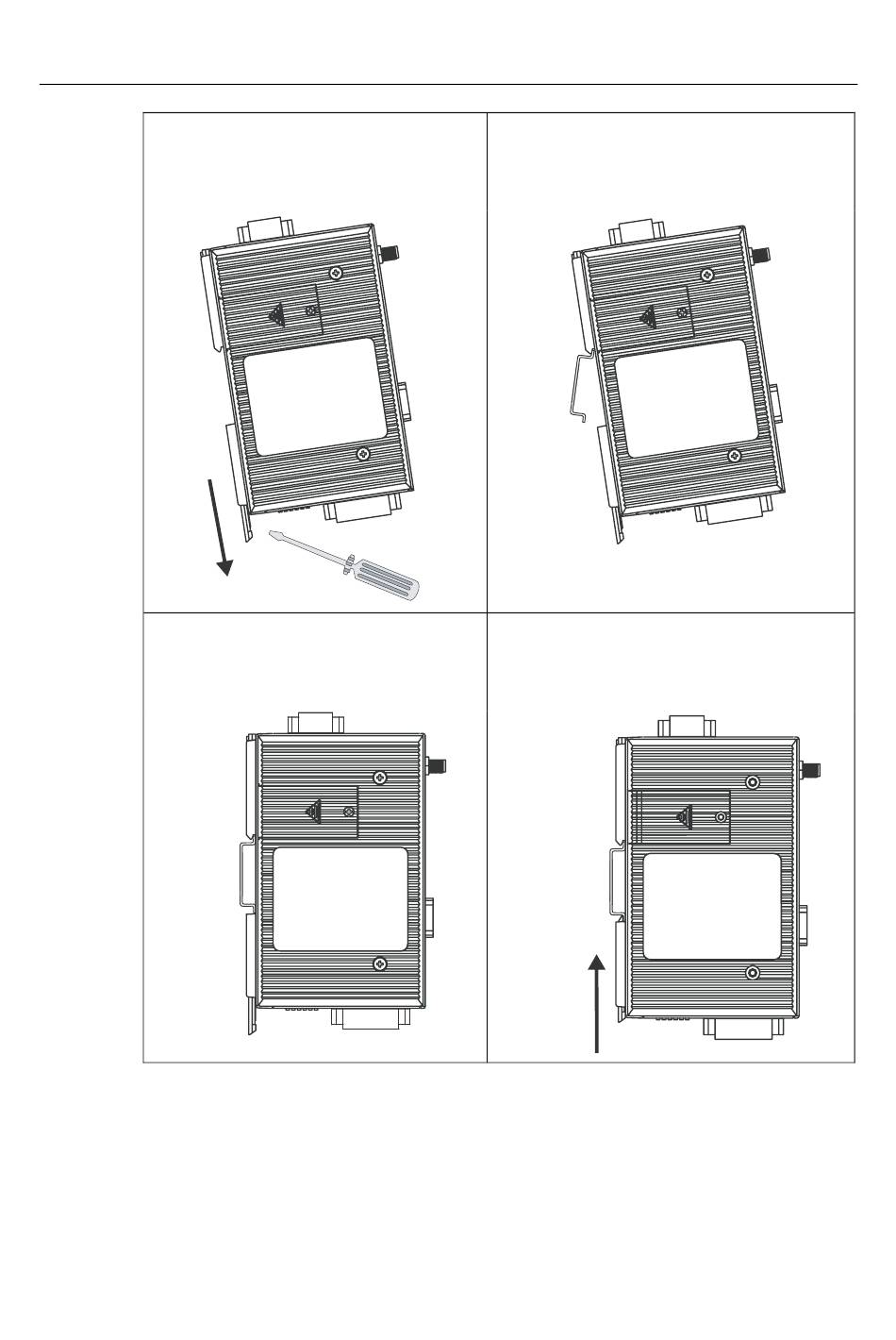

STEP 1:
Use a flat-blade screw driver to pull the
bottom mounting appendage out. It should
snap into place.
STEP 3:
Place the modem flush against the DIN-rail as
shown.
STEP 2:
Hook the modem over the top edge of the
DIN-rail as shown.
STEP 4:
Slide the bottom mounting appendage back in. It
should snap into place over the bottom edge of
the DIN-rail.
2-6
Getting Started
