Moxa Technologies oncell G2100 Series User Manual page 57

OnCell G2100 SeriesI User's Manual

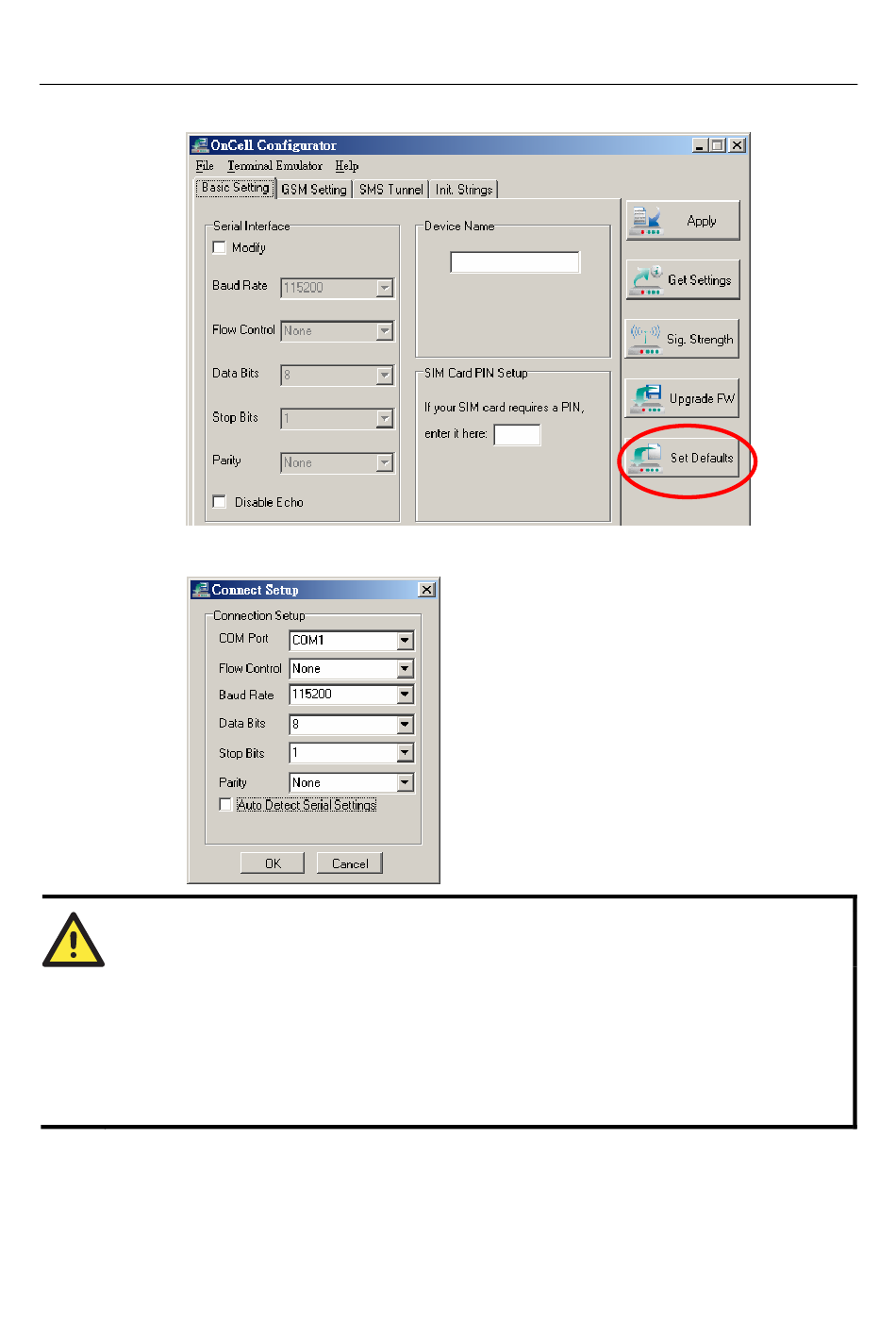

3. Click Set Defaults on the right side of the window.
4. Select the appropriate COM port and communication parameters for connecting to the
modem and click OK to proceed.
ATTENTION
If you are not sure which communication parameters you should use, please select the Auto
Detect Serial Settings option and follow the onscreen instructions. The procedure may take few
minutes to complete. When using the Auto Detect Serial Settings function, if the GSM or the
GPRS LED is ON or blinking, you must remove the SIM card, or use the escape command (+++)
on the terminal to disconnect the current connection.
The default parameters are 115200, 8n1, and RTS/CTS flow control.
3-37
OnCell Configurator
