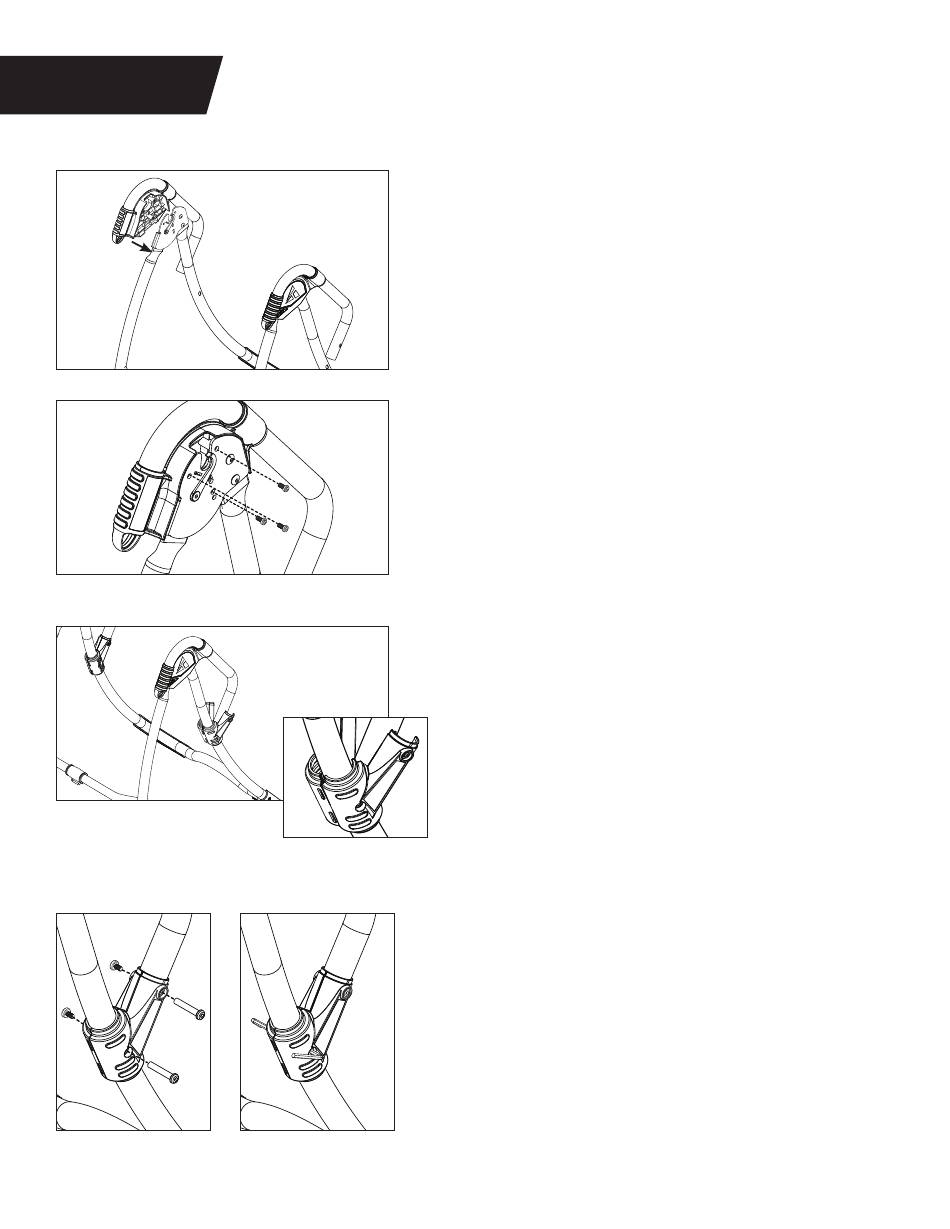

A S S E M B LE H A N D L E S & B R AC KE TS
Figure 7a
Figure 9
Figure 5-6
IMPORTANT: Do not fully tighten the bolts until
all the bolts have been screwed into the Handles
AND the Handle Brackets.
Locate the Right and Left Handles and the
Handle Hardware Kit including (6) Handle Bolts.
Noting Left and Right markings, align the Right
Handle with the Right side of the A-frame and
hand tighten (3) Handle Bolts.
Repeat these steps on the Left side of the
A-Frame to assemble the Left Handle.
Figure 7 - 7a: Locate the Handle Bracket Set,
(4) Handle Bracket Bolts and (4) Handle Bracket
Screws included in the Handle Assembly
Hardware Kit.
Noting Left In/Out and Right In/Out markings,
sandwich the Left Handle Bracket Set over the
area where the Left Handle meets the A-frame
by clamping both sides of the Handle Bracket
Set together.
Figure 8: Align (2) Handle Bracket Bolts through
the Bolt holes in the Handle Bracket Set and
loosely secure the (2) Handle Bracket Screws into
the Bolts using (2) 5mm Allen Wrenches.
Repeat these steps on the Right side to assemble
the Right Handle Bracket Set.
Fully tighten all the Handle Bolts with the 5mm
Allen wrench.
Figure 9: Fully tighten all the Handle Bracket
Bolts and Screws using (2) 5mm Allen wrenches.
