FitSpine LX
Assembly Instructions
Models
LX4, LX5, LX6, LX7, LX8, LX9
For gravity-assisted stretching and decompression
5
To download and print the Teeter
FitSpine LX
instructions, visit the
™
Product Manuals page at teeter.com.
* Specifications may vary from this image and are
subject to change without notice.
EN

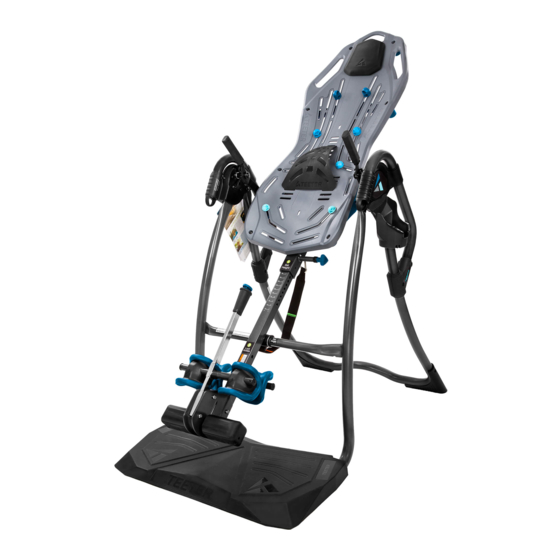

The LX4 is shown here. Your actual model may vary.
Series
TM
FULL
YEAR
I created Teeter so people could
live healthier, more active lives.
-Roger Teeter
founder & innovator
NEW!
Follow along with
your smartphone
to make assembly
even easier!
Advertisement
Table of Contents
Related Manuals for Teeter FitSpine LX4
Summary of Contents for Teeter FitSpine LX4
- Page 1 Assembly Instructions Models LX4, LX5, LX6, LX7, LX8, LX9 For gravity-assisted stretching and decompression FULL YEAR To download and print the Teeter FitSpine LX instructions, visit the ™ Product Manuals page at teeter.com. I created Teeter so people could live healthier, more active lives.
-
Page 2: Table Of Contents
Assembly Steps........6 – 11 Get the Most out of Your Teeter ..... . 6 Misassembly Check. -
Page 3: Important Safety Instructions
• DO NOT store the inversion table upright if children are present. Fold and lay the table on the floor. DO NOT store outdoors. • DO NOT use aggressive movements, or use weights, elastic bands, any other exercise or stretching device or non-Teeter attachments ®... -
Page 4: Parts For Assembly
Parts for Assembly Parts vary by model (noted) and are not shown to scale. Hardware drawings located on the insert inside each Hardware Kit. ITEM NO. ITEM NAME ITEM NO. ITEM NAME A-Frame Base Assembly FitSpine Table Bed Assembly ™ EX1100 A-Frame EX1300... -
Page 5: Understanding Your Inversion Table
Understanding Your Inversion Table Before reading further, study the drawing below to familiarize yourself with the important components of your Teeter Inversion Table. Located on back of table bed. The LX4 is shown here. Your actual model may vary. Identifying Parts and Components... -
Page 6: Safety Warning Labels & Product Specifications
This drawing indicates the locations of the warning labels found on your product. If a label is missing, illegible or is removed, contact Teeter Customer Service to request a complimentary replacement label. Note: Image and labels below not shown at actual size. -
Page 7: Before Beginning Assembly
For step-by-step, 3D interactive instructions, download BILT (a FREE mobile app) to your smartphone to follow along. Simply download the BILT app by scanning the QR code below and then search for your model (Teeter LX4, LX5, LX6, LX7, LX8, LX9) within the BILT app to get started! -
Page 8: Assembly Steps
For All Models STEP 1 Assemble Boarding Platform IMPORTANT: Do not fully tighten the bolts until all the bolts FIGURE 1 have been screwed in and the platform is properly aligned. • Remove the A-frame from the box and place it on its back side so that the open ends of the A-Frame are pointing up (Figure 1). - Page 9 STEP 2 Assemble Handles and Handle Brackets FIGURE 5 NOTE: If your Teeter came with an optional Caddy (included with the LX9), stop here and open the Caddy packaging. Follow the included instructions to attach the Caddy to the Left Handle before assembling the Handles to the A-Frame.
- Page 10 For All Models STEP 3 Assemble Roller Hinges to Table Bed NOTE: Some models come with Traction Handles pre-assembled FIGURE 10 to the Roller Hinges. The assembly instructions detailed below still apply. UNLOCKED LOCKED • Familiarize yourself with the 3-Hole Roller Hinge and Cam Lock terms (Figure 10).
- Page 11 For All Models STEP 4 Assemble Table Bed to A-Frame • Face the front of the A-Frame where the Crossbar is located FIGURE 15 (Figure 15). • Grasp both Roller Hinges, right above the Cam Lock, and lift the Table Bed. Allow the top of the Table Bed to rotate toward the floor so that the back of the Table Bed is now facing you and the REAR top of the Table Bed is in front of the Crossbar (Figure 16).
- Page 12 For All Models STEP 5 Assemble Main Shaft to Table Bed • Your model’s Main Shaft may differ from what is shown in the FIGURE 20 figures, however the assembly instructions remain the same. • Facing the front of the A-Frame, hold the Main Shaft in your left hand with the height markings facing up.
- Page 13 For All Models STEP 6 Attach Angle Tether & Head Pillow Attach Angle Tether FIGURE 24 • The tether will come pre-assembled to the A-Frame. • Unfold the adjustable tether and clip it to the U-Bar on the underside of the Table Bed (Figure 24). •...
-
Page 14: Misassembly Check
For All Models Misassembly Check WARNING If your Teeter Inversion Table looks like either of these images, your inversion table has been misassembled and is unfit for use. Improper assembly could result in serious injury or death! Image B Image A Go back to Step 4 for instruction. -
Page 15: Before Inverting
Ensure Owner’s Manual is Attached FIGURE 26 The Owner’s Manual contains important information on how to use your Teeter Inversion Table, including how to personalize the user settings, properly secure and release the Ankle Lock System, and test and adjust the rotation control. -
Page 17: Warranty Terms & Registration
Under no circumstances shall Teeter, or any other party involved in the sale of this product, have any liability for incidental or consequential damage arising from breach of an express or implied warranty on any Teeter product. - Page 20 Tel. +49 511 62628630 Teeter Decompression Devices are multiple user, reusable devices for home use, intended to provide traction to the spine while stretching the para-spinal muscles and soft tissues. The devices provide non-powered traction and are meant for use by adults.
Need help?
Do you have a question about the FitSpine LX4 and is the answer not in the manual?
Questions and answers
