Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

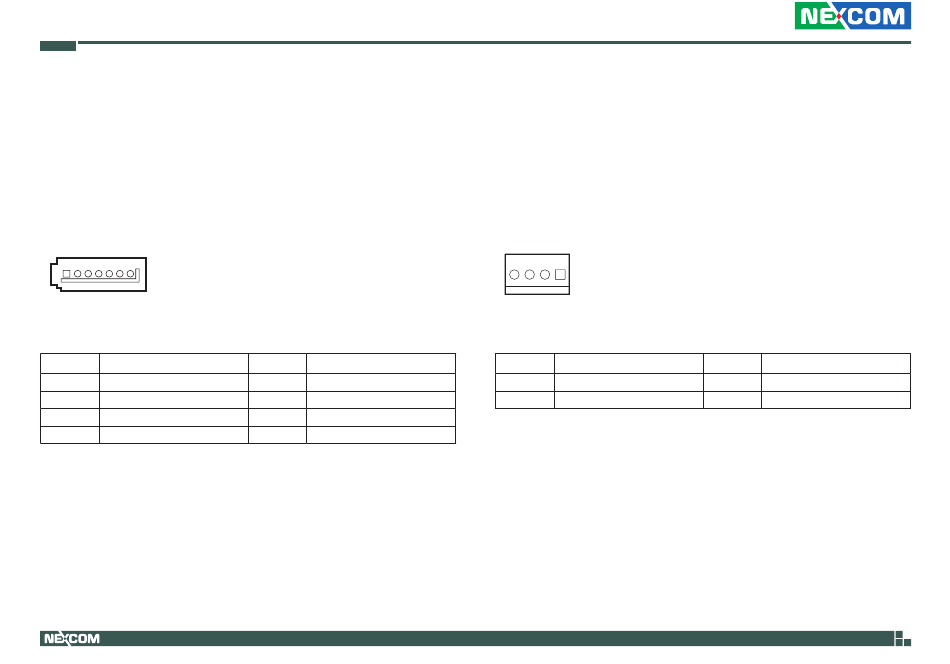

SATAII Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA1
1 7
Pin Definition
1 GND
3 TXN
5 RXN
7 GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 TXP
4 GND
6 RXP

SATA Power Connector

Connector type: 1x4 4-pin header
Connector location: PWROUT1
4 1
Pin Definition
1 +5V
3 GND
15
Pin Definition
2 GND
4 +12V
