Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

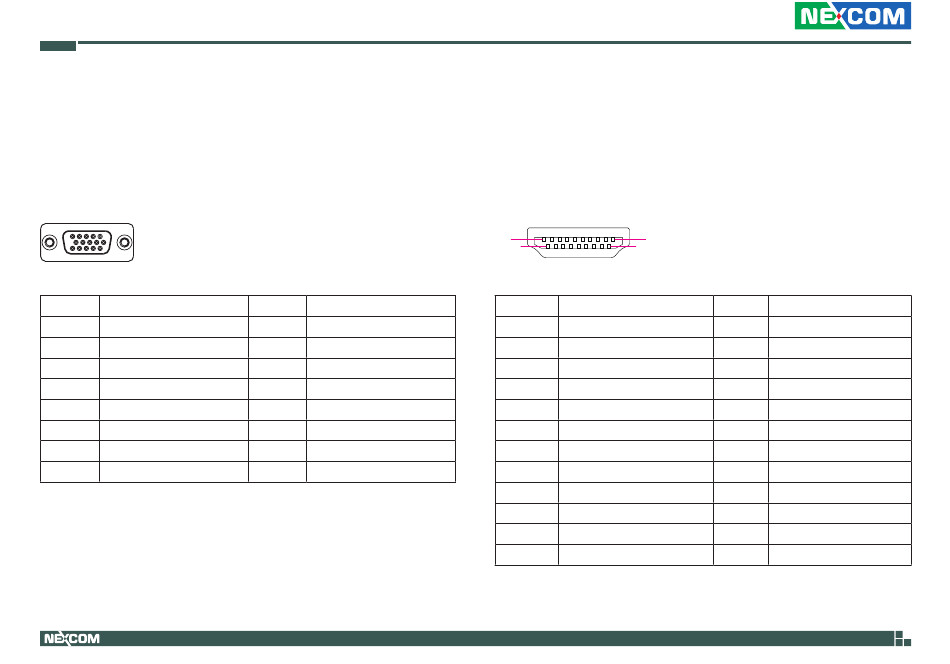

VGA

Connector type: DB-15 port, 15-pin D-Sub
Connector location: VGA1
5 1
15 11
Pin Definition
1 RED_VGA
3 BLUE_VGA
5 GND
7 GND
9 VCC5
11 NC
13 HSYNC_VGA
15 DDCCLK_VGA
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GREEN_VGA
4 NC
6 VGADET
8 GND
10 GND
12 DATA_VGA
14 VSYNC_VGA

HDMI

Connector type: HDMI port
Connector location: CN8
19
20 2
Pin Definition
1 DATA2P
3 DATA2N
5 GND
7 DATA0P
9 DATA0N
11 GND
13 NC
15 SCL CLK
17 GND
19 HPD
MH2 GND
MH4 GND
12
1
Pin Definition
2 GND
4 DATA1P
6 DATA1N
8 GND
10 CLKP
12 CLKN
14
16 SCL Data
18 VCC5
MH1 GND
MH3 GND
NC
