Chapter 2: Jumpers and Connectors

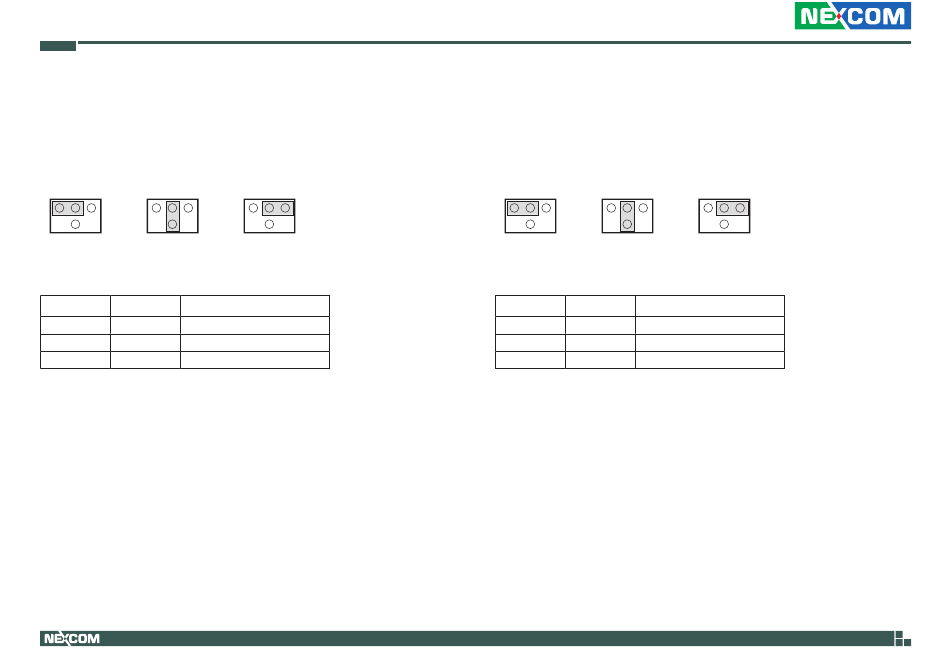

COM2 Header Pin-9 Function Select

Connector type: 2x3 6-pin header
Connector location: JP5
2 6 2 6
1 5 1 5
2-4 Short 3-4 Short
Pin Status
2-4 Short
3-4 Short
4-6 Short
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
2 6
1 5
4-6 Short
Definition
RI = RS232
RI = 5V
RI = 12V

COM1 Header Pin-9 Function Select

Connector type: 2x3 6-pin header
Connector location: JP6
2 6 2
1 5 1
2-4 Short 3-4 Short
Pin Status
2-4 Short
3-4 Short
4-6 Short
12
6 2 6
5 1 5
4-6 Short
Definition
RI = RS232
RI = 5V
RI = 12V
