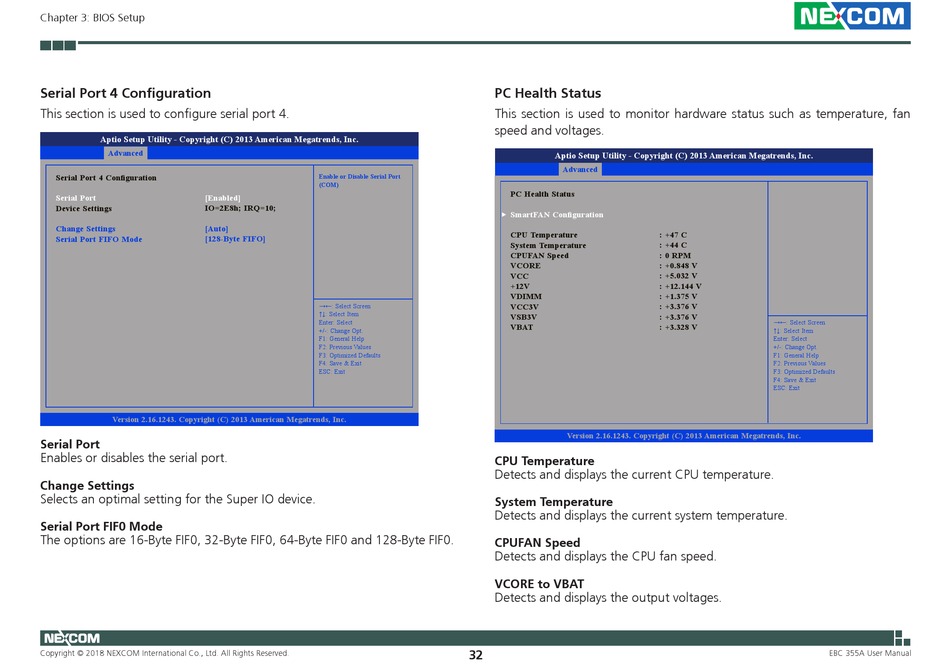

Chapter 3: BIOS Setup
Serial Port 4 Configuration
This section is used to configure serial port 4.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 4 Configuration
Serial Port [Enabled]
Device Settings IO=2E8h; IRQ=10;
Change Settings [Auto]
Serial Port FIFO Mode [128-Byte FIFO]
Version 2.16.1243. Copyright (C) 2013 American Megatrends, Inc.
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Serial Port FIF0 Mode
The options are 16-Byte FIF0, 32-Byte FIF0, 64-Byte FIF0 and 128-Byte FIF0.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
PC Health Status
This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
CPU Temperature
Detects and displays the current CPU temperature.
System Temperature
Detects and displays the current system temperature.
CPUFAN Speed
Detects and displays the CPU fan speed.
VCORE to VBAT
Detects and displays the output voltages.
32
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
PC Health Status
SmartFAN Configuration

CPU Temperature : +47 C
System Temperature : +44 C
CPUFAn Speed : 0 RPM
VCORE : +0.848 V
VCC : +5.032 V
+12V : +12.144 V
VDIMM : +1.375 V
VCC3V : +3.376 V
VSB3V : +3.376 V
VBAT : +3.328 V
Version 2.16.1243. Copyright (C) 2013 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
