Chapter 2: Jumpers and Connectors

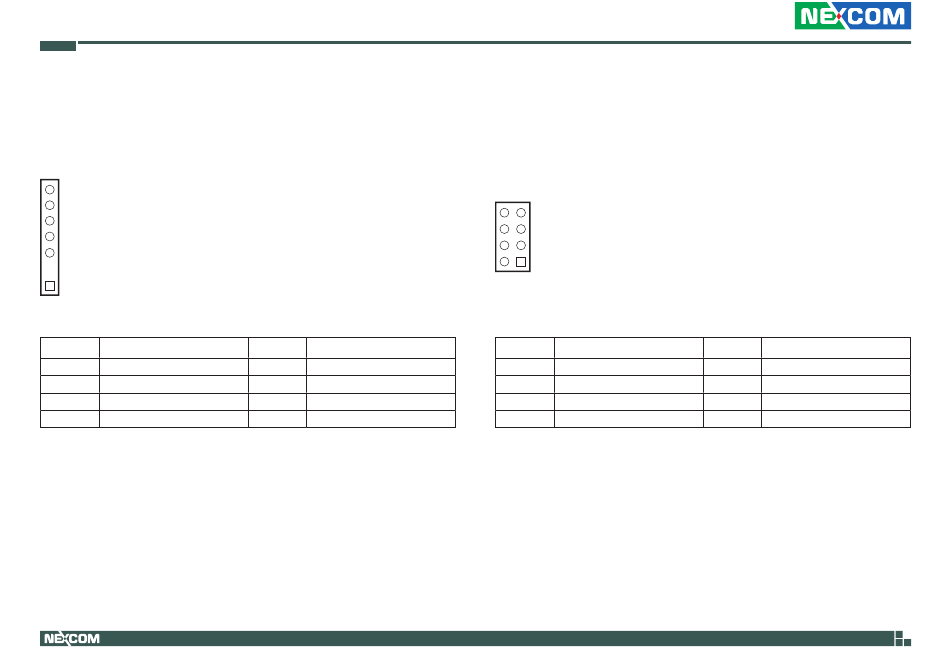

PS/2 Keyboard & Mouse Header
Connector type: 1x7 7-pin header
Connector location: PS2KBMS
7
1
Pin Definition
1 VCC
3 KB_DATA
5 GND
7 MS_DATA
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
4 KB_CLK
6 MS_CLK

Front Panel Header

Connector type: 2x4 8-pin header
Connector location: FP
8 7
2 1
Pin Definition
1 HDDLED+
3 HDDLED-
5 RSTSW
7 GND
20
Pin Definition
2 PWRLED+
4 PWRLED-
6 PWRBTN
8 GND
