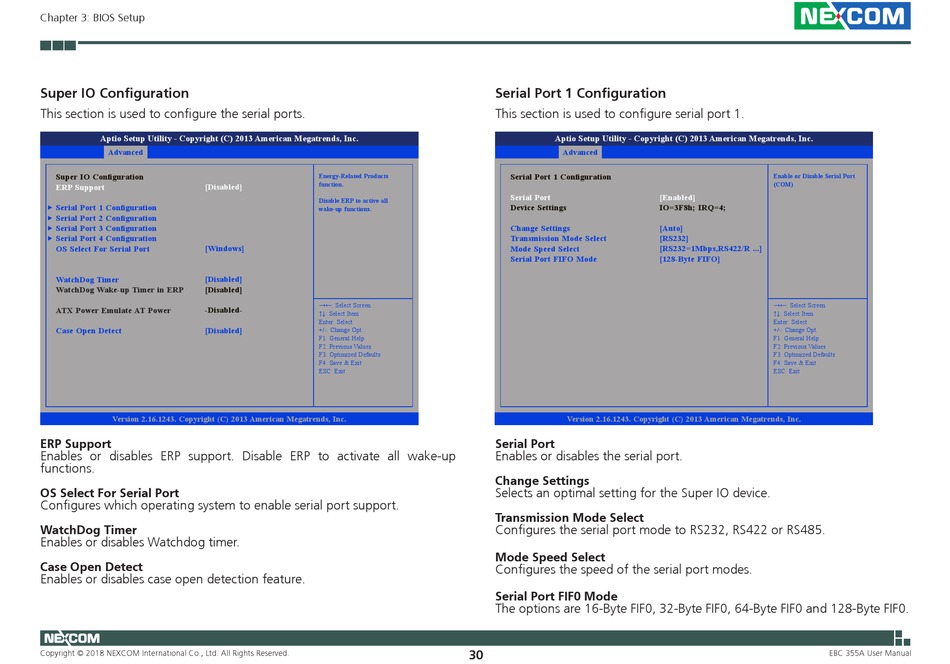

Chapter 3: BIOS Setup
Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Super IO Configuration
ERP Support [Disabled]
Serial Port 1 Configuration

Serial Port 2 Configuration

Serial Port 3 Configuration

Serial Port 4 Configuration

OS Select For Serial Port [Windows]
WatchDog Timer [Disabled]
WatchDog Wake-up Timer in ERP [Disabled]
ATX Power Emulate AT Power -Disabled-
Case Open Detect [Disabled]
Version 2.16.1243. Copyright (C) 2013 American Megatrends, Inc.
ERP Support
Enables or disables ERP support. Disable ERP to activate all wake-up
functions.
OS Select For Serial Port
Configures which operating system to enable serial port support.
WatchDog Timer
Enables or disables Watchdog timer.
Case Open Detect
Enables or disables case open detection feature.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Energy-Related Products
function.
Disable ERP to active all
wake-up functions.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Transmission Mode Select
Configures the serial port mode to RS232, RS422 or RS485.
Mode Speed Select
Configures the speed of the serial port modes.
Serial Port FIF0 Mode
The options are 16-Byte FIF0, 32-Byte FIF0, 64-Byte FIF0 and 128-Byte FIF0.
30
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
[Enabled]
Serial Port
Device Settings IO=3F8h; IRQ=4;
Change Settings [Auto]
Transmission Mode Select [RS232]
Mode Speed Select [RS232=1Mbps,RS422/R ...]
Serial Port FIFO Mode [128-Byte FIFO]
Version 2.16.1243. Copyright (C) 2013 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
