Chapter 2: Jumpers and Connectors

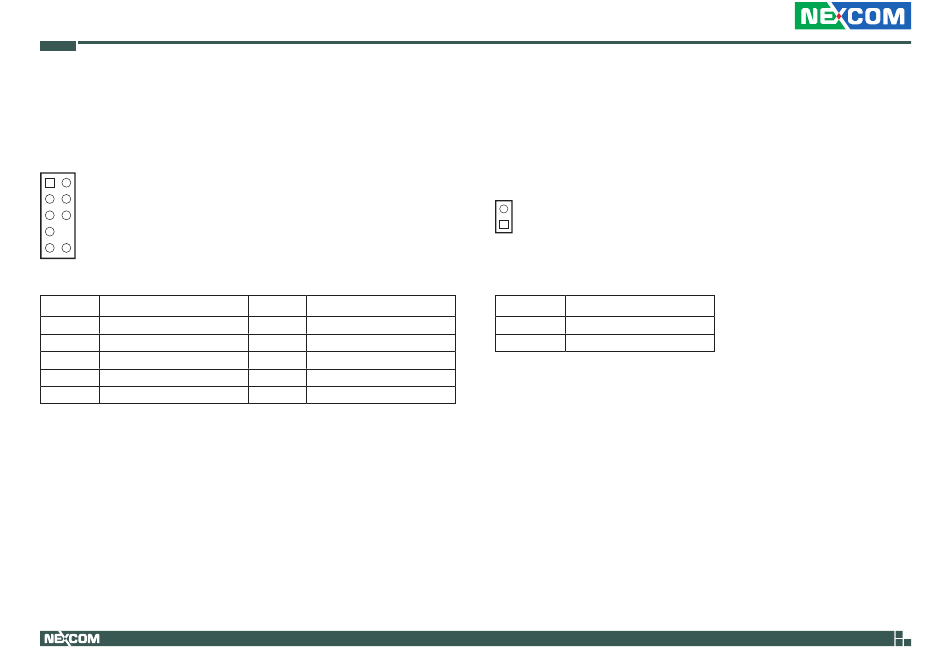

Front Panel Audio: Line-out and Mic-in

Connector type: 2x5 10-pin header
Connector location: FP_AUDIO
1 2
9 10
Pin Definition
1 MIC-R
3 MIC-L
5 Lineout-R
7 NC
9 Lineout-L
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 NC
6 NC
8 KEY
10 NC

SPDIF Out Header

Connector type: 1x2 2-pin header
Connector location: SPDIFOUT
2
1
Pin Settings
1 SPDIFOUT
2 GND
