Chapter 2: Jumpers and Connectors

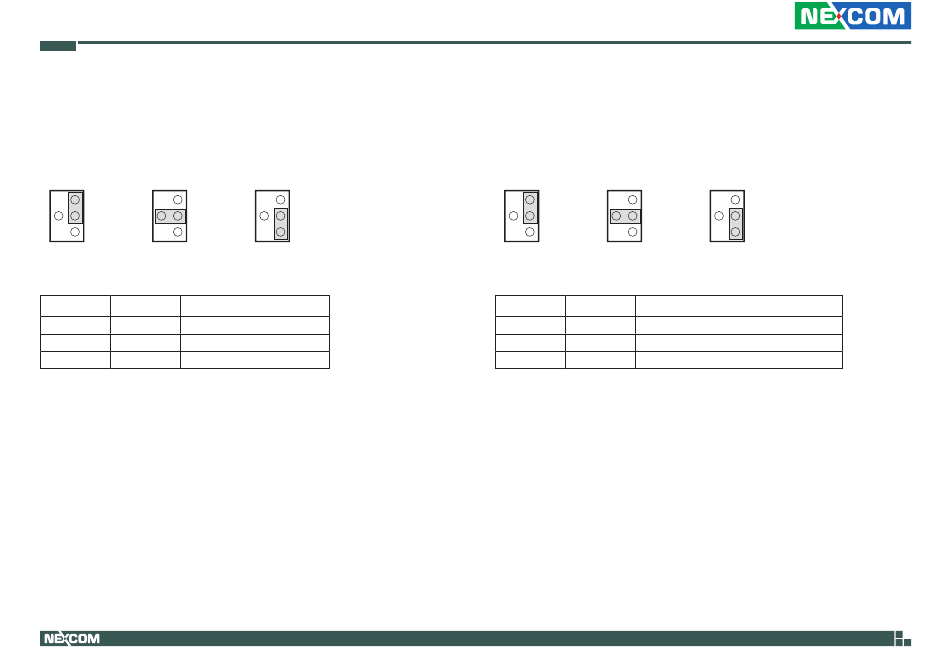

eDP LCD VCC 3.3V/5V/12V Select
Connector type: 2x3 6-pin header
Connector location: JP8
1
2
1
2
5
6
5
6
2-4 Short
3-4 Short
Pin
Status
2-4
Short
eDP LCD VCC = 3.3V
3-4
Short
eDP LCD VCC = 5V
4-6
Short
eDP LCD VCC = 12V
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
1
2
5
6
4-6 Short
Definition
eDP Backlight VCC 3.3V/5V/Adapter VCC Select
Connector type: 2x3 6-pin header
Connector location: JP9
1
2
1
2
5
6
5
6
2-4 Short
3-4 Short
Pin
Status
2-4
Short
3-4
Short
4-6
Short
eDP Backlight VCC = Adapter VCC
10
1
2
5
6
4-6 Short
Definition
eDP Backlight VCC = 5V
eDP Backlight VCC = 12V
EBC 355A User Manual
