Chapter 2: Jumpers and Connectors

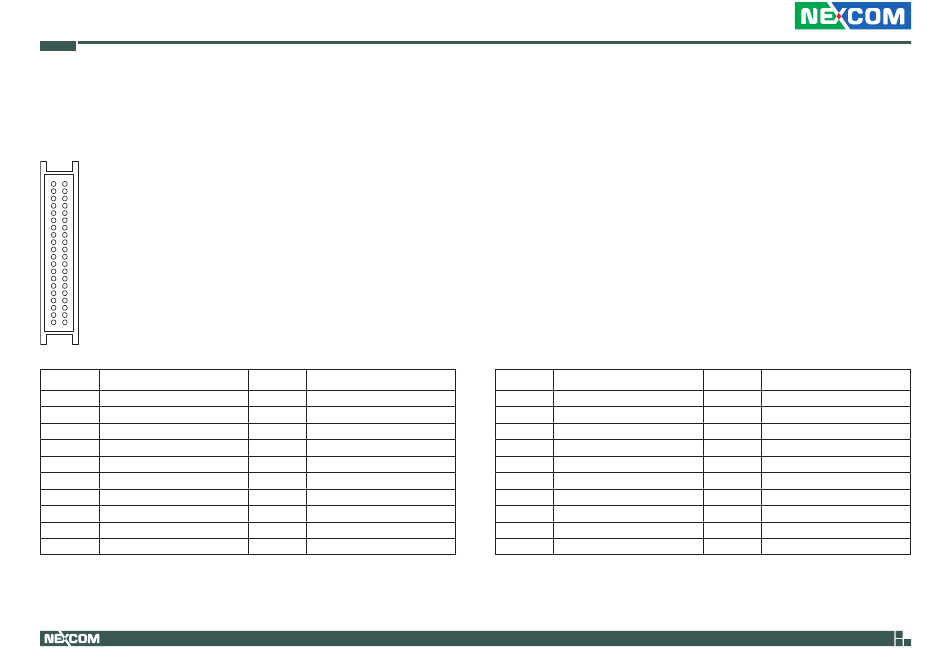

eDP Header

Connector type: 2x20 40-pin header
Connector location: LVDS
1 21
20 40
Pin Definition
1 NC
3 Lane3_N
5 GND
7 Lane2_P
9 Lane1_N
11 GND
13 Lane0_P
15 AUX_CH_P
17 GND
19 LCD_VCC
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 Lane3_P
6 Lane2_N
8 GND
10 Lane1_P
12 Lane0_N
14 GND
16 AUX_CH_N
18 LCD_VCC
20 LCD_VCC
Pin Definition
21 NC
23 GND
25 GND
27 HPD
29 GND
31 GND
33 BL_PWM_DIM
35 NC
37 BL_PWR
39 BL_PWR
22
Pin Definition
22 NC
24 GND
26 GND
28 GND
30 GND
32 BL_ENABLE
34 NC
36 BL_PWR
38 BL_PWR
40 NC
