Electrical Box - Daikin FTXM35K3V1B Removal Procedure

Electrical Box

5. Electrical Box
Warning
Step
Remove the screw and
1
remove the service
cover.
2 Remove the screw and
remove the wire fixture.
Remove the 4 screws
3
of the terminal board
and disconnect the
connecting wires.
Unfasten the 3 hooks
4
and remove the PCB
box cover.
6
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

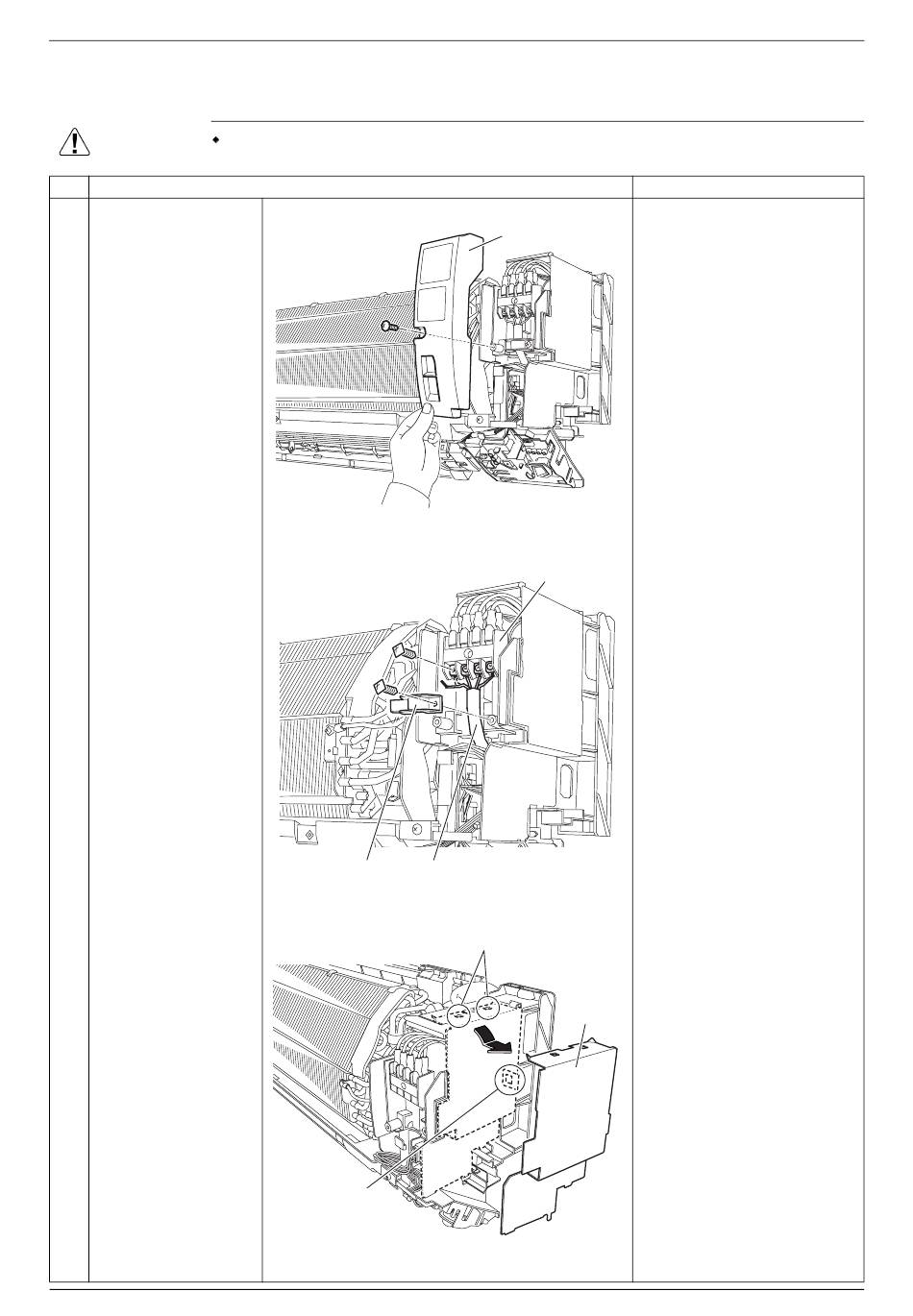

Procedure
Wire fixture
Hook
Service cover
(R19032)
Terminal board
Connecting wire
(R19033)
Hook
PCB box
cover
(R19034)
Si041259EA
Points
Removal Procedure
