Si001277

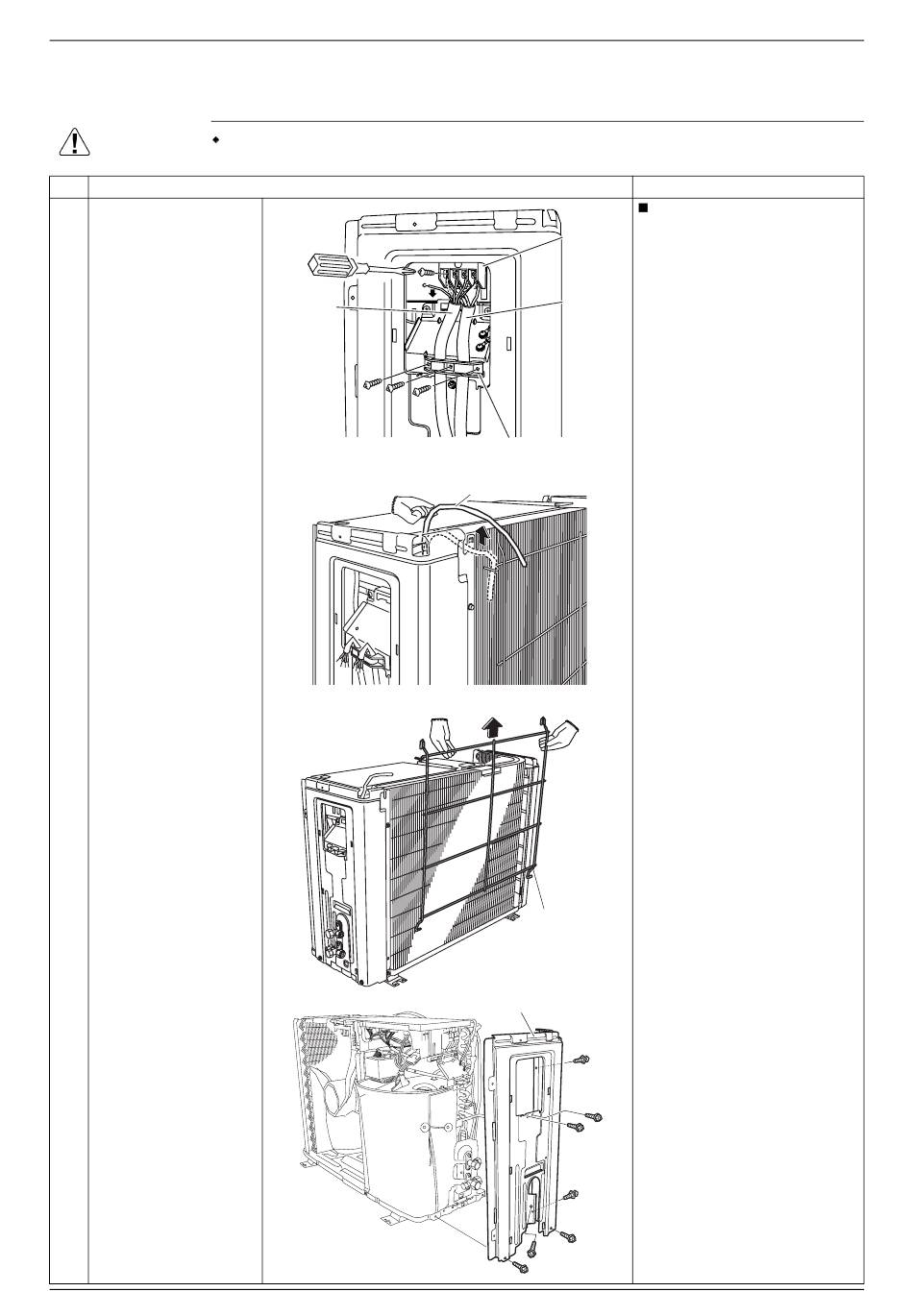

2. Electrical Box
Warning
Step
Remove the 3 screws
1
and remove the wire
fixture.
Remove all the screws
2
to disconnect the power
supply cables and the
connecting wires.
Release the outdoor
3
temperature thermistor.
Lift up the protection
4
net and remove it.
5
Remove the 7 screws
and remove the right
side panel.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Connecting
wire
Outdoor temperature thermistor
Terminal
board
Power
supply
cable
Wire fixture
(R18666)
(R12193)
Protection
net
(R18894)
Right side panel
(R12217)
Electrical Box
Points
When reassembling, fasten
the wires with screws on the
terminal board.
