Daikin FTXM35K3V1B Removal Procedure page 11

Si041259EA

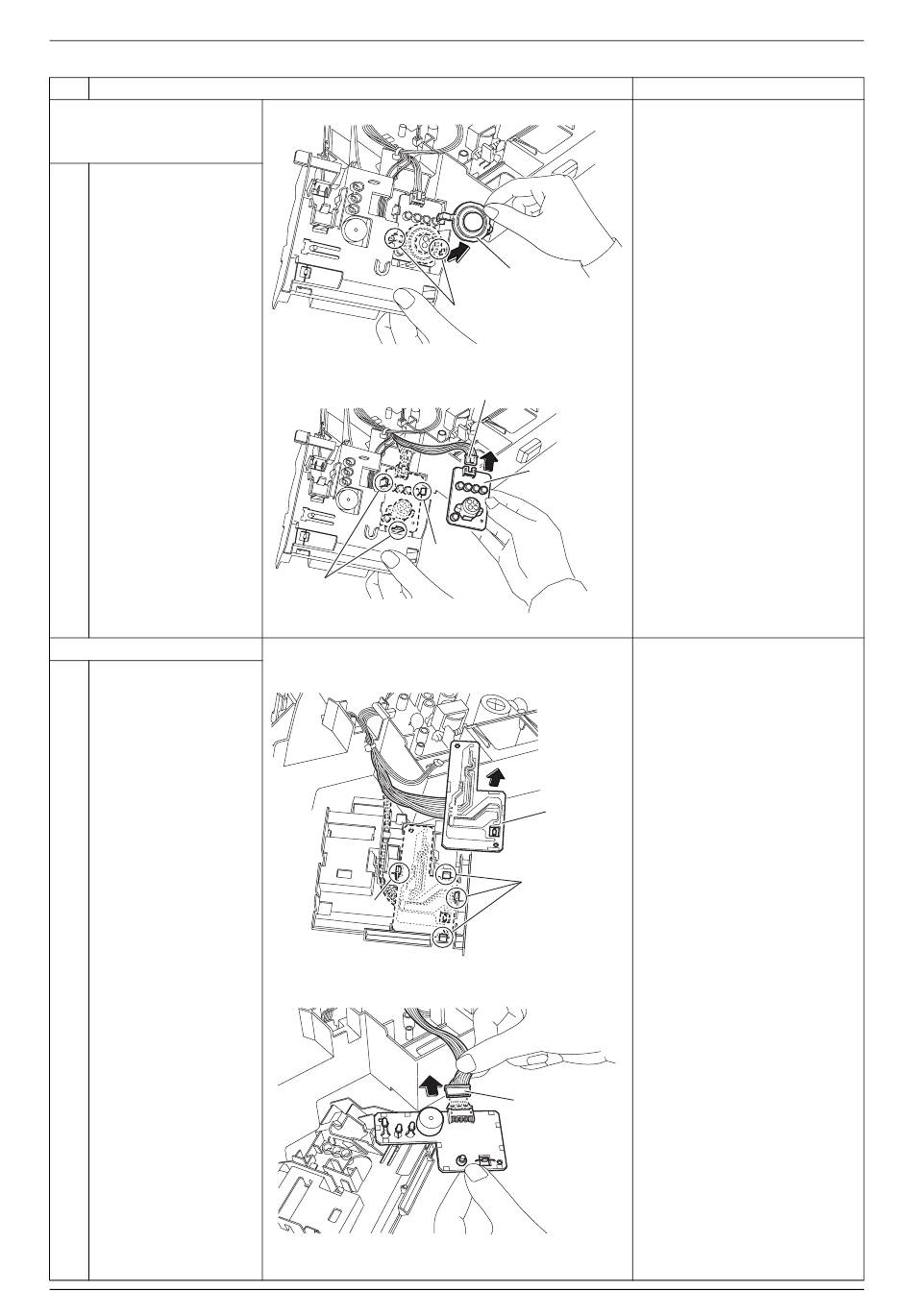

Step
2. Remove the
INTELLIGENT EYE
sensor PCB.
Unfasten the 2 hooks
1
and remove the shield
plate.
Unfasten the 3 hooks
2
and remove the
INTELLIGENT EYE
sensor PCB.
Disconnect the
3
connector [S26].
3. Remove the display PCB.
1 Turn over the signal
receiver unit.
Unfasten the 4 hooks
2
and remove the display
PCB.
Disconnect the
3
connector [S49].
Removal Procedure
Procedure
Hook
Hook
Hook
Hook
Shield plate
(R19040)
[S26]
[S26]: control PCB
INTELLIGENT
EYE sensor
PCB
(R19041)
Display PCB
Hook
(R19042)
[S49]: control PCB
[S49]
(R19043)
PCBs
Points
