Daikin FTXM35K3V1B Removal Procedure page 12

PCBs
Step

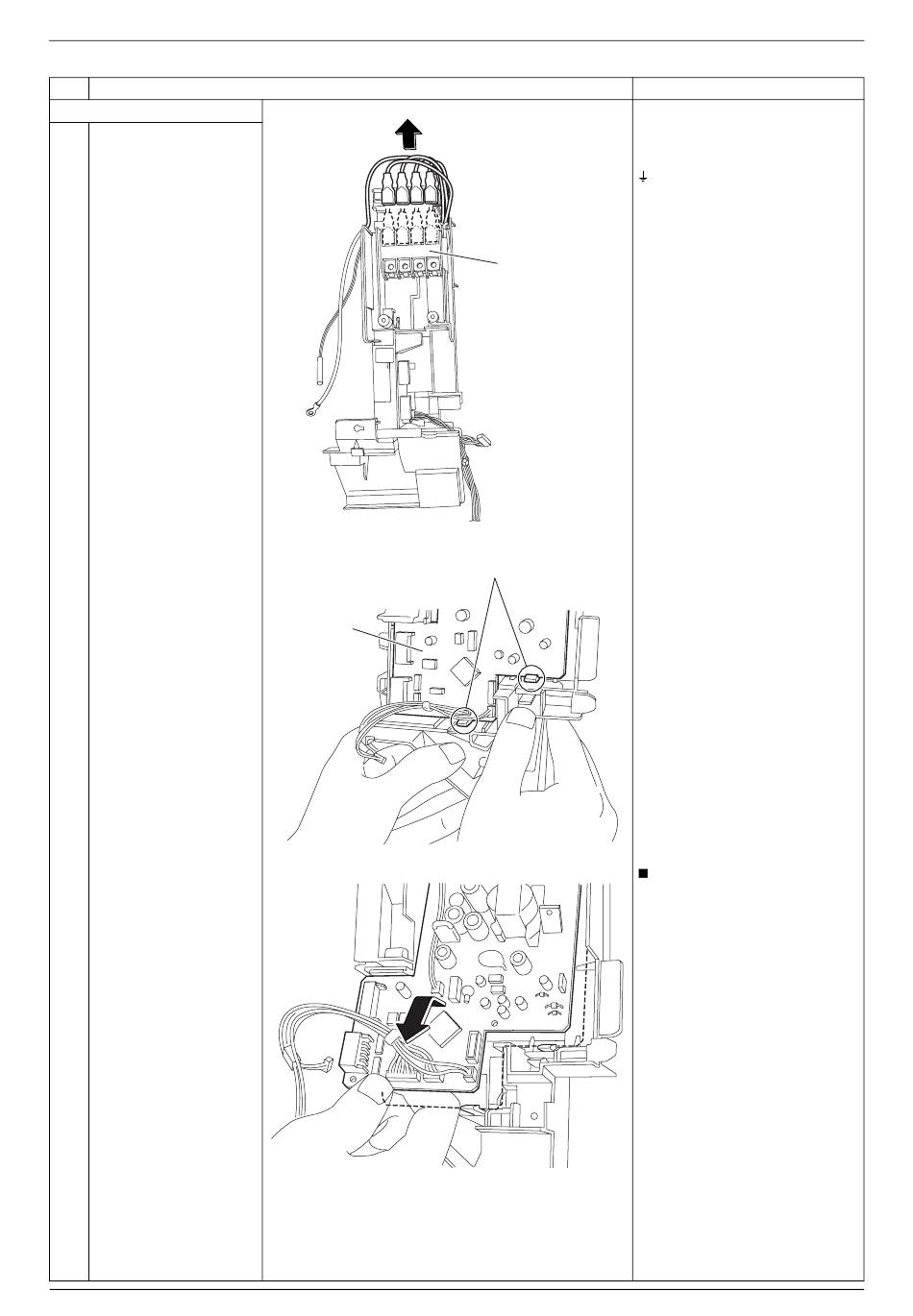

4. Remove the control PCB.
Disconnect all the
1
terminals from the
terminal board.
Unfasten the 2 lower
2
hooks of the control
PCB.
3 Lift up the bottom of the
control PCB and pull it
out.
10
Procedure
Control PCB
1: black (front)
2: white (front)
3: red (front)
Terminal board
(R19044)
Hook
(R19171)
(R8098)
Si041259EA
Points
: green (front)
green/yellow (back)
The control PCB is also fixed
by 2 upper hooks. When
reassembling, be sure to fit
all the 4 hooks.
Removal Procedure
