Daikin FTXM35K3V1B Removal Procedure page 14

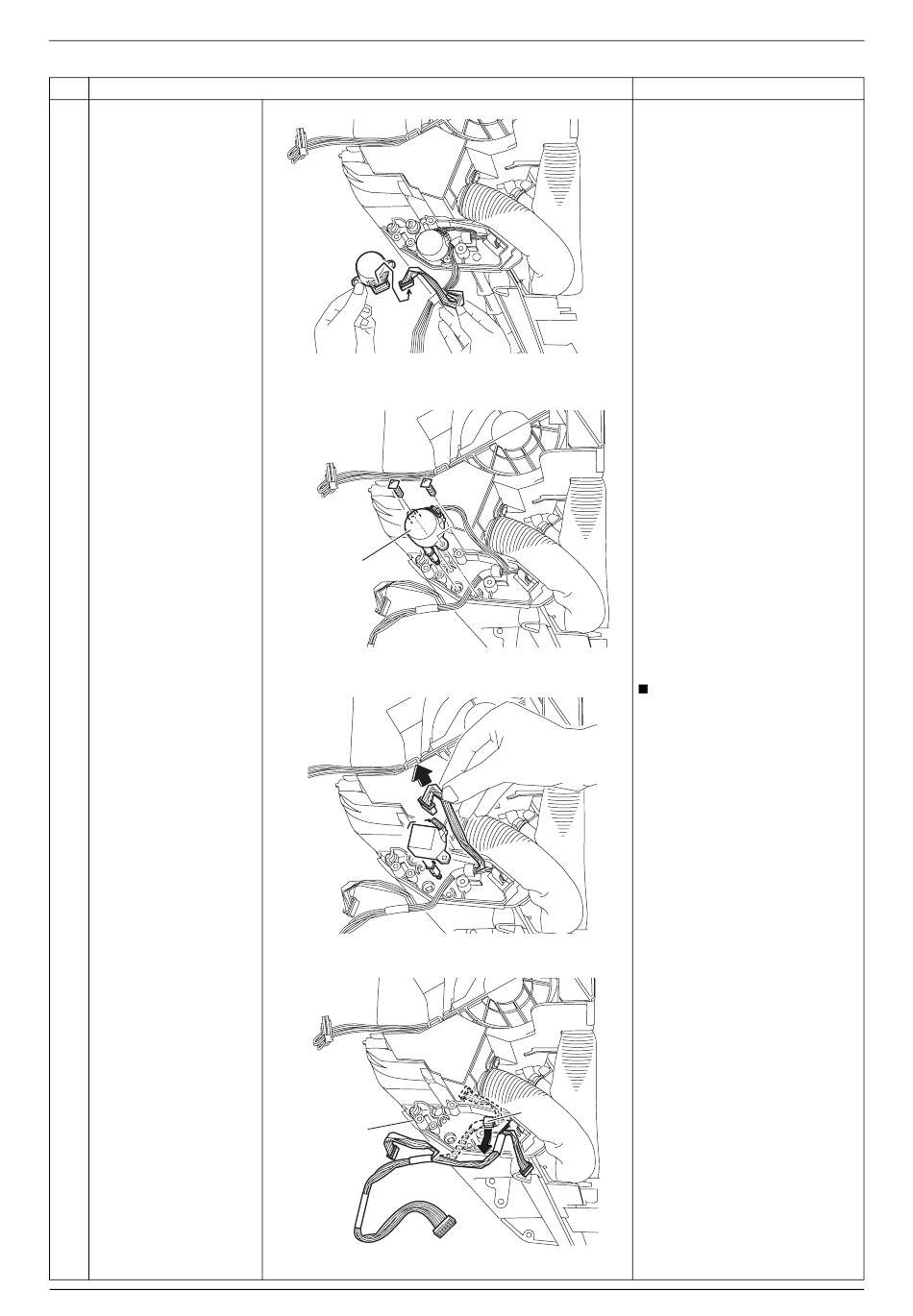

Swing Motors
Step
4 Disconnect the
connector (green) from
the swing motor.
Remove the 2 screws
5
and remove the swing
motor for horizontal
blade (large).
6 Disconnect the
connector (red) from
the swing motor.
7 Release the swing
motor harness from the
hook of the cover link
(1).
12
Procedure
Swing motor
for horizontal
blade (large)
Cover link (1)
(R19048)
(R19049)
When reassembling, mount
the swing motor for
horizontal blade (large) first.
(connector: red)
Next, mount the swing motor
for horizontal blade (small).
(connector: green)
(R19050)
Hook
(R19051)
Si041259EA
Points
Removal Procedure
