Pcbs - Daikin FTXM35K3V1B Removal Procedure

PCBs

6. PCBs
Warning
Step

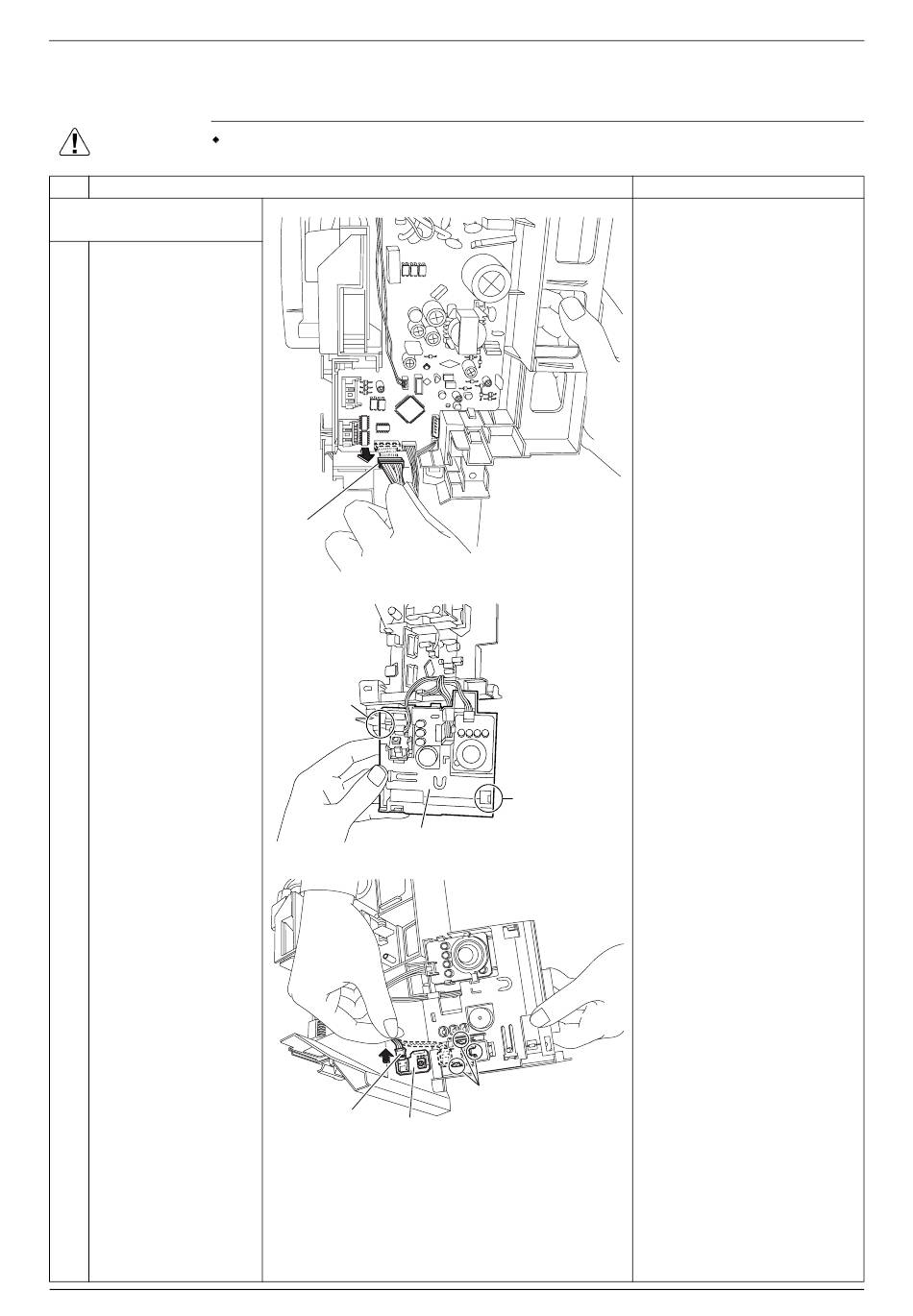

1. Remove the signal
receiver PCB.
Disconnect the
1
connector [S46].
Unfasten the 2 hooks
2
and remove the signal
receiver unit.
Unfasten the 3 hooks
3
and remove the signal
receiver PCB.
Disconnect the
4
connector [S48].
8
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
[S46]
Hook
Signal receiver unit
[S48]
Signal receiver PCB
[S46]: display PCB
(R19038)
Hook
(R19152)
[S48]: control PCB
Hook
(R19039)
Si041259EA
Points
Removal Procedure
