Front Grille - Daikin FTXM35K3V1B Removal Procedure

Front Grille

3. Front Grille
Warning

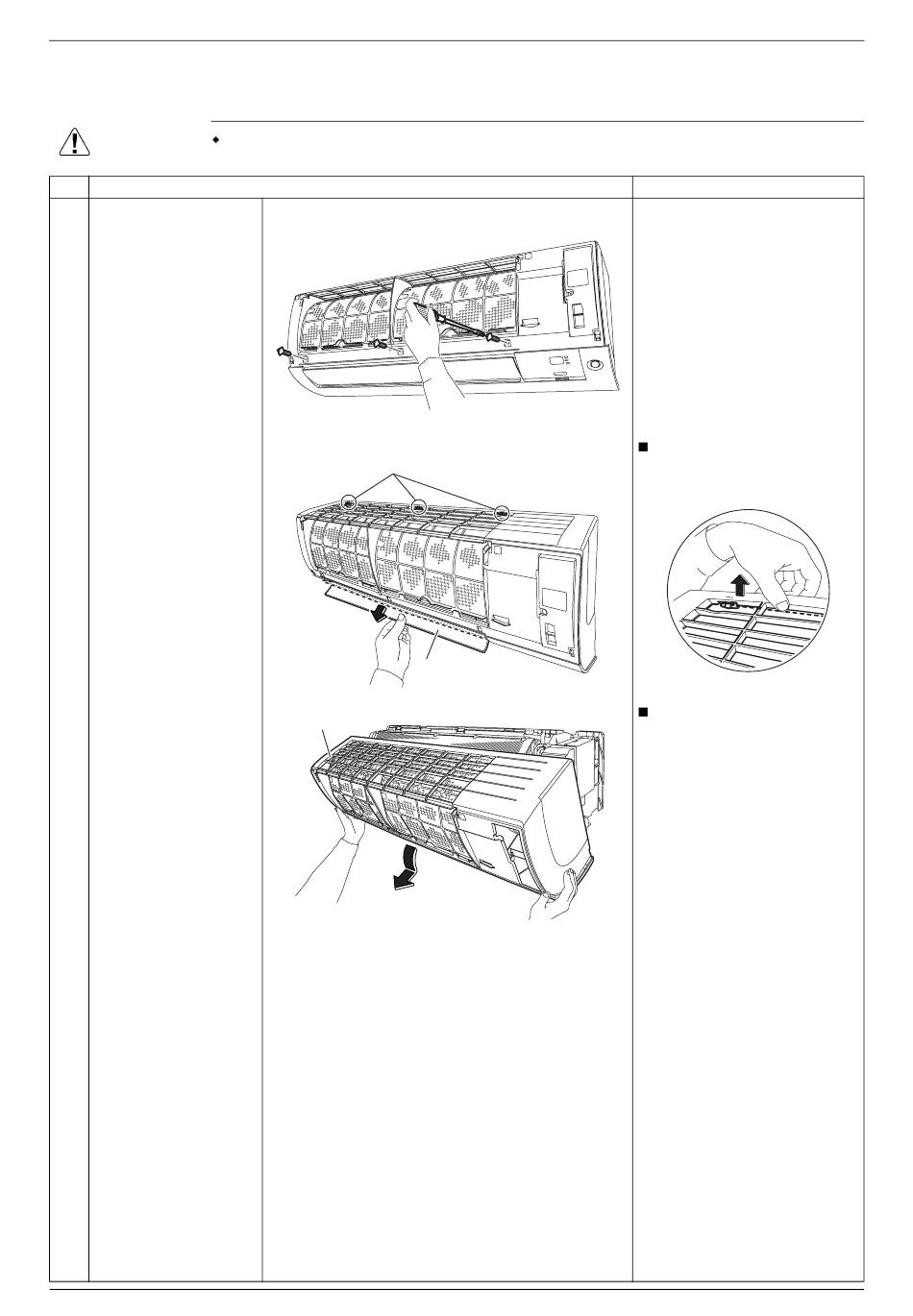

Step
Remove the 3 screws.
1
Open the horizontal
2
blade and unfasten the
3 hooks at the top.
Pull out the upper part
3
of the front grille and lift
up the lower part, and
then remove the front
grille.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Front grille
(R19024)
Horizontal blade
(R19025)
(R19027)
Si041259EA
Points
The convex marks (...) on
the front panel indicate the
position of the hooks.
(R19026)
When reassembling, make
sure that the 3 hooks are
fastened as they were.
Removal Procedure
