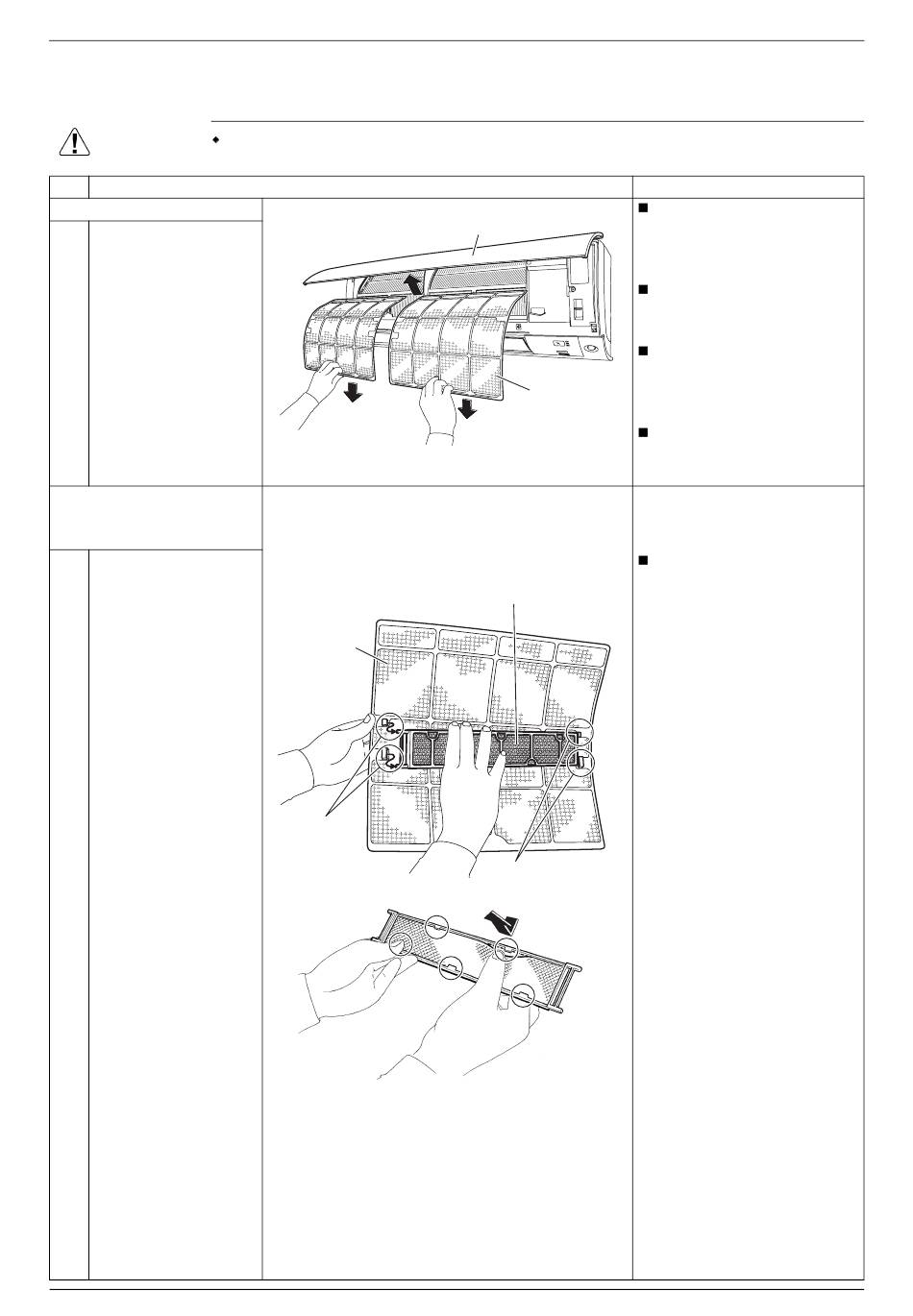

Air Filters - Daikin FTXM35K3V1B Removal Procedure

Air Filters

1. Air Filters
Warning
Step
1. Remove the air filter.
Open the front panel.
1
Pull out the air filter
2
downward and remove
it.
Remove the other air
3
filter in the same way.
2. Remove the Titanium
apatite photocatalytic air-
purifying filters.
Remove the Titanium
1
apatite photocatalytic
air-purifying filter ASSY
by unfastening the 4
projections from the
back of the filter.
2 Remove the Titanium
apatite photocatalytic
air-filter from its frame.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Air filter
Projection
Front panel
Air filter
(R19019)
Titanium apatite photocatalytic
air-purifying filter ASSY
Projection
(R19020)
(R13174)
Si041259EA
Points
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
"FRONT" mark faced up.
The air filter can be set
easily by inserting it along
the guides.
Be sure to insert the hooks
(at 2 lower positions) when
installing the air filter.
The right and left filters are
interchangeable.
Removal Procedure
