Swing Motors - Daikin FTXM35K3V1B Removal Procedure

Si041259EA

7. Swing Motors

Warning
Caution
Step

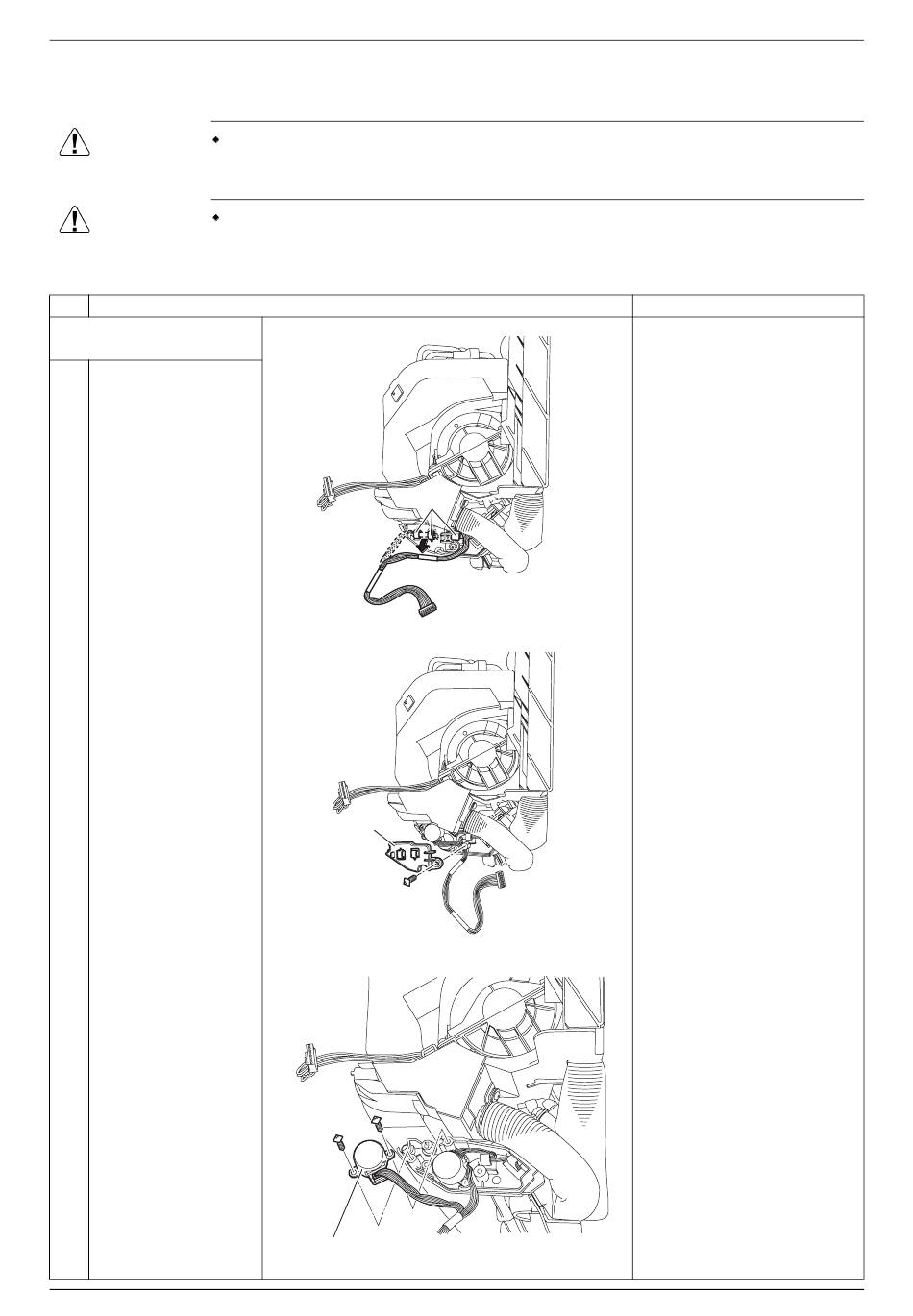

1. Remove the swing motor
for horizontal blades.
Release the harness for
1
the swing motors from
the 3 hooks.
2 Remove the screw and
remove the cover link
(2).
3 Remove the 2 screws
and remove the swing
motor for horizontal
blade (small).
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
When reassembling, do not confuse the installing order of the 2 motors for horizontal
blades and the colors of the connectors.
If you set the connectors or motors opposite, the horizontal blades do not move
smoothly or noise may be heard.
Procedure
Cover link (2)
Swing motor for
horizontal blade (small)
Hook
(R19045)
(R19046)
(R19047)
Swing Motors
Points
11
