Sproutwell SMALL GAZEBO Assembly Instructions Manual page 9

QTY
NO
PART
L19A 2
L19B
1
L20
1
B
4
W07 4
Z01
10
M4.2X16
Y10
1
1
W06

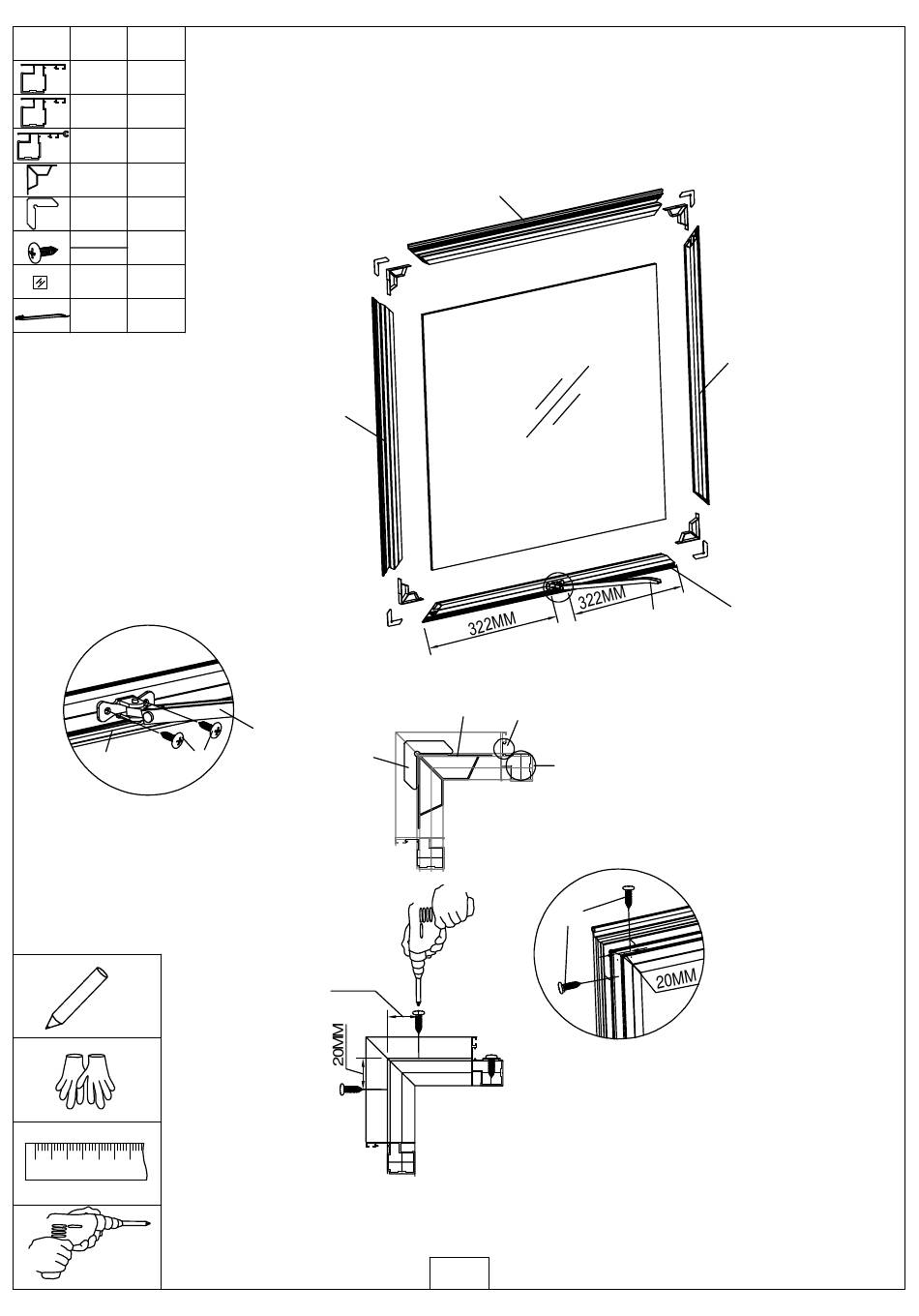

Install Vent Arm W06 in the middle
of L19B, 322mm from each end.
Z01
L19B
0 1 2 3
Vent Assembly
W07
B
L19A
B
W07
W06
W07
20MM
L20
Y10
Screws position
B
Screws position
Z01
Insert Connector B & W07 into each end of
the profiles L19A & L19B & L20, and then
mark the distance from each end about 20MM.
Lastly, secure them with screws Z01.
* Please ensure there is no gaps between each profile.
9
W07
B
L19A
B
W07
L19B
W06
